Acura TL (2013 – 2014) – wiring diagrams – key lamp

Acura TL (2013 – 2014) – wiring diagrams – key lamp

Year of productions:  2013, 2014

Key lamp

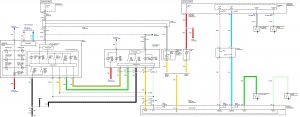

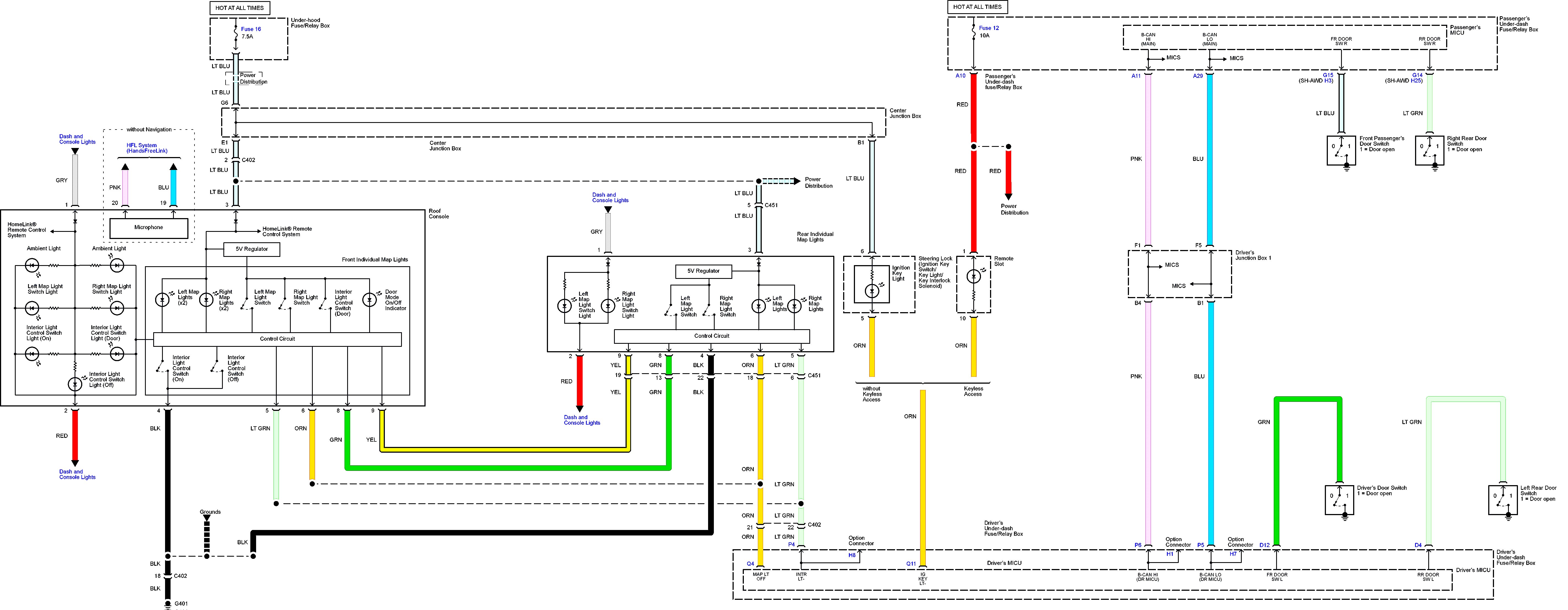

Acura TL - wiring diagram - key lamp
Acura TL – wiring diagram –
key lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
