Acura RL (2010 – 2011) – wiring diagrams – headlamps

29 October 2017 admin Acura, RL 0

Acura RL (2010 – 2011) – wiring diagrams – headlamps

Year of production:  2010, 2011

Headlamps

Version 1

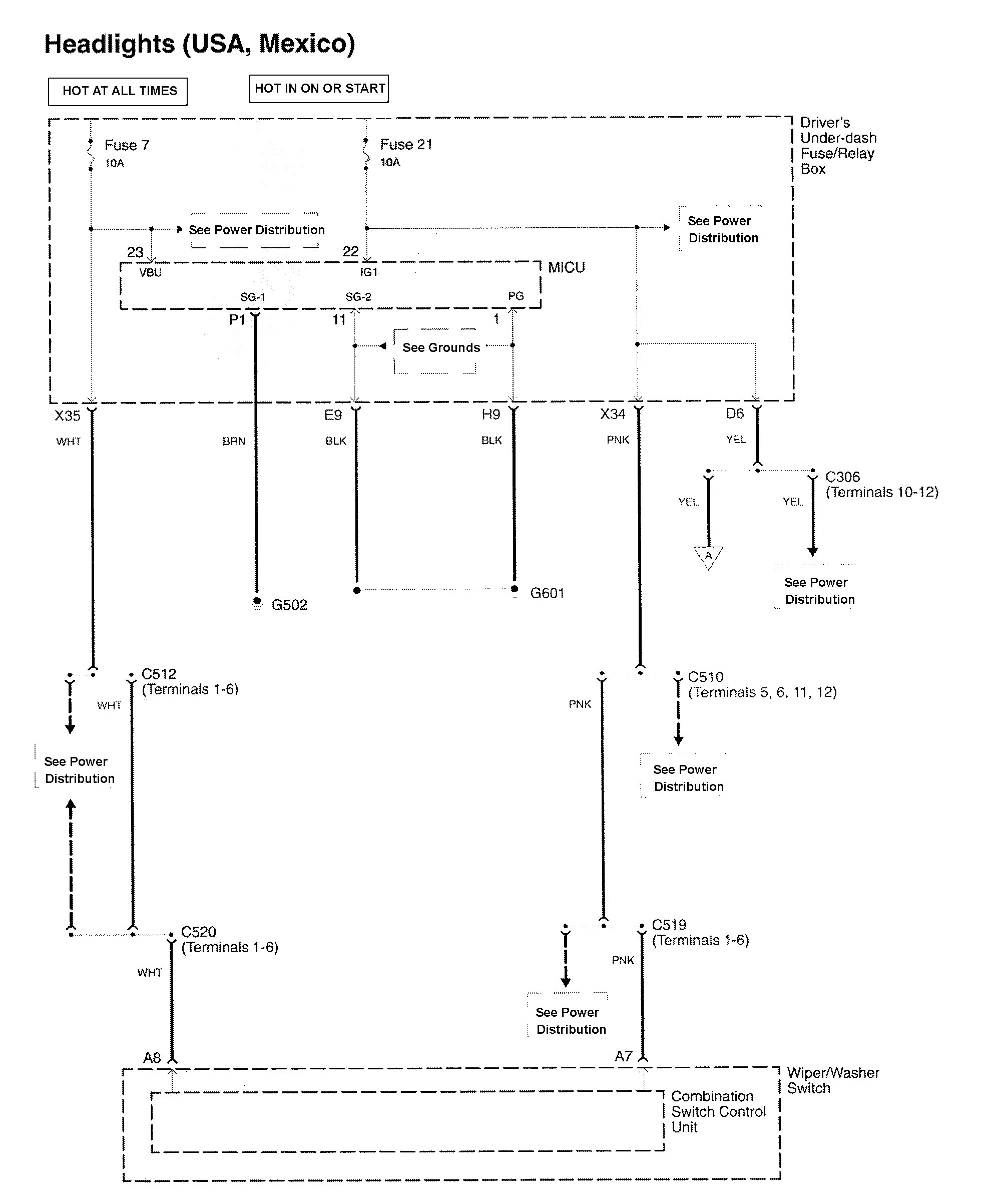

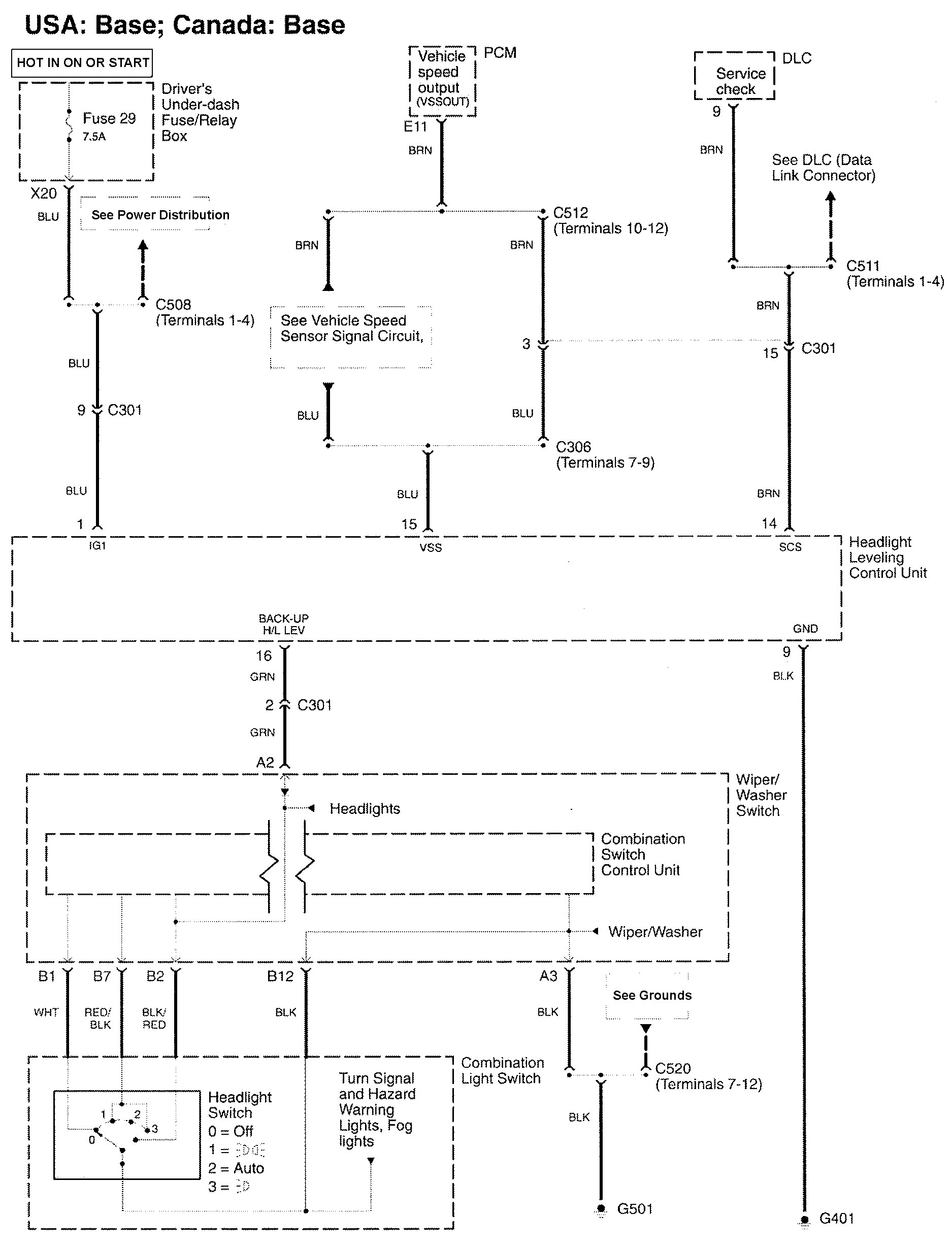

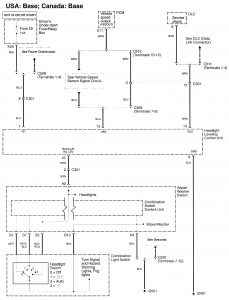

Acura RL - wiring diagram - headlamps (part 1)
Acura RL – wiring diagram – headlamps (part 1)

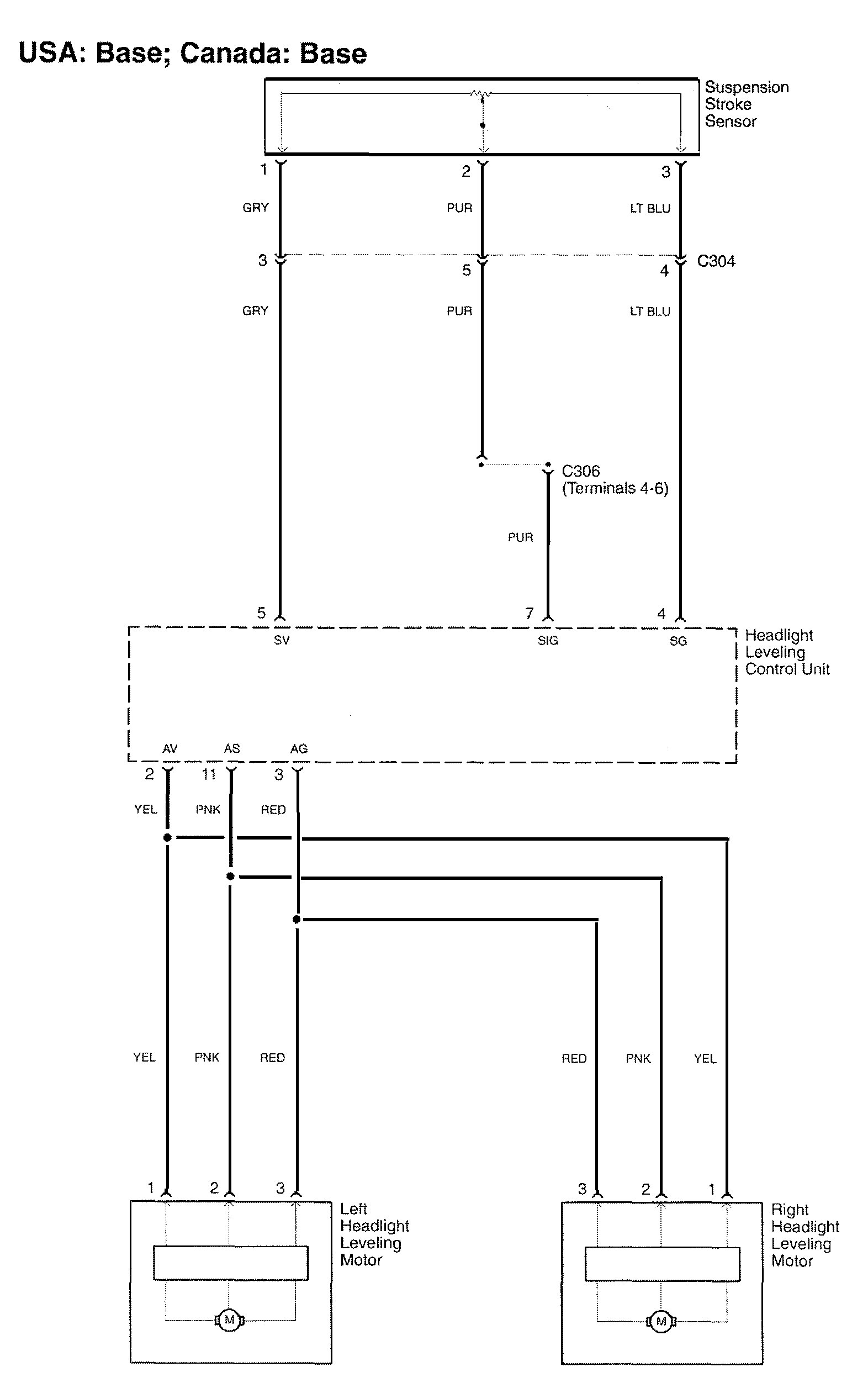

Acura RL - wiring diagram - headlamps (part 2)
Acura RL – wiring diagram – headlamps (part 2)

Version 2

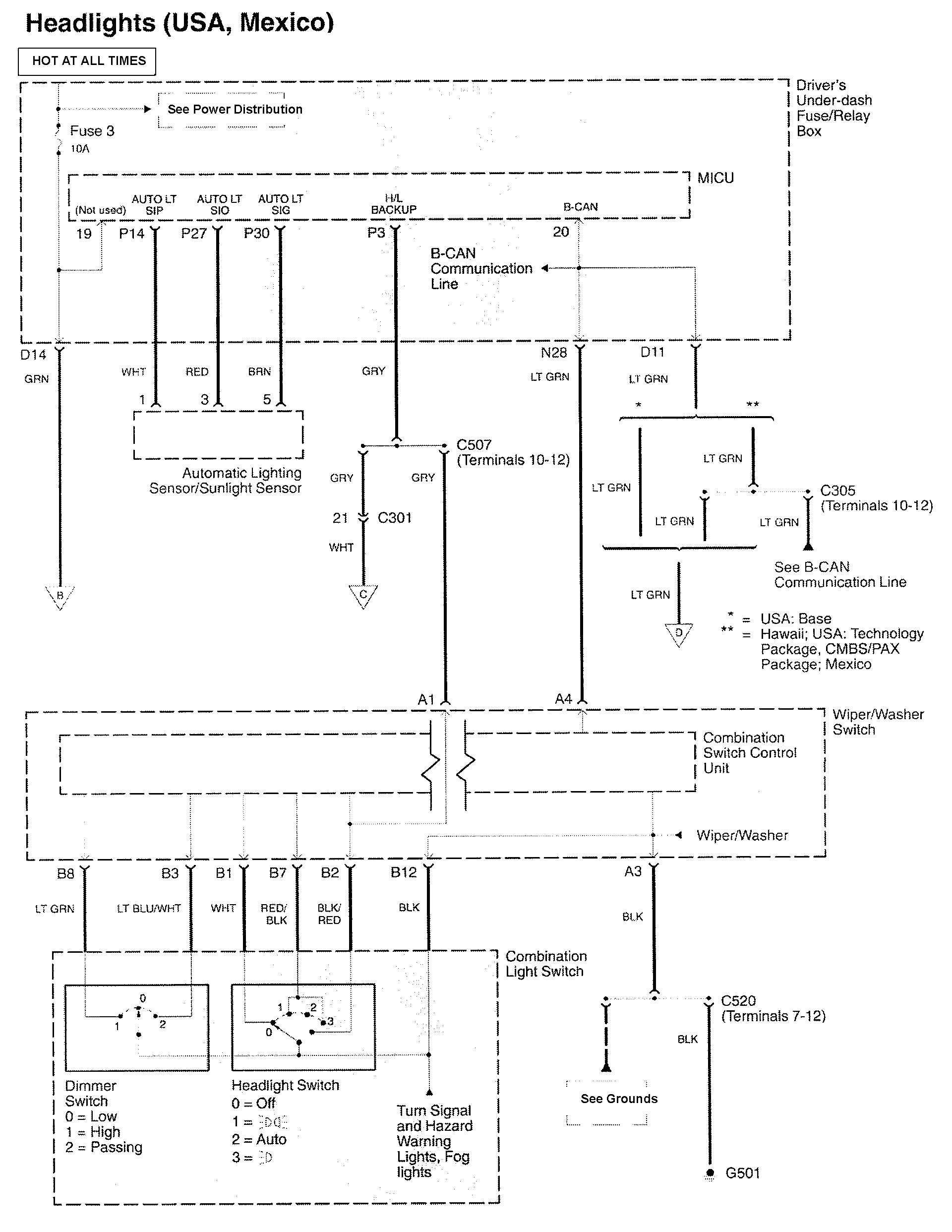

Acura RL - wiring diagram - headlamps (part 1)
Acura RL – wiring diagram – headlamps (part 1)
Acura RL - wiring diagram - headlamps (part 2)
Acura RL – wiring diagram – headlamps (part 2)

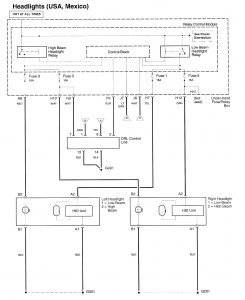

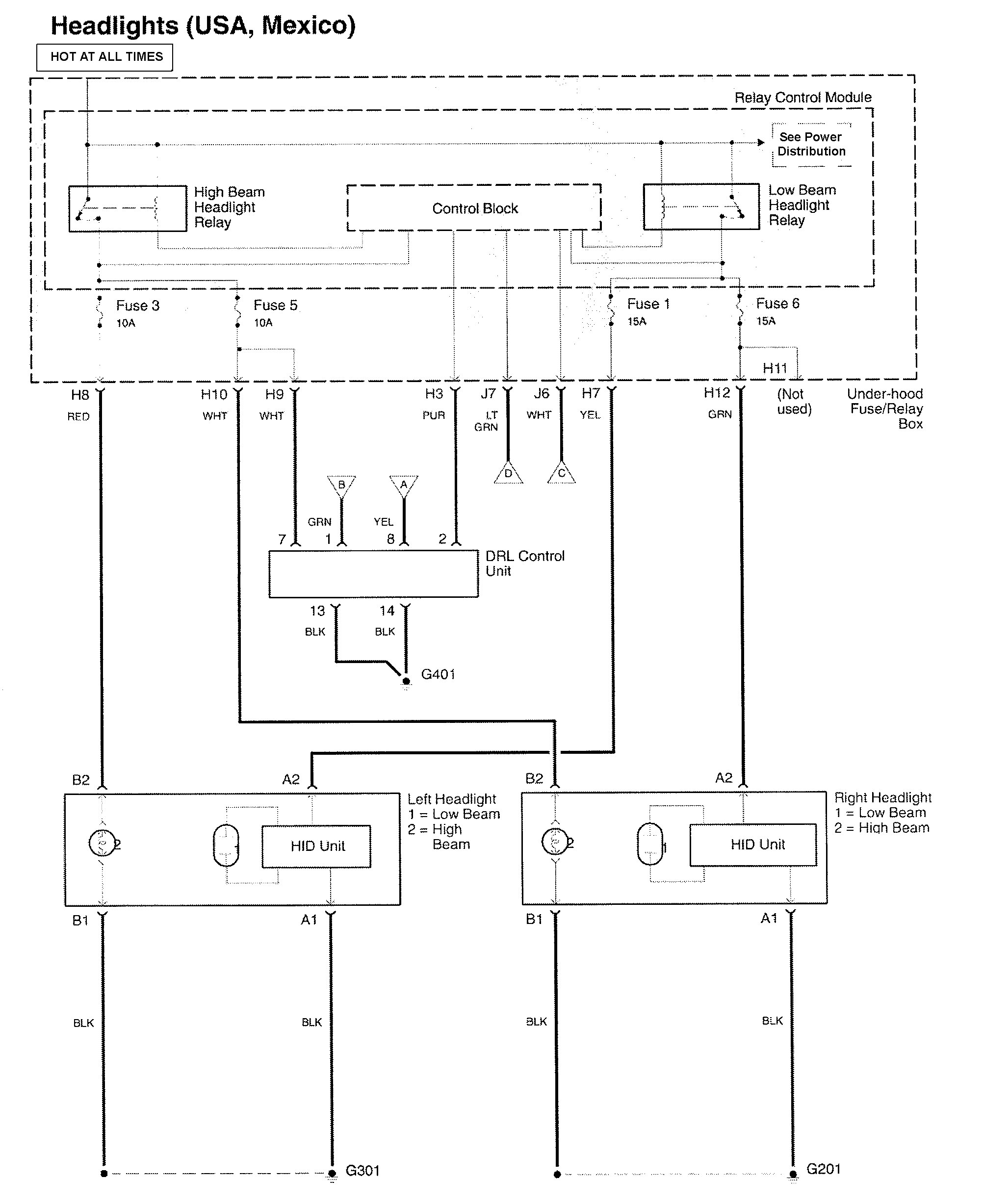

Acura RL - wiring diagram - headlamps (part 3)
Acura RL – wiring diagram – headlamps (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
