Acura RL (2010 – 2011) – wiring diagram – stepwell lamp

Acura RL (2010 – 2011) – wiring diagram – stepwell lamp

Year of productions:  2010, 2011

Stepwell lamp

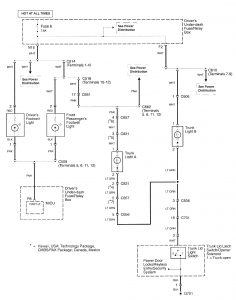

Acura RL - wiring diagram - stepwell lamps

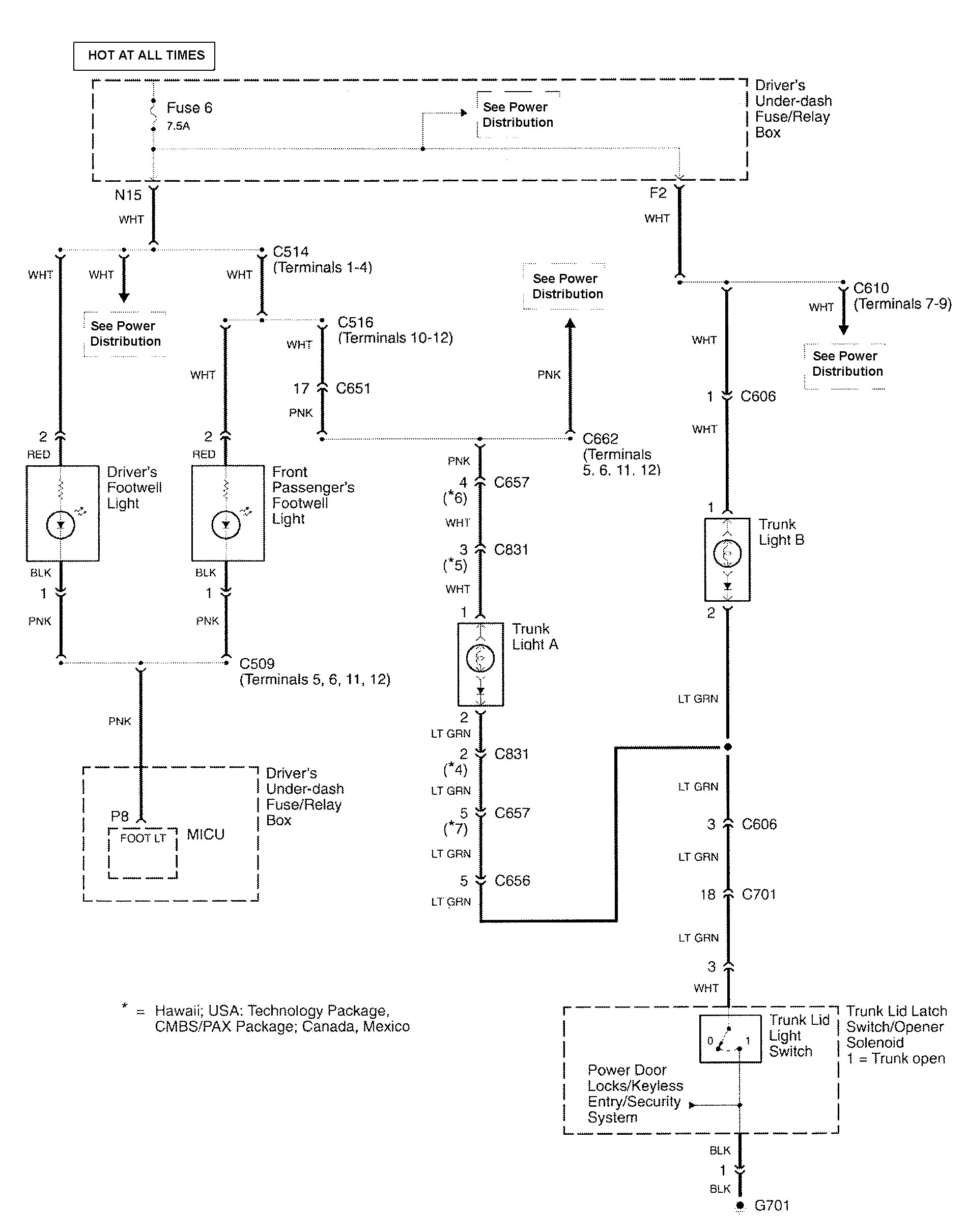

Acura RL – wiring diagram – stepwell lamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
