Acura RL (2009) – wiring diagrams – speed control

Year of productions:  2009

Speed control

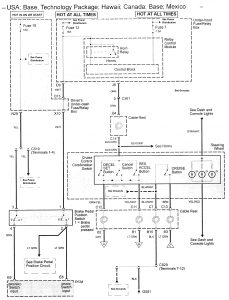

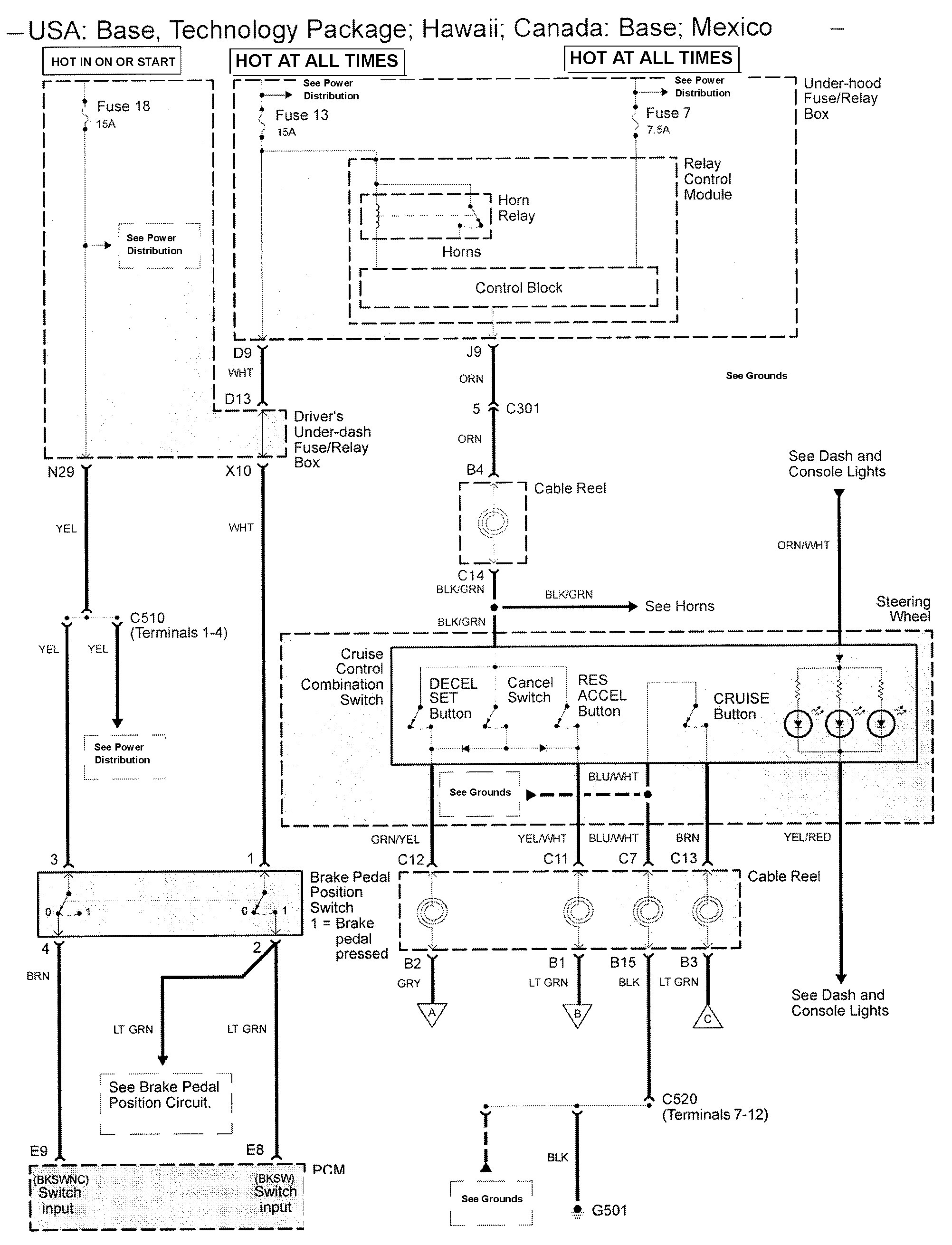

Acura RL - wiring diagram - speed control (part 1)
Acura RL – wiring diagram – speed control (part 1)

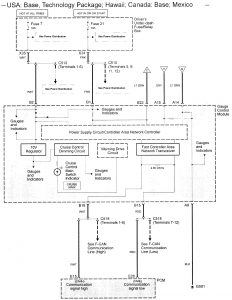

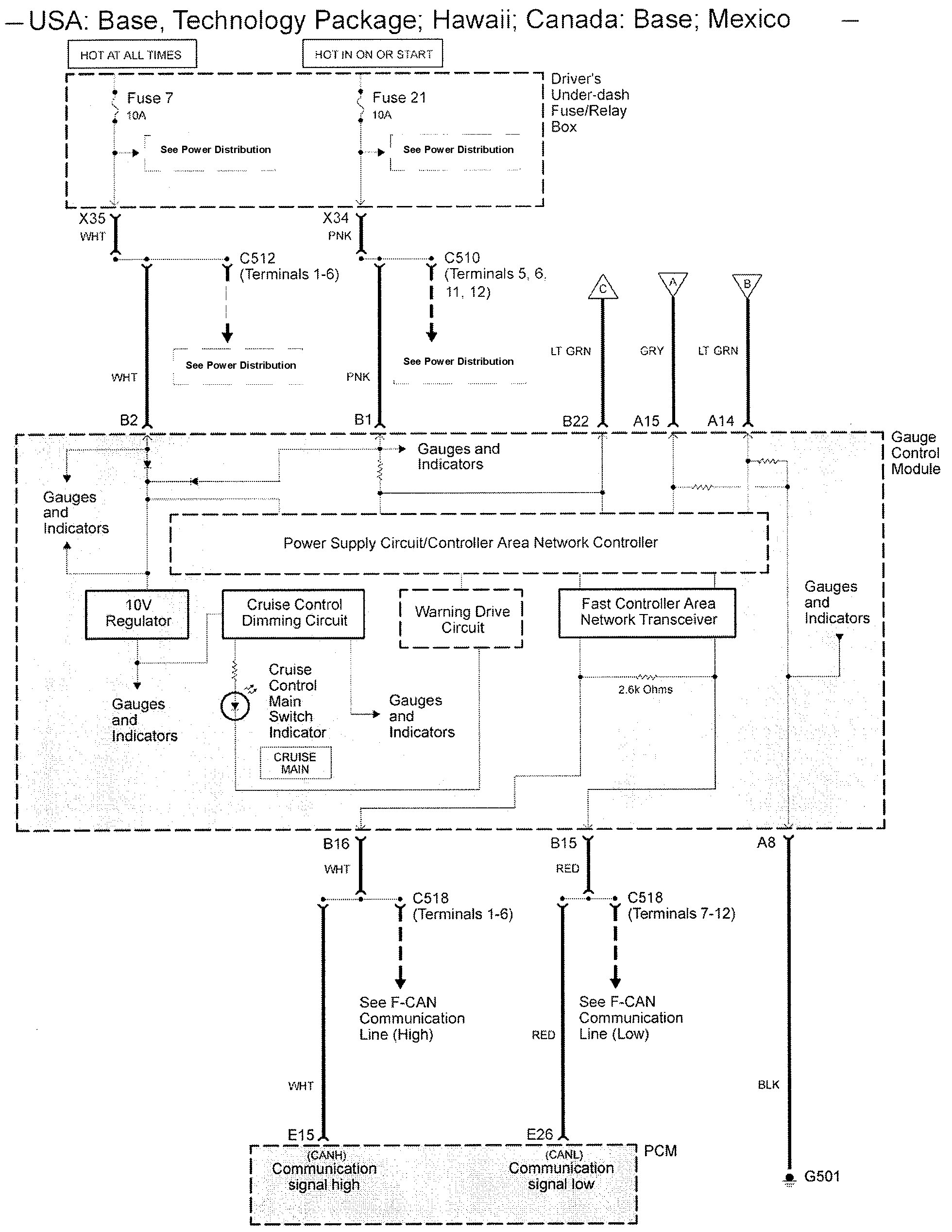

Acura RL - wiring diagram - speed control (part 2)
Acura RL – wiring diagram – speed control (part 2)

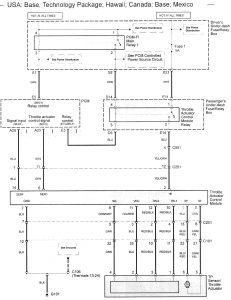

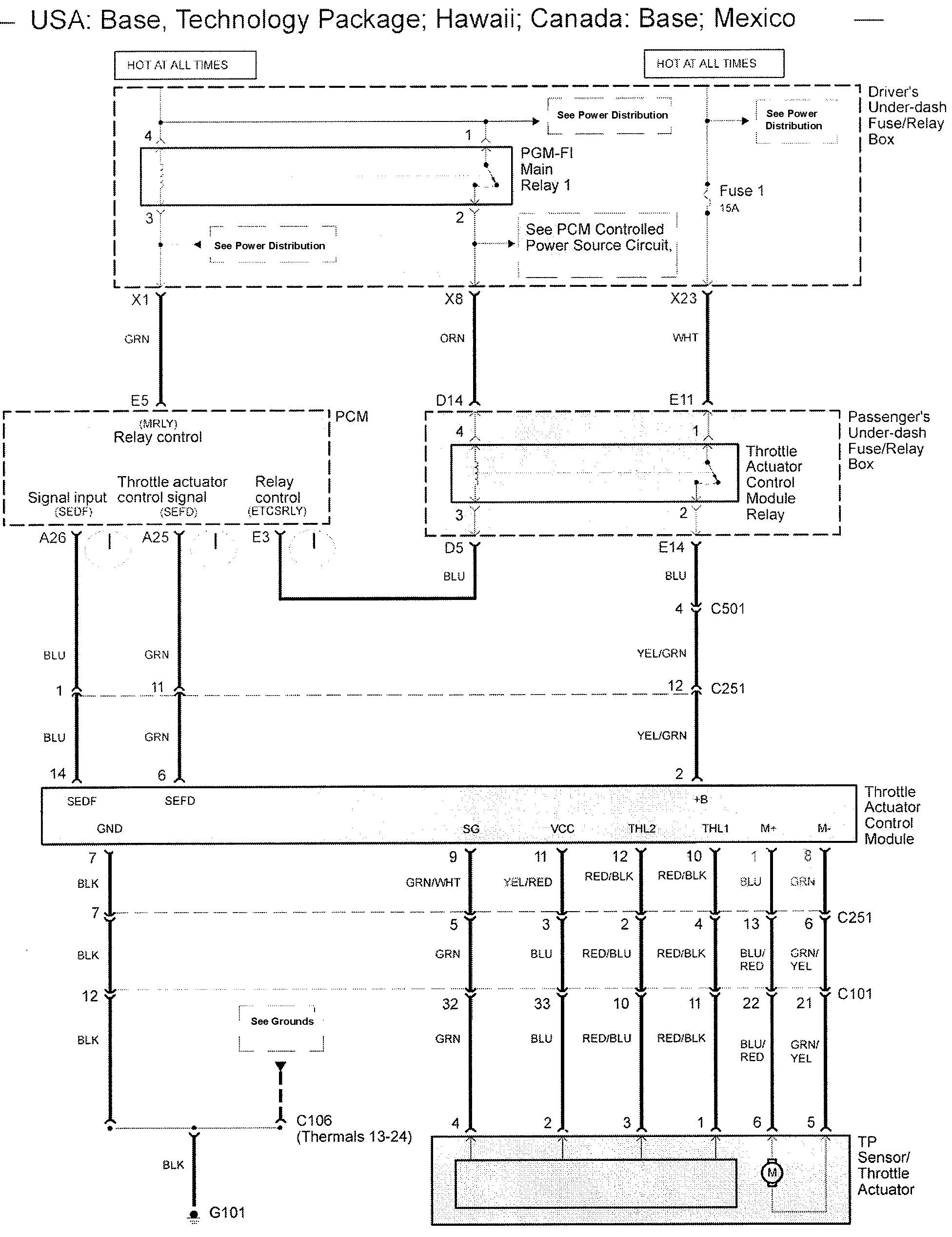

Acura RL - wiring diagram - speed control (part 3)
Acura RL – wiring diagram – speed control (part 3)

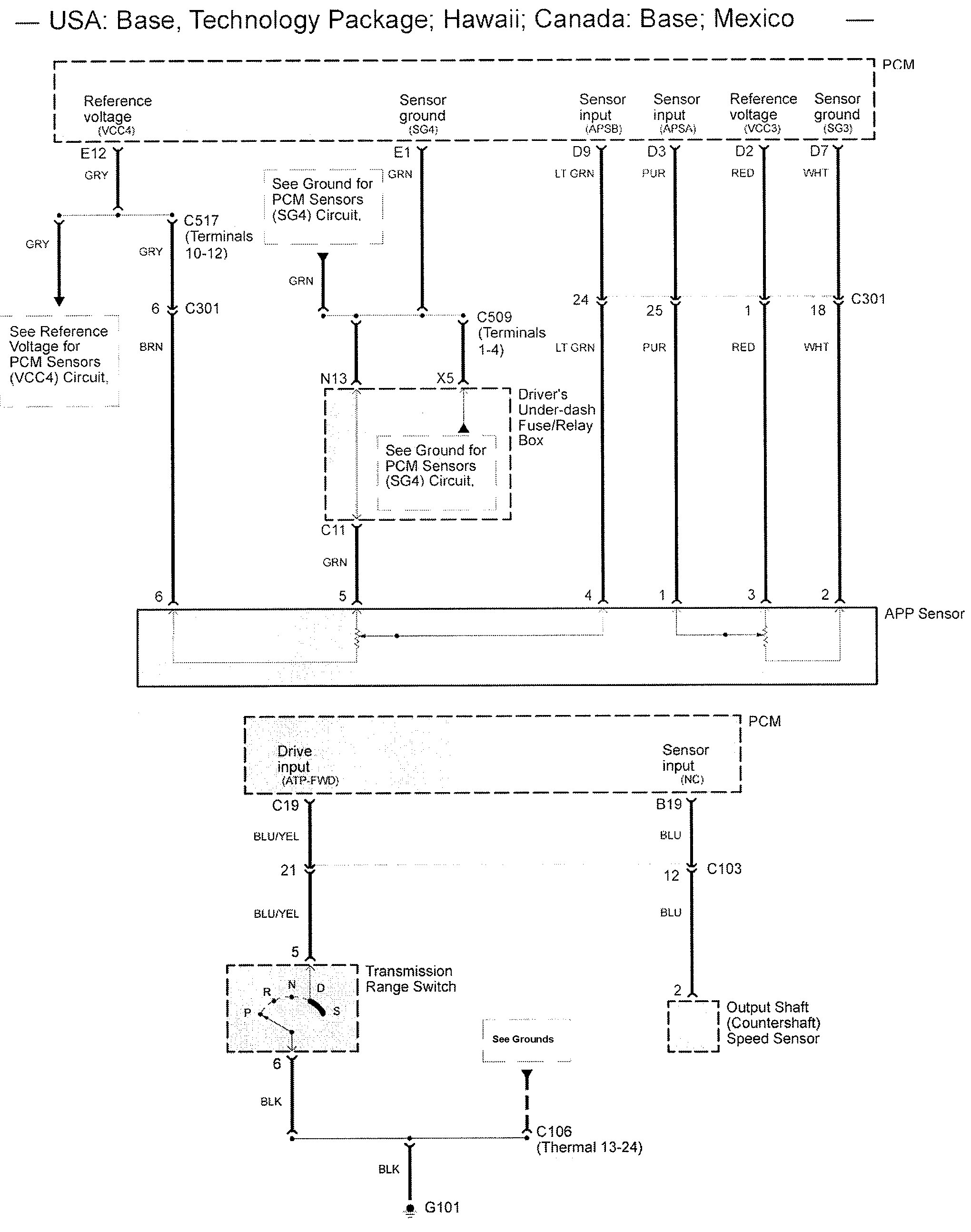

Acura RL - wiring diagram - speed control (part 4)
Acura RL – wiring diagram – speed control (part 4)

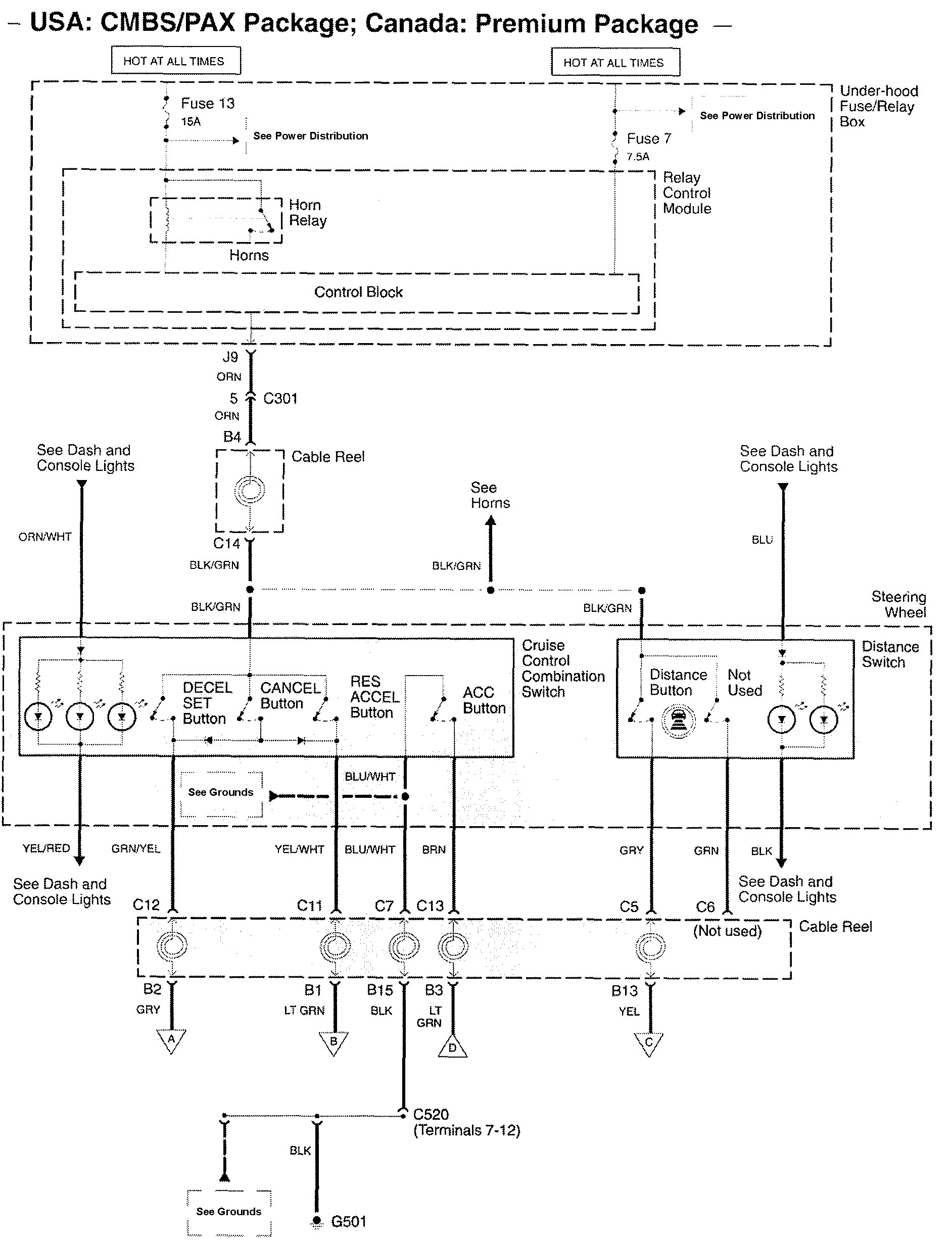

Acura RL - wiring diagram - speed control (part 5)
Acura RL – wiring diagram – speed control (part 5)

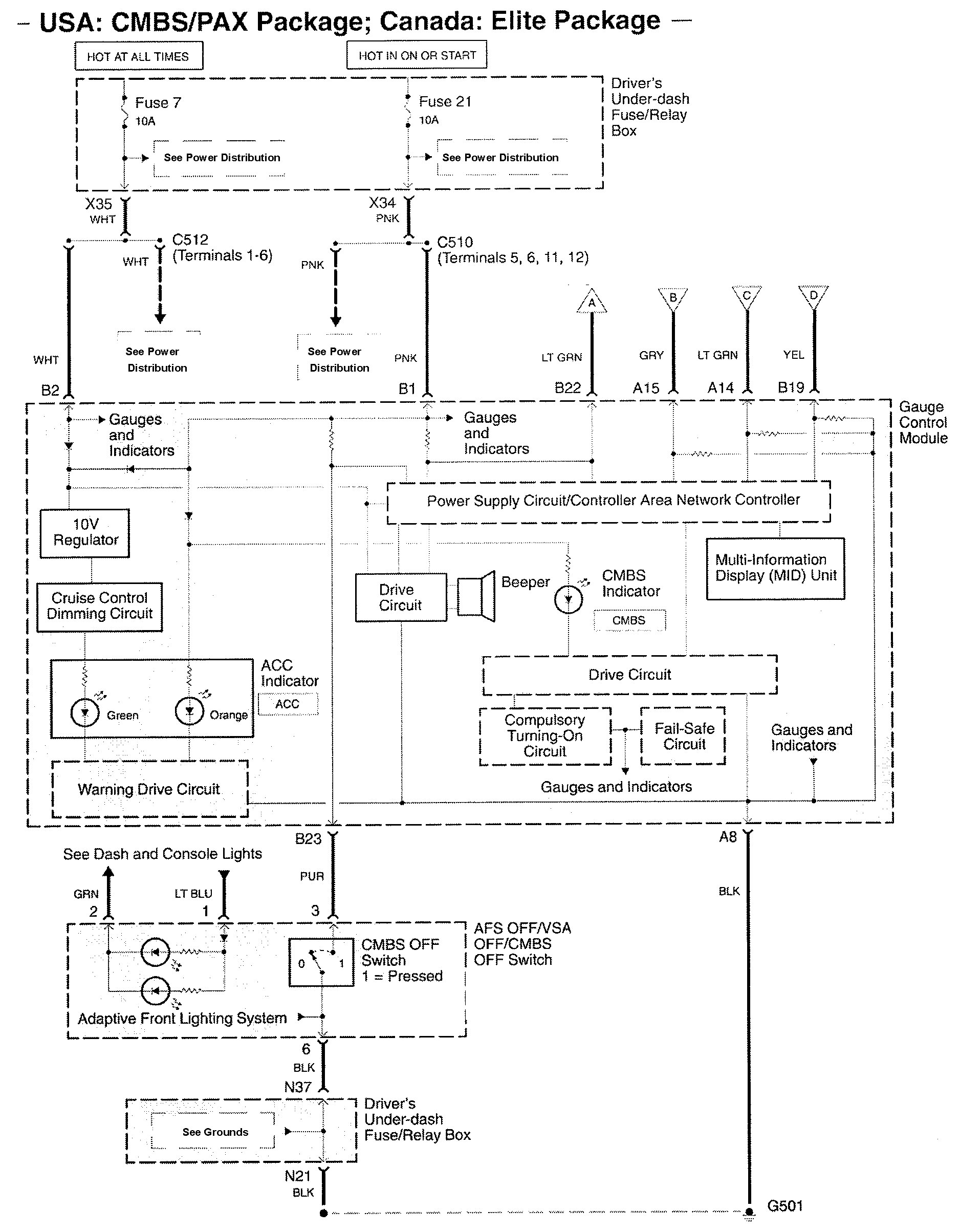

Acura RL - wiring diagram - speed control (part 6)
Acura RL – wiring diagram – speed control (part 6)

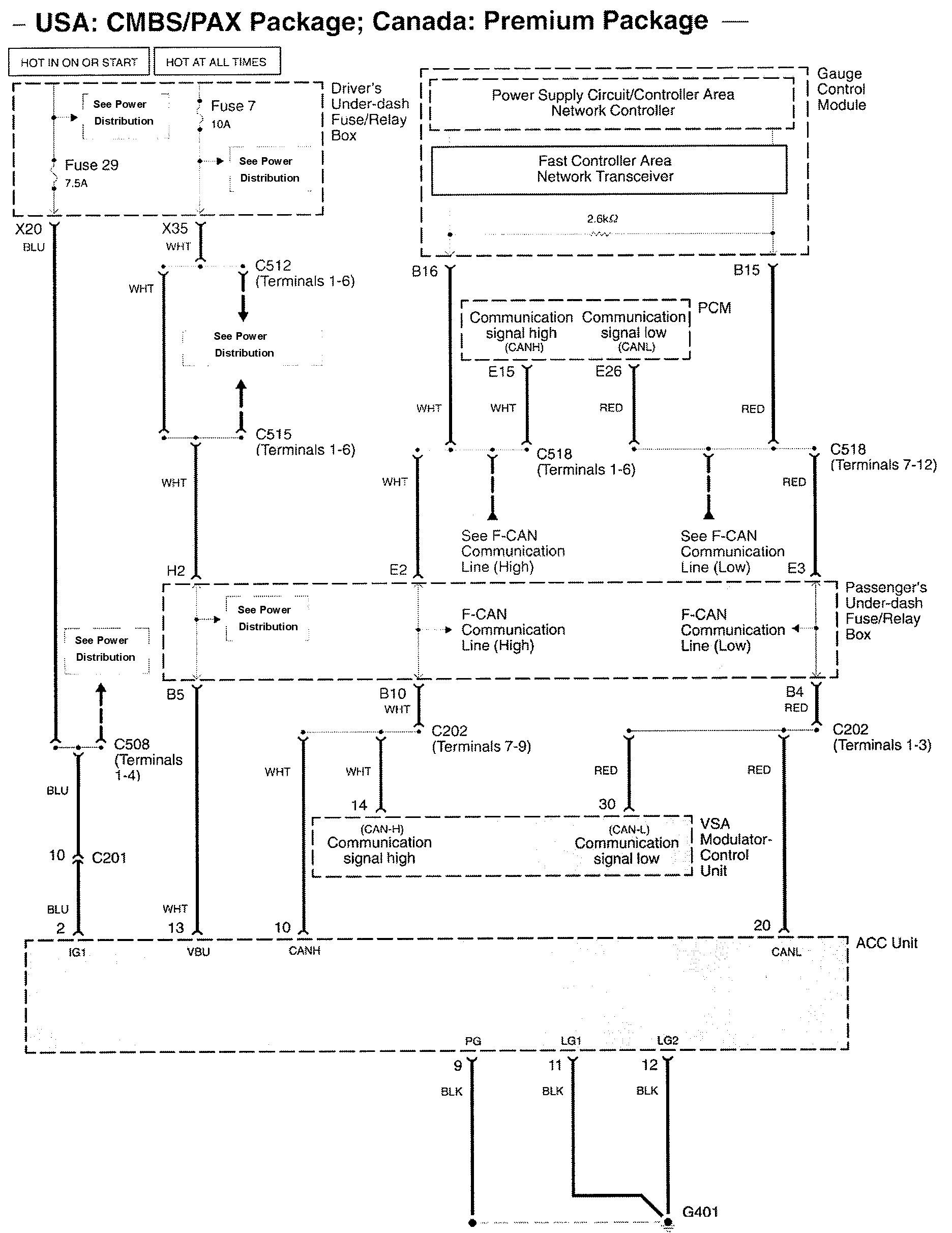

Acura RL - wiring diagram - speed control (part 7)
Acura RL – wiring diagram – speed control (part 7)

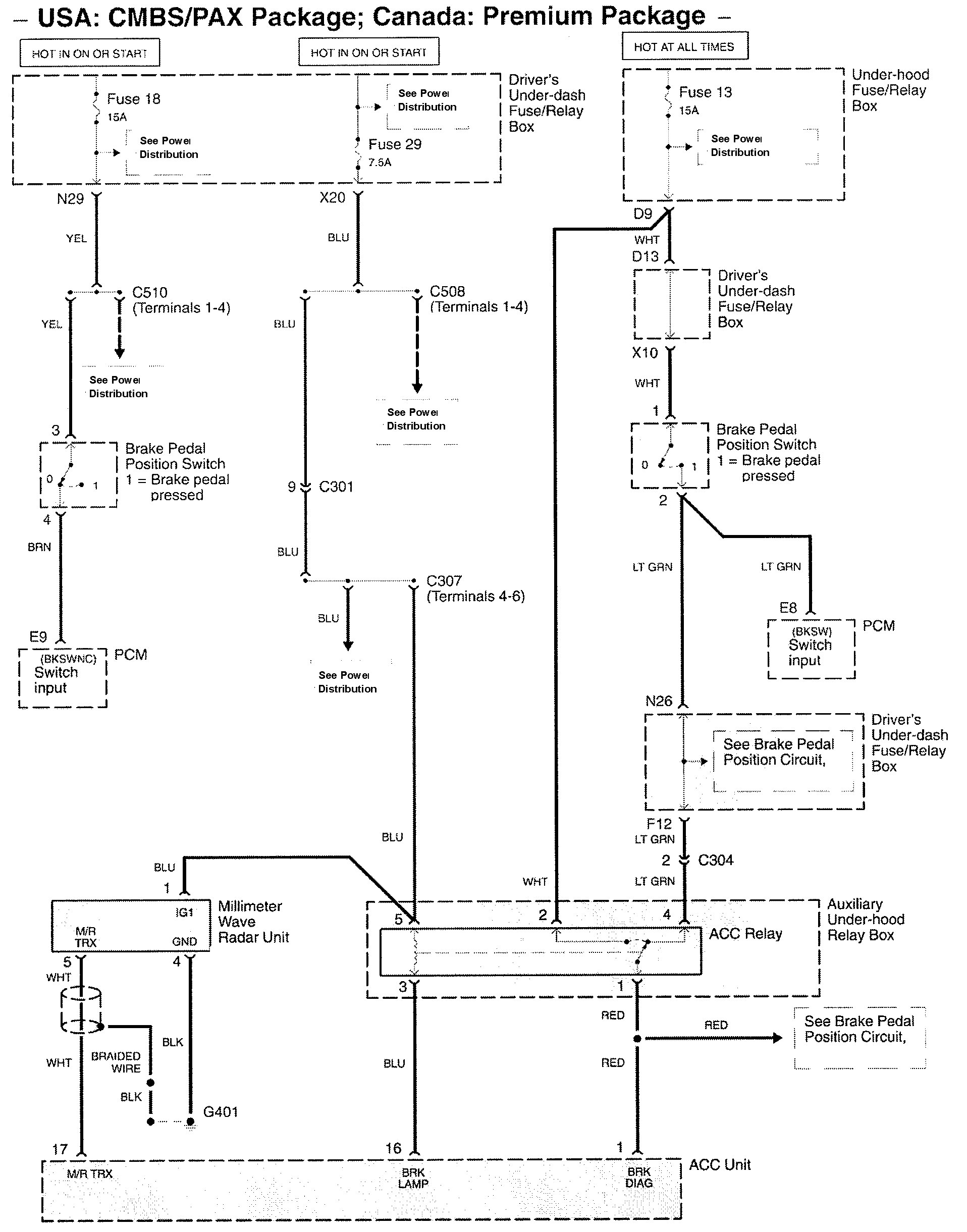

Acura RL - wiring diagram - speed control (part 8)
Acura RL – wiring diagram – speed control (part 8)

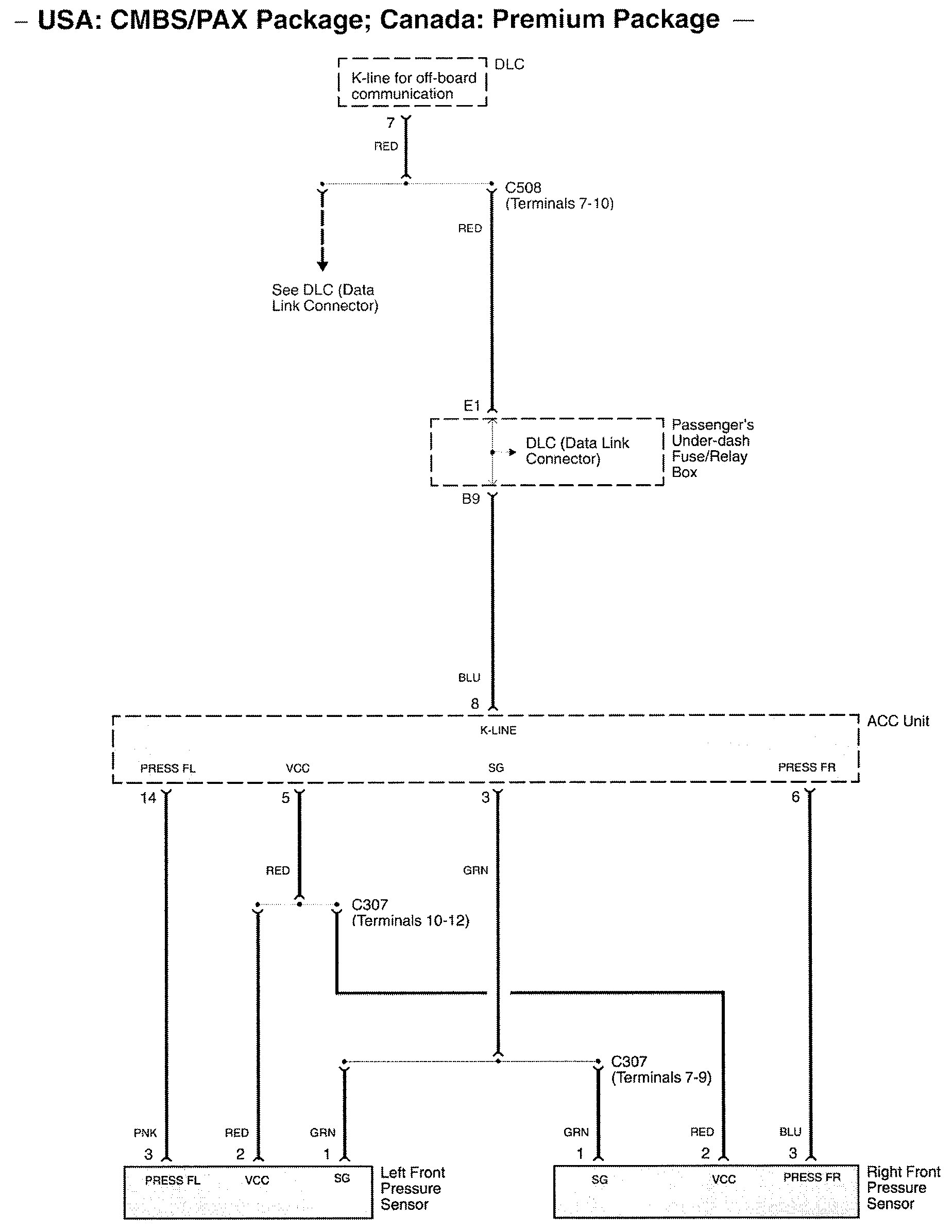

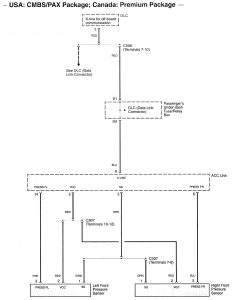

Acura RL - wiring diagram - speed control (part 9)
Acura RL – wiring diagram – speed control (part 9)

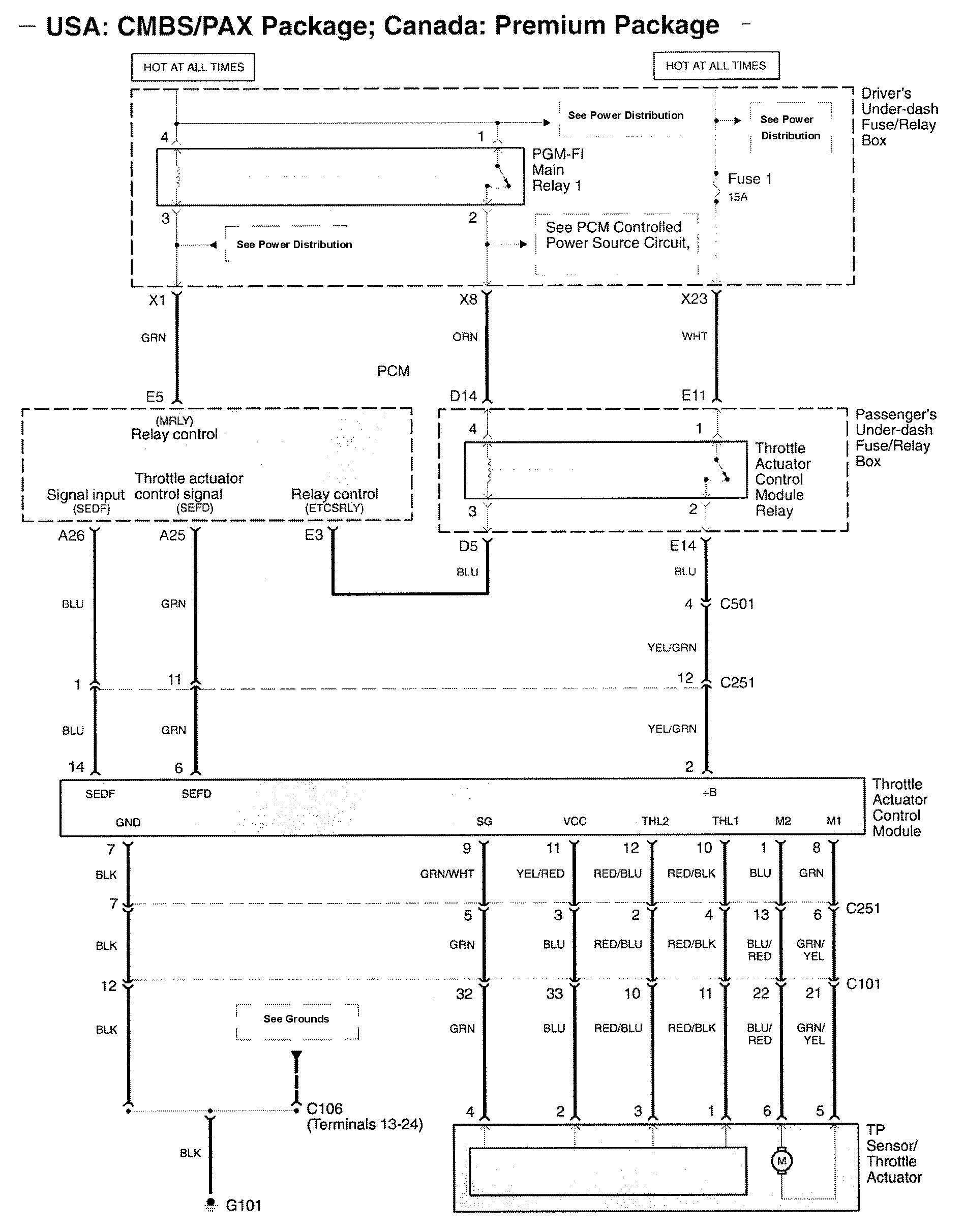

Acura RL - wiring diagram - speed control (part 10)
Acura RL – wiring diagram – speed control (part 10)

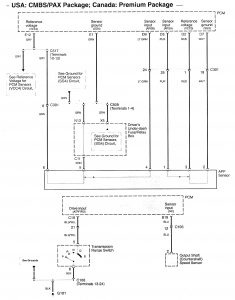

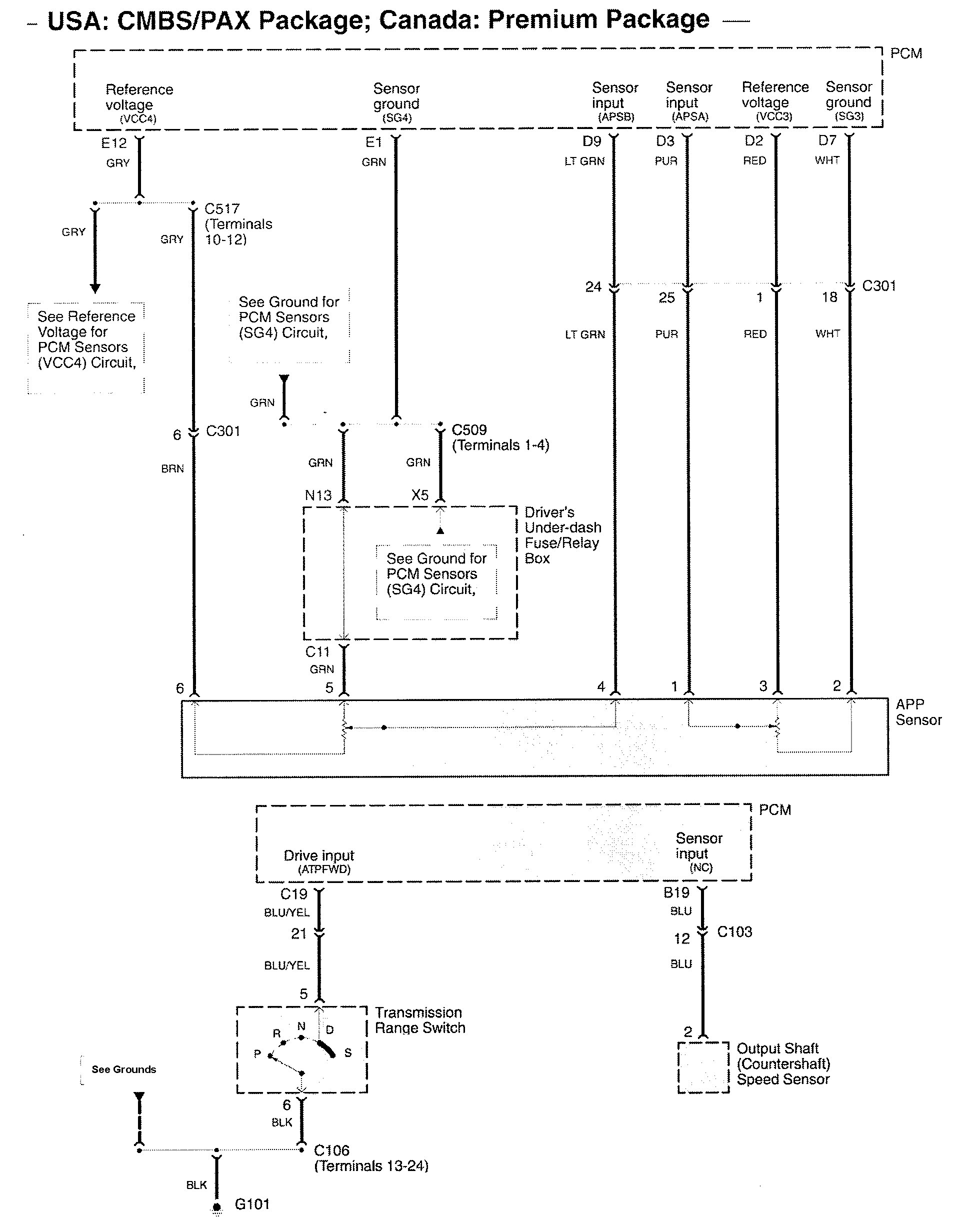

Acura RL - wiring diagram - speed control (part 11)
Acura RL – wiring diagram – speed control (part 11)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
