Acura Legend (1995) – wiring diagram – reverse lamp

Acura Legend (1995) – wiring diagram – reverse lamp

Year of productions:  1995

Reverse lamp

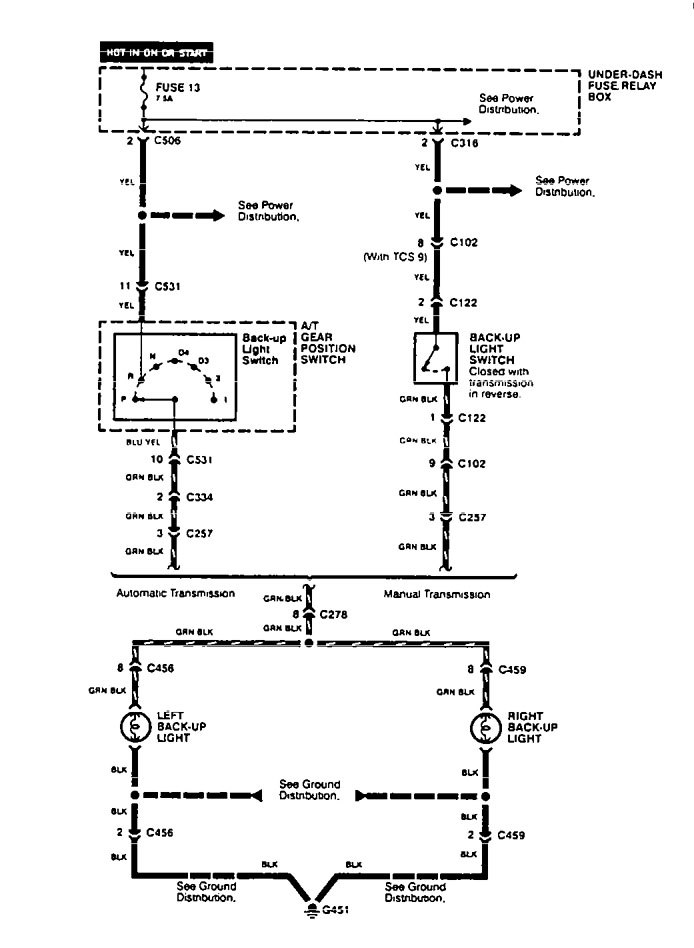

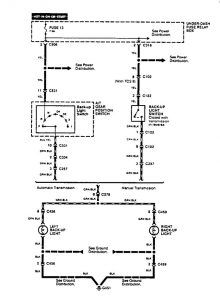

Version 1

Acura Legend – wiring diagram – reverse lamp

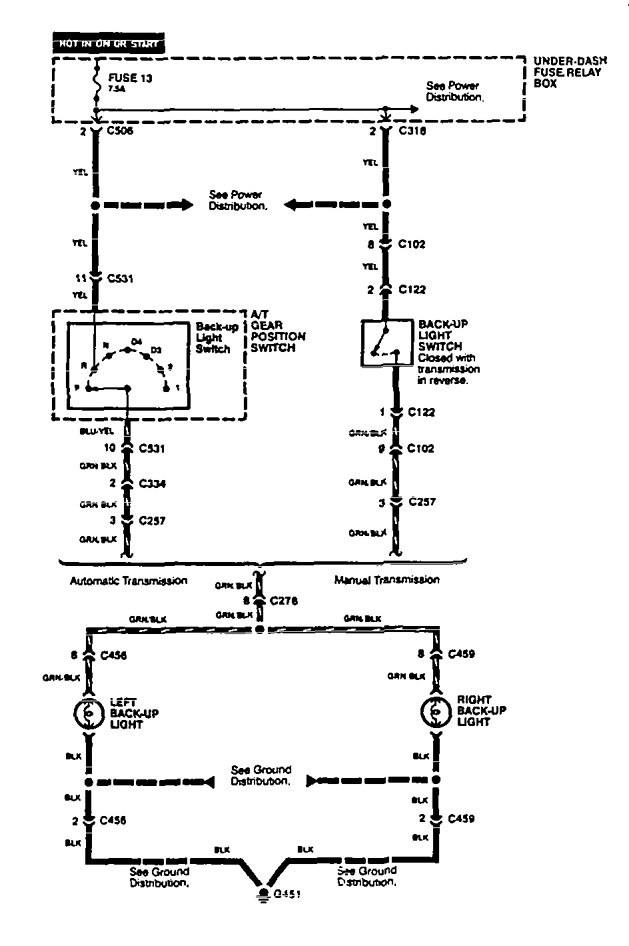

Version 2

Acura Legend – wiring diagram – reverse lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
