Acura Legend (1990) – wiring diagram – fuse box

Acura Legend (1990) – wiring diagram – fuse box

Year of productions:  1990

Fuse box

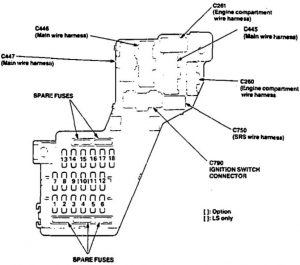

Acura Legend – wiring diagram – fuse block
Fuse number Ampere rating [A] Circuit protected
1 7,5 Power antenna; integrated control unit; radio; climate control; clock; information center control unit
2 20 Power windows (right rear)
3 20 Power windows (right front)
4 20 Power windows (left rear)
5 7,5 Backup lights; integrated.control unit; shift position indicator; clock; gauges: indicators; safety indicator; Information center control unit; turn signal and hazard lights; SRS; shift position, console switch
6 20 Sunroof; wiper/washer motors
7 20 Power door lock control unit; trunk release
8 20 Trailer connector; lights: trunk, ignition key switch, footwall, interior, map, door courtesy, door key; cigarette lighter and illumination
9 10 PGM·FI: fan timer unit; starter relay; gauge; speed sensor amplifier; charging system; SRS
10 10 SRS
11 7,5 Cruise control; security ctmtrol unit
12 20 Power windows (left front); power window control unit
13 7,5 PGM-FI; charge warning indicator light; electronic control unit; starter relay; starter solenoid; neutral safety/back up lights switch; SRS
14 15 Lighting daytime running light relay
15 15 FogligtltS
16 15 Climate control; heater controls; blower controls; power mirror controls; heated mirrors; daytime running light relay; heated seat
17 10 Brakes; rear window defogger; A/C condenser fan
18 10 Security control unit; radio

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
