Hyundai Accent (2016 – 2017) – fuse box diagram

Hyundai Accent (2016 – 2017) – fuse box diagram

Year of production: 2016, 2017

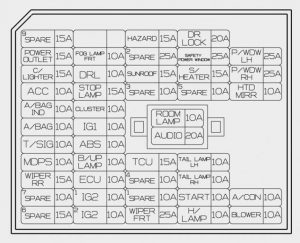

Instrument panel (Driver’s side fuse panel)

Hyundai Accent - wiring diagram - fuse box diagram - instrument panel (driver's side)
Hyundai Accent – wiring diagram – fuse box diagram – instrument panel (driver’s side)
Fuse Ampere rating [A] Protected component
9SPARE 15
POWER OUTLET 15 Cigarette Lighter & Power Outlet (Power Outlet)
C/LIGHTER 15 Cigarette Lighter & Power Outlet (Cigarette Lighter)
ACC 10 Audio, Power Outside Mirror Switch
A/BAG IND 10 Instrument Cluster (Air Bag IND.)
A/BAG 10 SRS Control Module, Telltale, Passenger Occupant Detection Sensor
T/SIG 10 Hazard Switch
MDPS 10 EPS Control Module
WIPER RR 15 Multifunction Switch, Rear Wiper Motor
7SPARE 10
6SPARE 15
FOG LAMP FRT 10 Front Fog Lamp Relay
DRL 10 DRL (Daytime Running Light) Relay
STOP LAMP 15 Stop Lamp Switch, Battery Sensor, Stop Lamp Relay, E/R Fuse & Relay Box (HAC Relay), Data Link Connector
CLUSTER 10 Instrument Cluster (MICOM, IND.), BCM
IG1 10 Stop Lamp Switch, ECO Switch, Driver/Passenger Seat Heater Module, Tire Pressure Monitoring Module, ATM Shift Lever Switch ILL. EPS Control Module, Rheostat
ABS 10 ABS Control Module, ESC Control Module, ESC Off Switch, E/R Fuse & Relay Box (Multipurpose Check Connector, HAC Relay)
B/UP LAMP 10 Back-Up Lamp Switch
ECU 10 ECM, PCM
1IG2 10 Power Window Relay, A/C Control Module, Instrument Cluster (MICOM), BCM, Sunroof Motor, E/R Fuse & Relay Box (Blower Relay)
2IG2 10 A/C Control Module, BCM, SMK Unit, Wiper Control Unit
HAZARD 10 Hazard Relay, Hazard Switch
2SPARE 25
SUNROOF 15 Sunroof Motor
3SPARE 10
TCU 15 Vehicle Speed Sensor, Transaxle Range Switch
4SPARE 15
1SPARE 10
WIPER FRT 25 Multifunction Switch (Wiper), Front Wiper Motor
DR LOCK 20 Door Lock/Unlock Relay, Tail Gate Unlock Relay, Driver Door Lock Actuator
SAFETY POWER WINDOW 25 Safety Power Window Module
S/HEATER 15 Driver/Passenger Seat Heater Module
5SPARE 10
ROOM LP 1 10 Instrument Cluster (IND.,ILL.), Tire Pressure Monitoring Module, BCM, A/C Control Module, Luggage Room Lamp, Trunk Room Lamp, Center Room Lamp, Overhead Console Lamp, Map Lamp
AUDIO 20 Audio
TAIL LAMP LH 10 Rear Combination Lamp LH, Head Lamp LH, License Lamp LH/RH (4DOOR), License Lamp (5DOOR)
TAIL LAMP RH 10 Head Lamp RH, Rear Combination Lamp RH, Rheostat, Audio, Front Turn Signal Lamp RH, Hazard Switch, Instrument Cluster (ILL.+), AUX & USB Jack, ESC Off Switch, A/C Switch, ECO Switch, Multifunction Switch (Remote Control), A/C Control Module, Rear Defogger Switch, Front Deicer Switch, ATM Shift Lever Switch ILL.
START 10 Transaxle Range Switch, Ignition Lock Switch
H/LAMP 10 Instrument Cluster, Engine Compartment Fuse & Relay Box (Head Lamp Relay)
P/WDW LH 25 Power Window Main Switch, Rear Power Window Switch LH
P/WDW RH 25 Power Window Main Switch, Rear Power Window Switch RH, Passenger Power Window Switch
HTD MIRR 10 ECM, PCM, Rear Defogger Switch, Driver Power Outside Mirror, Passenger Power Outside Mirror
A/CON 10 A/C Control Module (Auto A/C)
BLOWER 10 ECM, PCM, Blower Switch, Blower Resistor, A/C Control Module (Manual A/C)

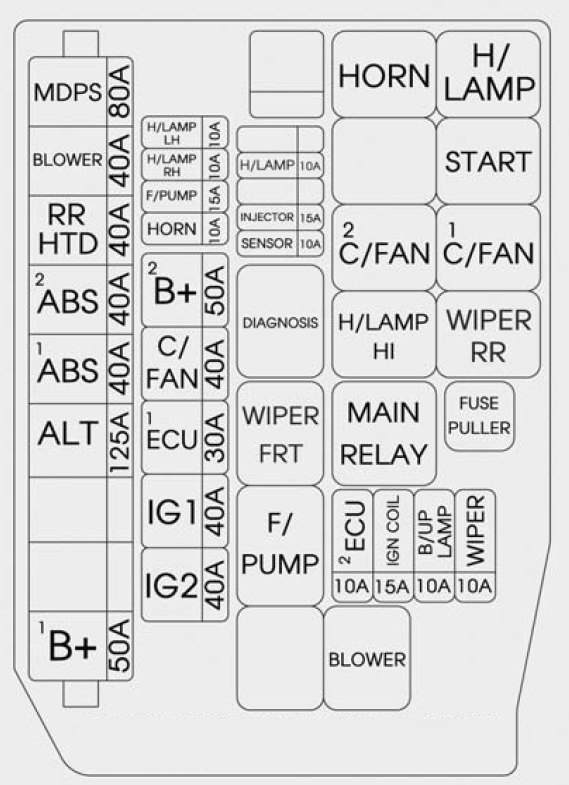

Engine compartment main fuse panel

Hyundai Accent - wiring diagram - fuse box diagram - engine compartment
Hyundai Accent – wiring diagram – fuse box diagram – engine compartment
Fuse Ampere rating [A] Protected component
MULTI FUSE MDPS 80 EPS Control Module
BLOWER 40 Blower Relay
RR HTD 40 I/P Junction Box (Rear Defogger Relay)
ABS 2 40 ABS Control Module, ESC Control Module
ABS 1 40 ABS Control Module, ESC Control Module, Multipurpose Check Connector
ALT 125 Alternator, E/R Fuse & Relay Box (Multi Fuse : ABS 1, ABS 2, MDPS, RR HTD, BLOWER, Fuse : A/CON)
B+1 50 I/P Junction Box (Power Connector Fuse : ROOM LP 1, AUDIO, Fuse : FOG LP FRT, ROOM LP 2, STOP LP, Relay : Tail Lamp)
FUSE IG2 40 Start Relay, Ignition Switch
IG1 40 Ignition Switch
ECU 1 30 Fuse : ECU 2, Engine Control Relay
C/FAN 40 Cooling Fan (High) Relay, Cooling Fan (Low) Relay
B+2 50 I/P Junction Box (Fuse : S/HEATER, SUNROOF, DR LOCK, HAZARD, Relay : Power Window)
HORN 10 Horn Relay
F/PUMP 10 Fuel Pump Relay
H/LAMP RH 10 Head Lamp RH
H/LAMP LH 10 Head Lamp LH
INJECTOR 15 ECM, PCM, Oil Control Valve #1/#2, Oxygen Sensor (Up)/(Down), Fuel Pump Relay
SENSOR 10 ECM, PCM, Canister Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve, Immobilizer Module, A/CON Relay, Cooling Fan (High) Relay, Cooling Fan (Low) Relay
ECU 2 20 ECM, PCM
IGN COIL 15 Ignition Coil #1 ~ #4, Condenser
B/UP LAMP 10 PCM, Transaxle Range Switch, Instrument Cluster, Rear Combination Lamp LH/RH, ATM Shift Lever Switch ILL.
WIPER 10 ECM, PCM, Multifunction Switch (Wiper), Front Wiper Motor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
