Acura Legend (1990) – wiring diagram – driver information center/message center

8 May 2017 admin Acura, Legend 0

Acura Legend (1990) – wiring diagram – driver information center/message center

Year of productions:  1990

Driver information center/message center

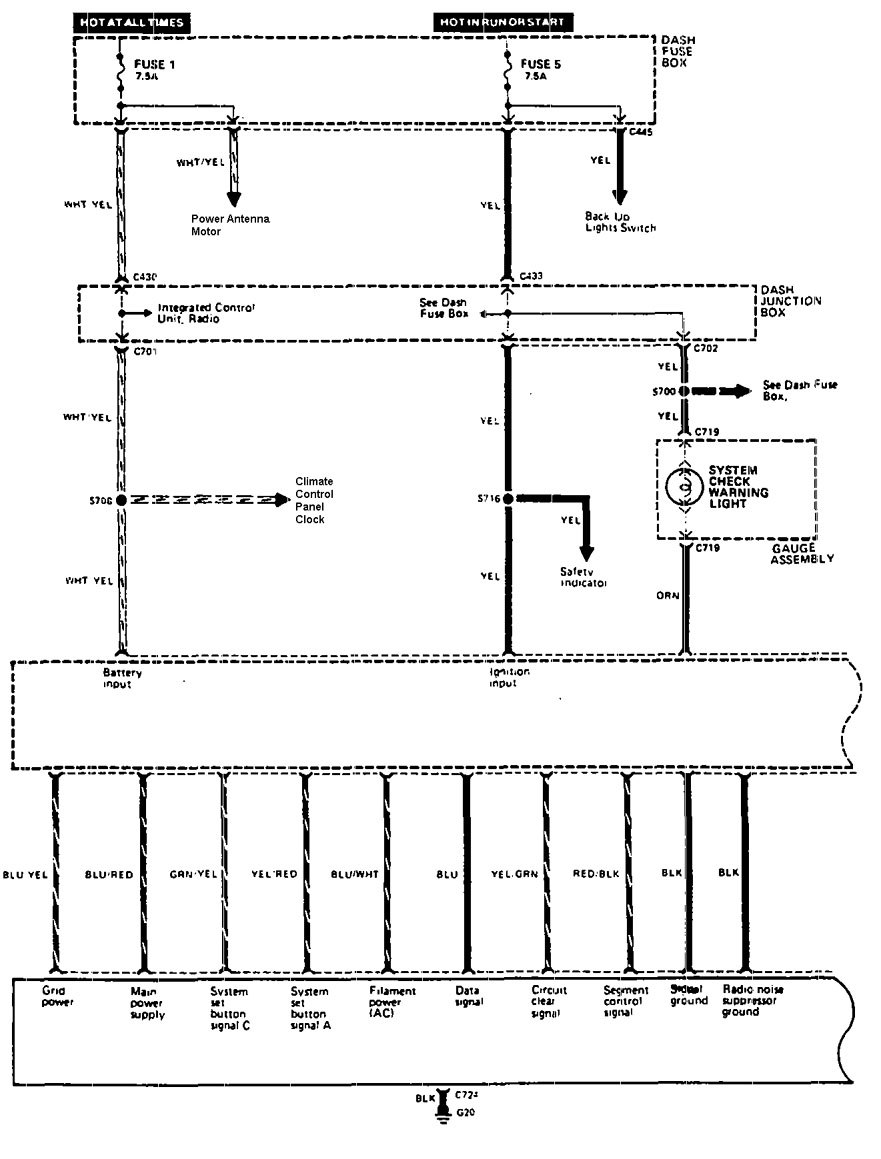

Acura Legend – wiring
diagram – driver information center/message center (part 1)

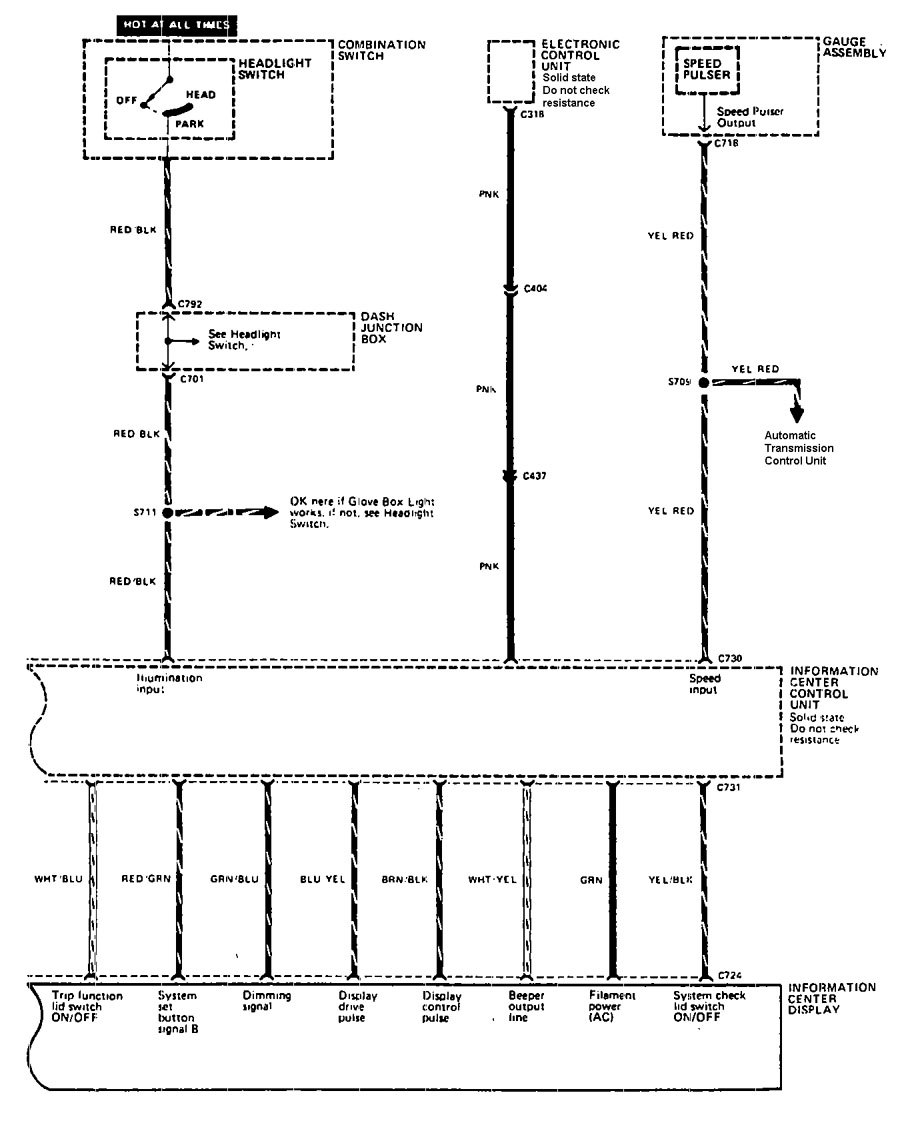

Acura Legend – wiring
diagram – driver information center/message center (part 2)

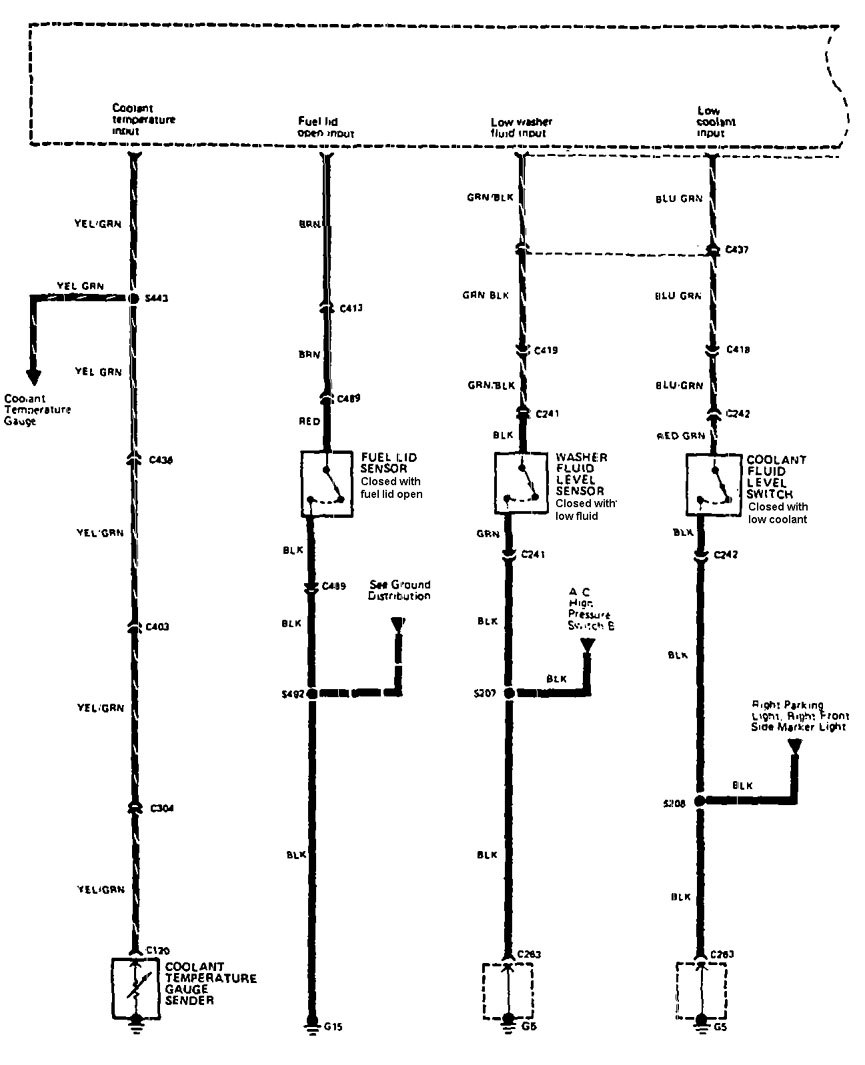

Acura Legend – wiring
diagram – driver information center/message center (part 3)

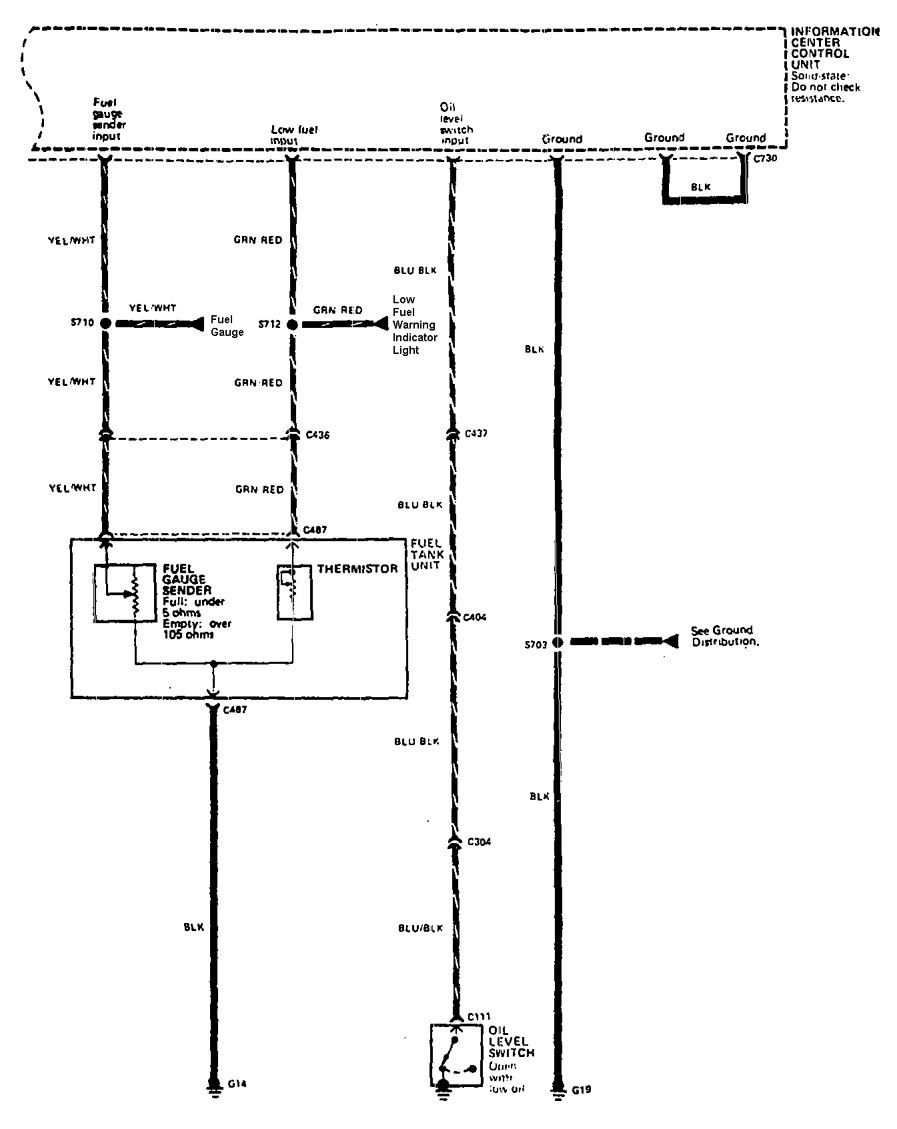

Acura Legend – wiring
diagram – driver information center/message center (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
