Acura Integra (1998 – 2001) – wiring diagrams – fuel control

Acura Integra (1998 – 2001) – wiring diagrams – fuel control

Year of productions: 1998, 1999, 2000, 2001

Fuel control

Version 1

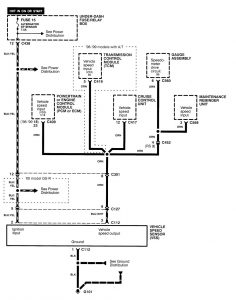

Acura Integra – wiring diagram – fuel control



Version 2

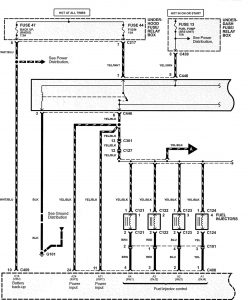

Acura Integra – wiring diagram – fuel control (part 1)

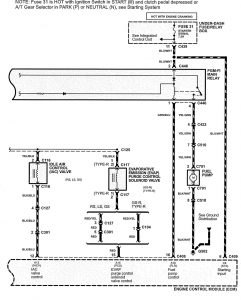

Acura Integra – wiring diagram – fuel control (part 2)
Acura Integra – wiring diagram – fuel control (part 3)

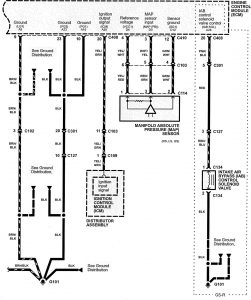

Acura Integra – wiring diagram – fuel control (part 4)
Acura Integra – wiring diagram – fuel control (part 5)

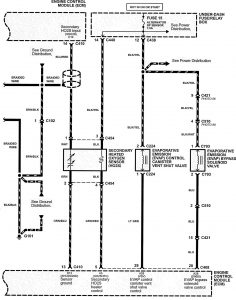

Acura Integra – wiring diagram – fuel control (part 6)
Acura Integra – wiring diagram – fuel control (part 7)

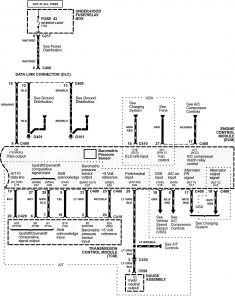

Acura Integra – wiring diagram – fuel control (part 8)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
