Acura Integra (1994 – 1996) – wiring diagrams – charging system

Acura Integra (1994 – 1996) – wiring diagrams – charging system

Year of productions: 1994, 1995, 1996

Charging system

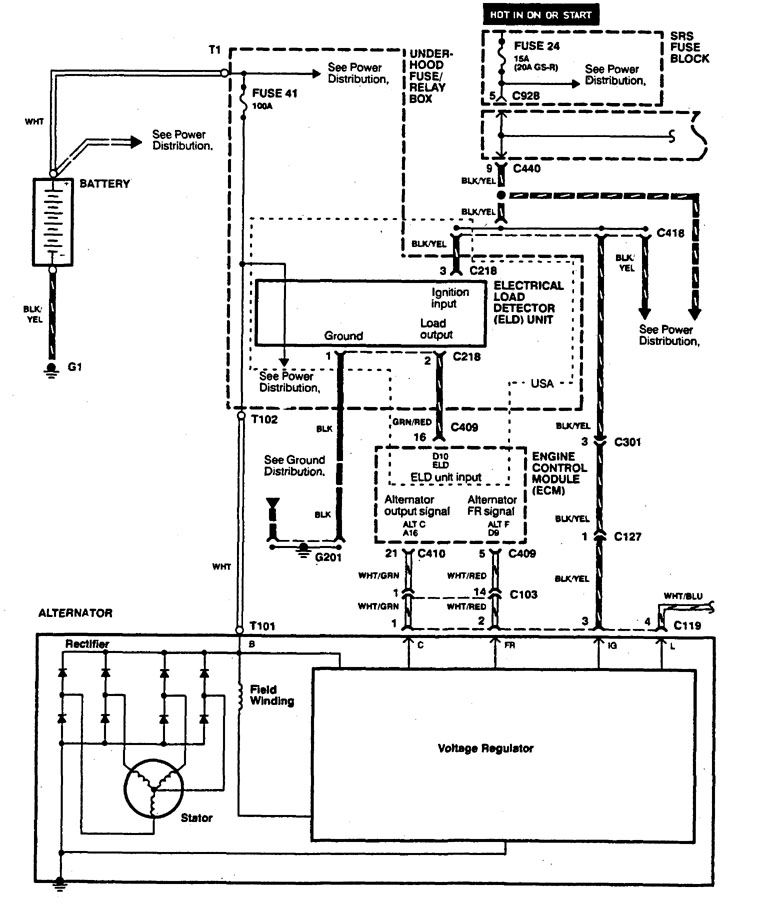

Acura Integra – wiring diagram – charging system (part 1)

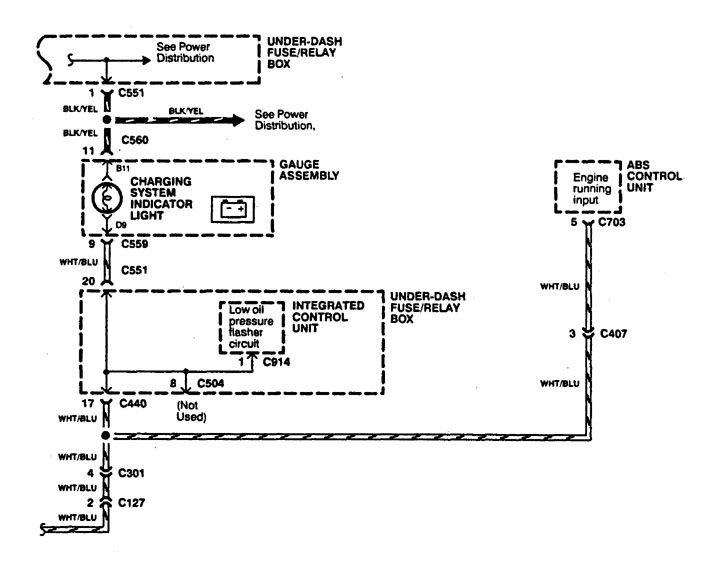

Acura Integra – wiring diagram – charging system (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
