Acura Integra (1988) – wiring diagrams – instrumentation

Acura Integra (1988) – wiring diagrams – instrumentation

Year of productions: 1988

Instrumentation

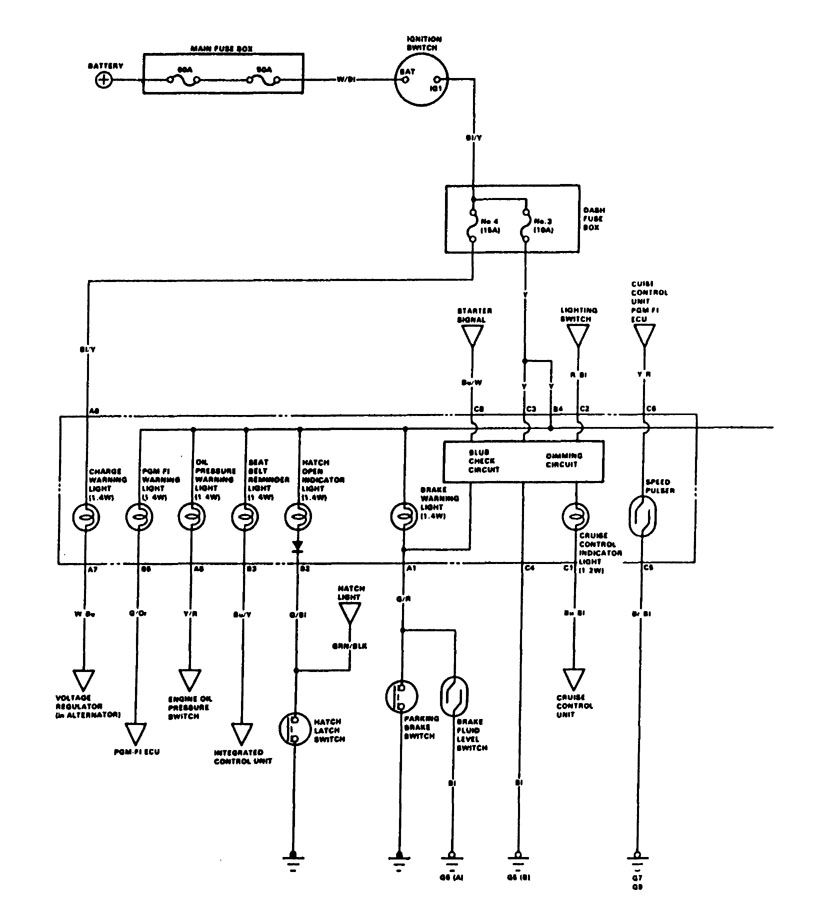

Acura Integra – wiring diagram – instrumentation

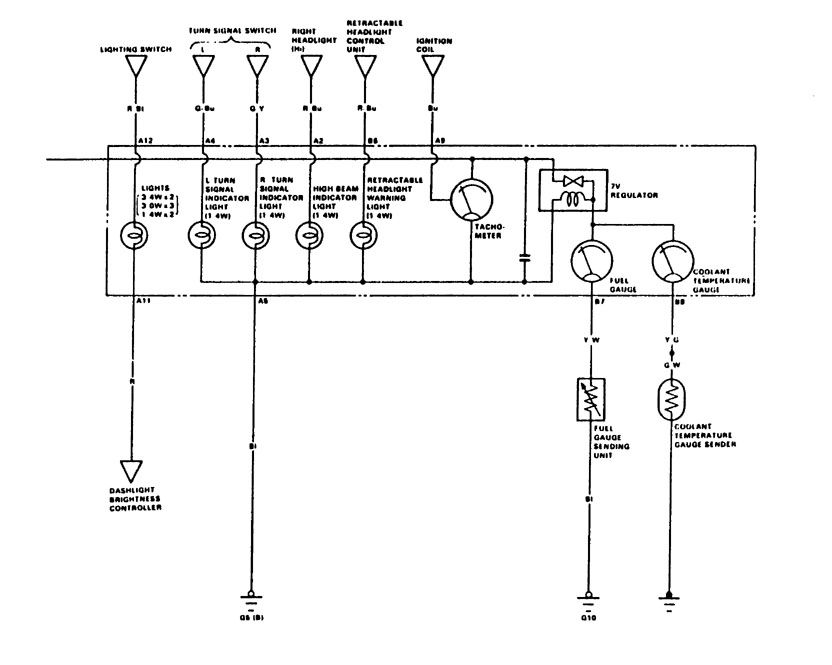

Acura Integra – wiring diagram – instrumentation



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
