Acura CL (1997) – wiring diagrams – instrumentation

Acura CL (1997) – wiring diagrams – instrumentation

Year of productions:  1997

Instrumentation

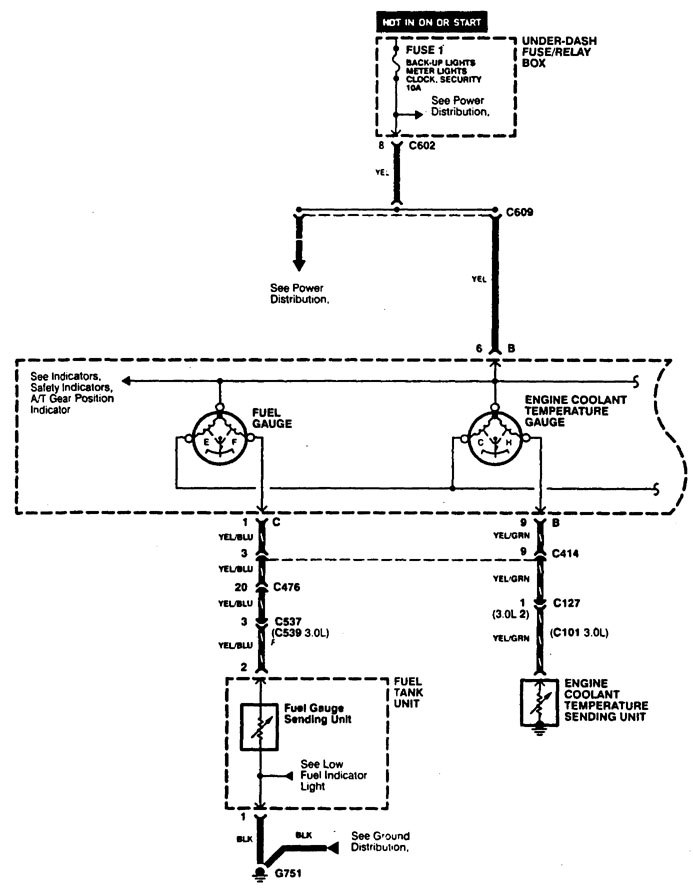

Acura CL - wiring diagram instrumentation (part 1)
Acura CL – wiring diagram instrumentation (part 1)

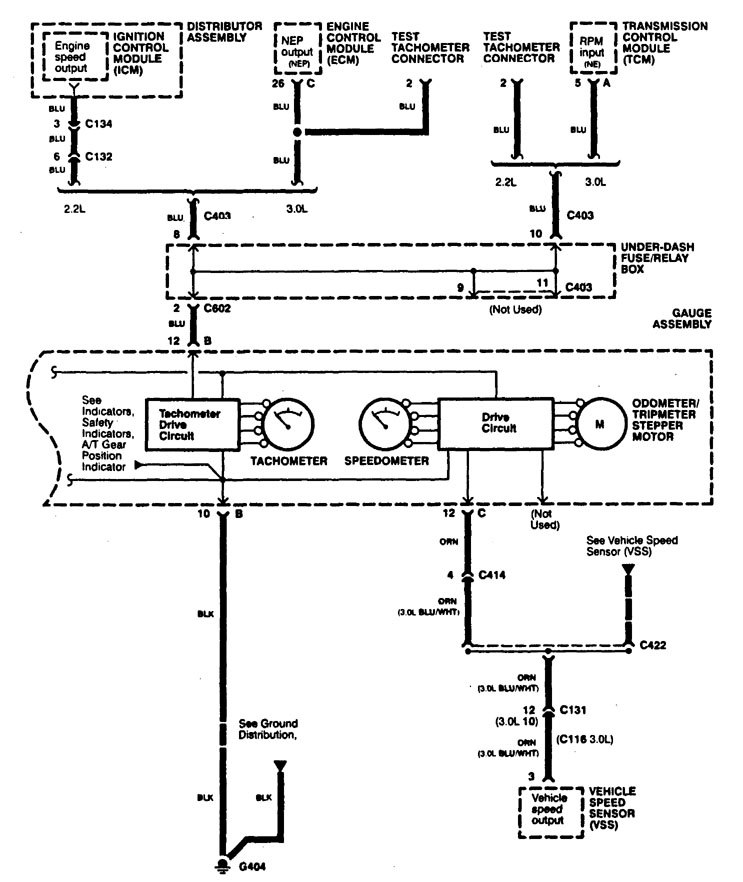

Acura CL - wiring diagram instrumentation (part 2)
Acura CL – wiring diagram instrumentation (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
