Volvo 960 (1996) – wiring diagrams – headlamps

Year of productions: 1996

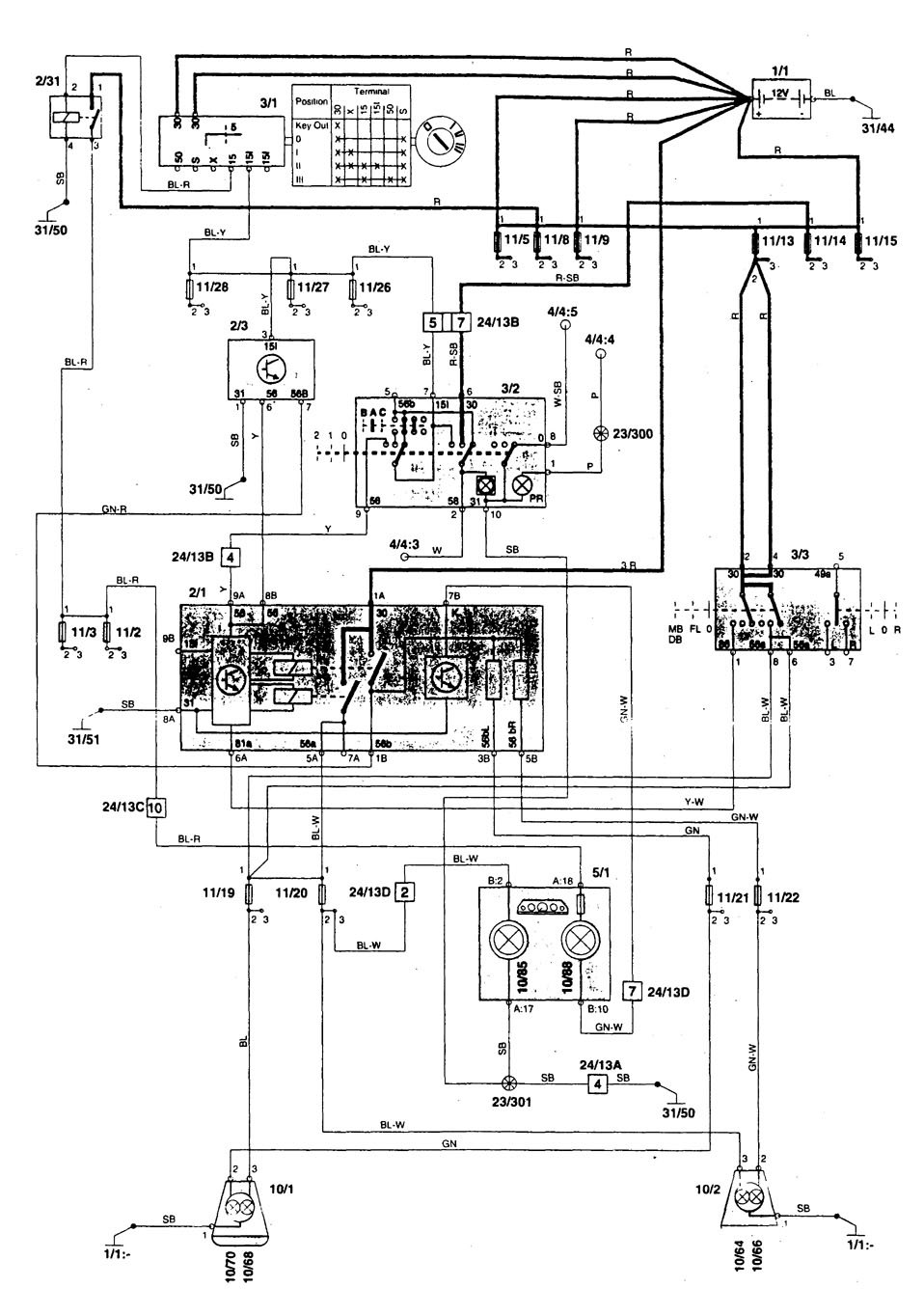

Volvo 960 – wiring diagram – headlamps (part 1)

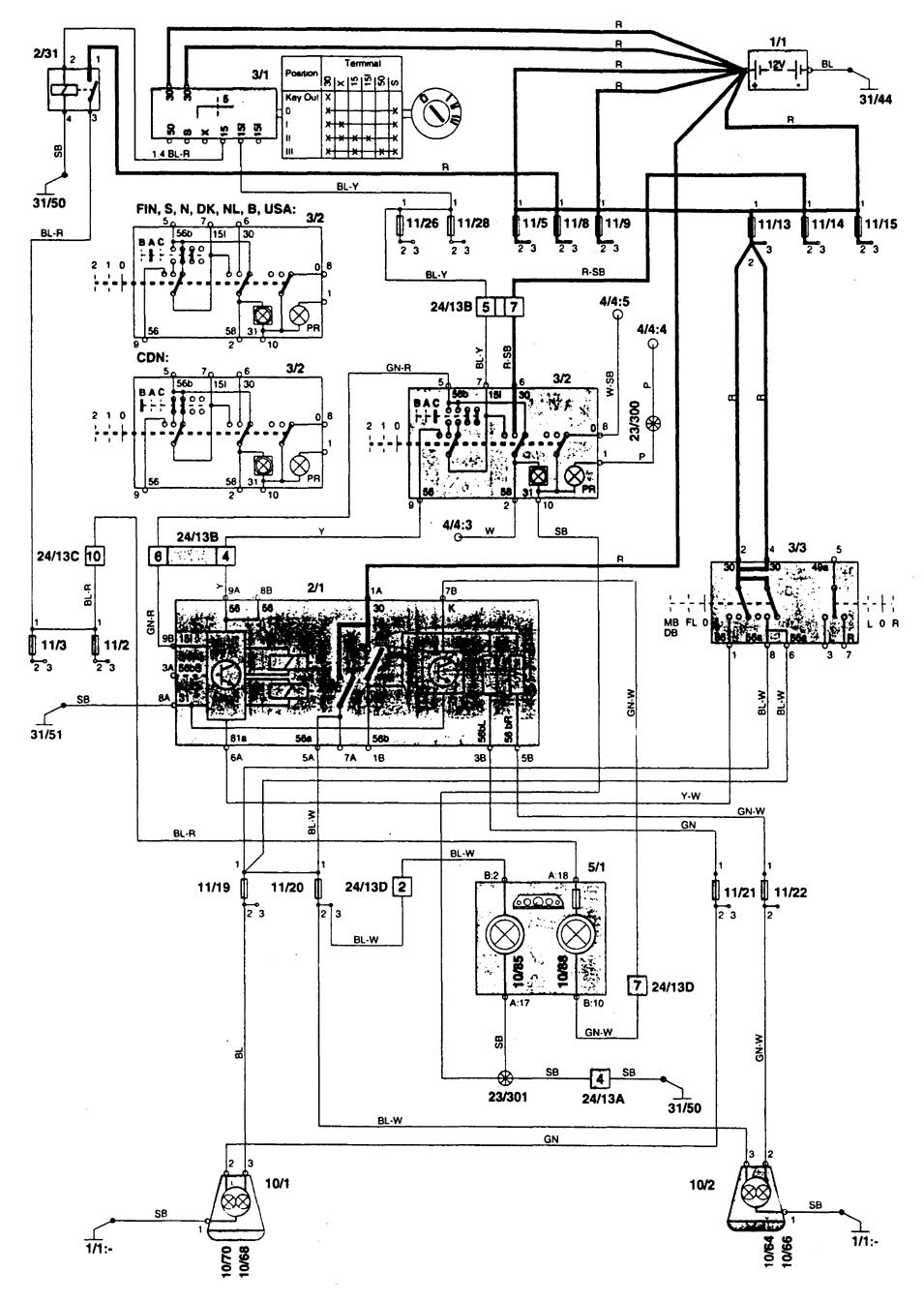

Volvo 960 – wiring diagram – headlamps (part 2)

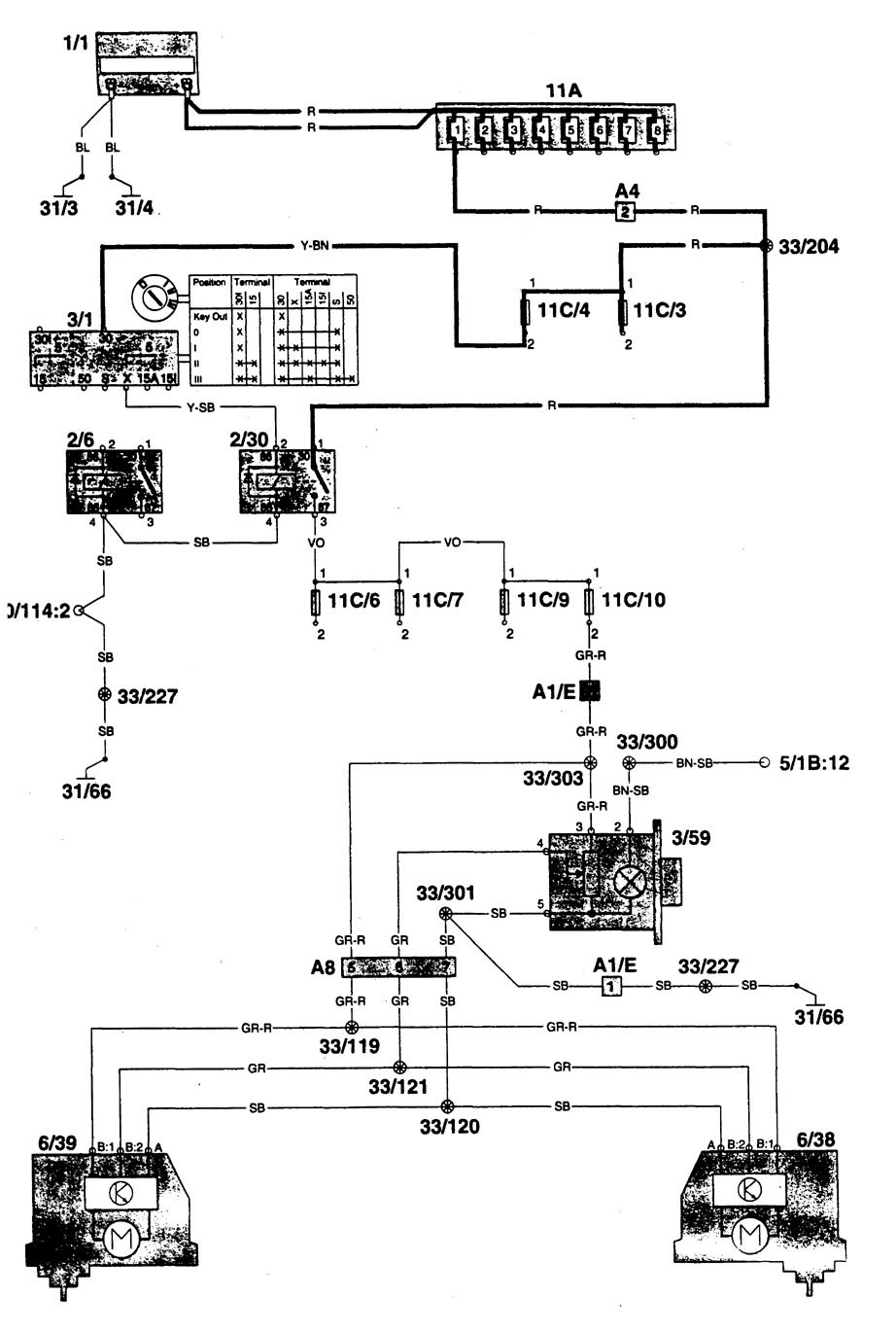

Volvo 960 – wiring diagram – headlamps (part 3)

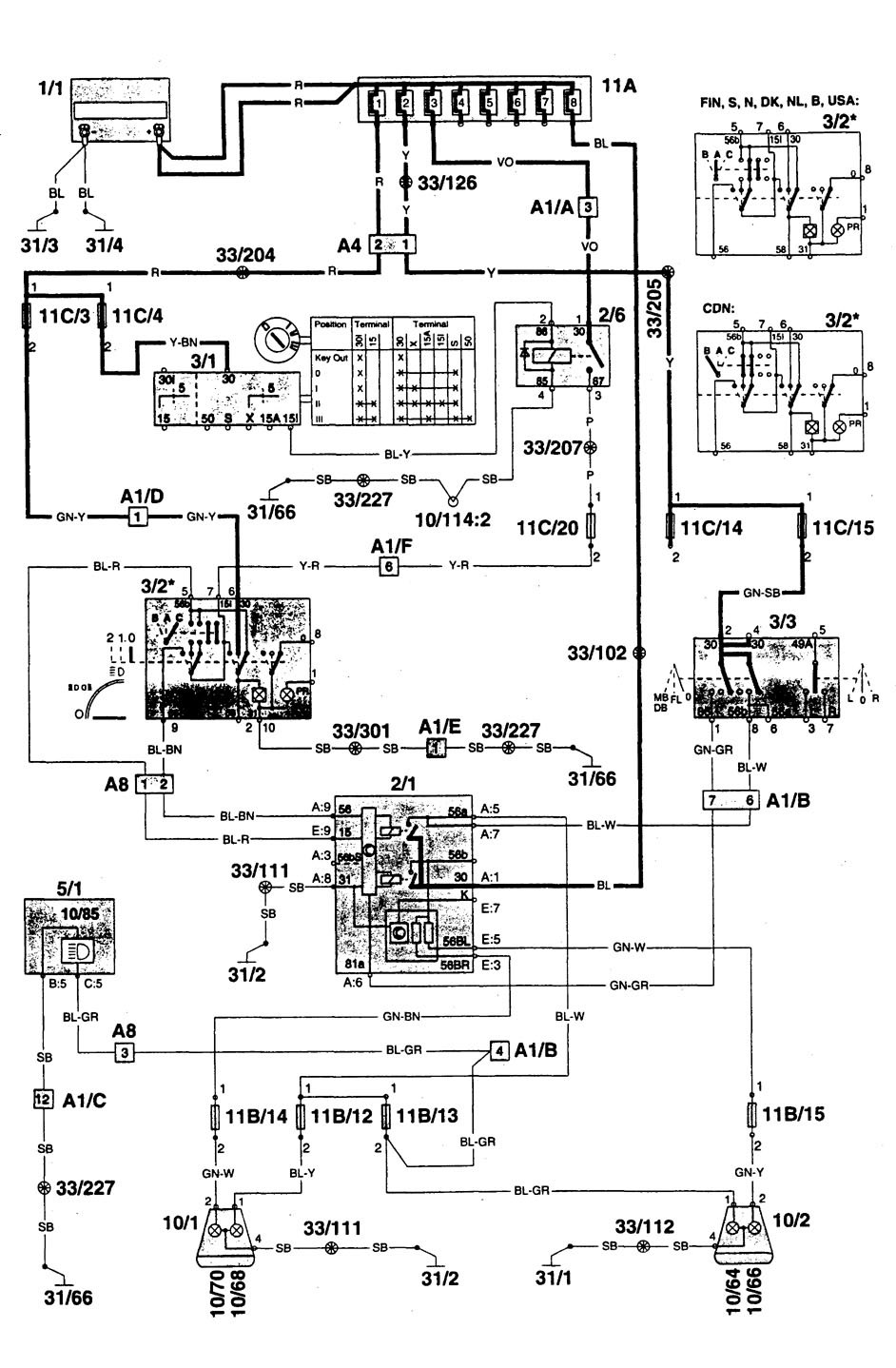

Volvo 960 – wiring diagram – headlamps (part 4)

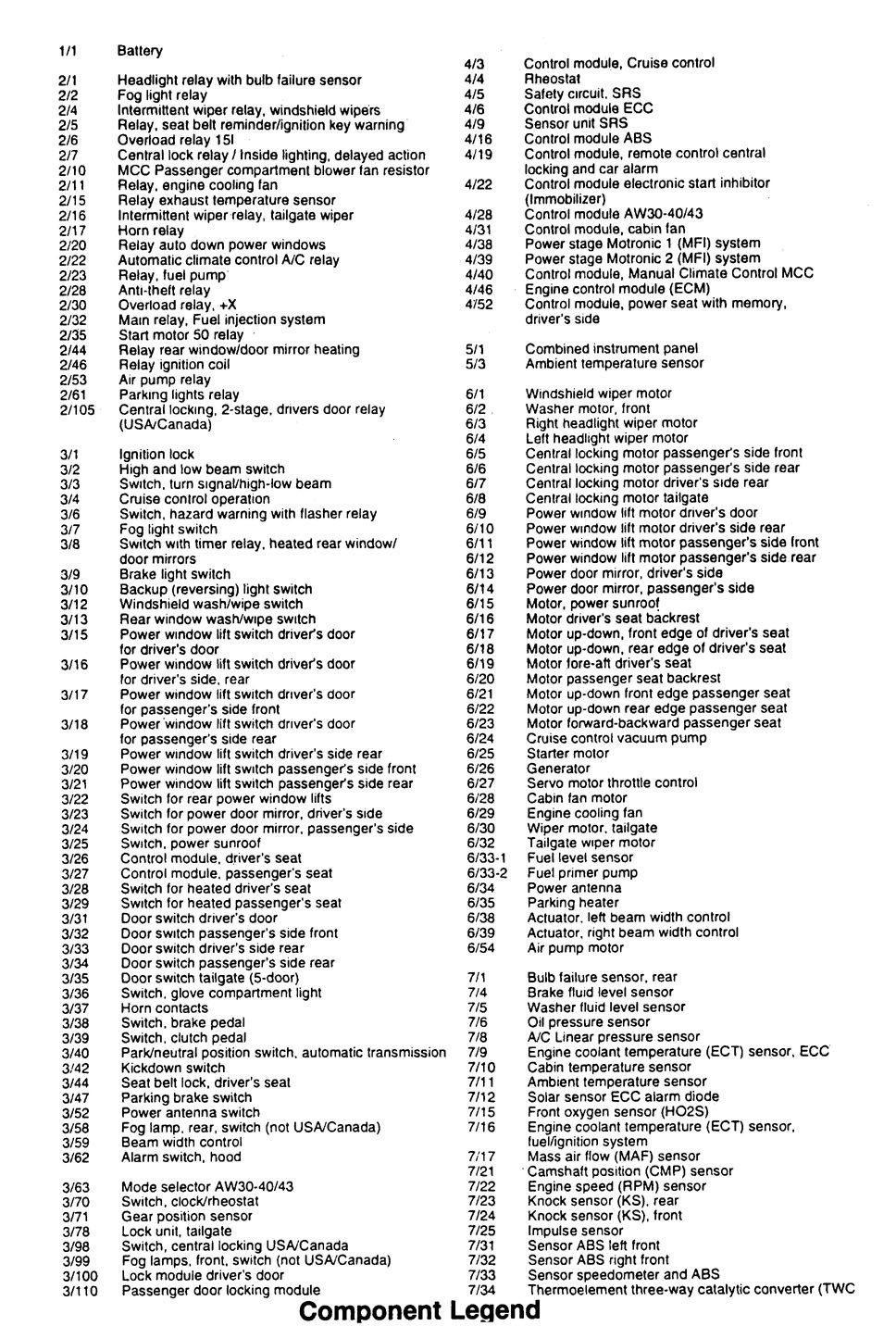

Volvo 960 – wiring diagram – headlamps (part 5)

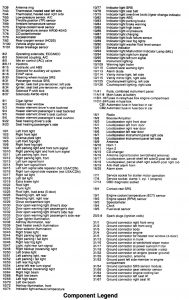

Volvo 960 – wiring diagram – headlamps (part 6)

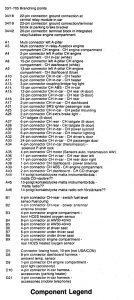

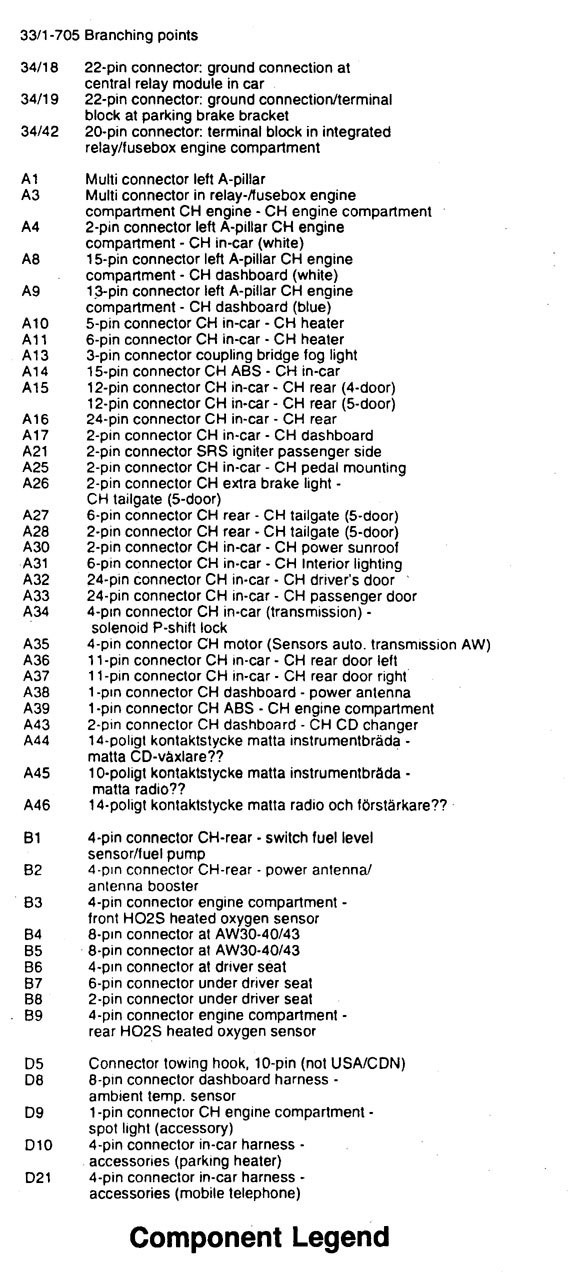

Volvo 960 – wiring diagram – headlamps (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
