Volvo 850 (1995) – wiring diagrams – starting

Volvo 850 (1995) – wiring diagrams – starting

Year of productions:  1995

Starting

Volvo 850 - wiring diagram - starting (part 1)
Volvo 850 – wiring diagram – starting (part 1)

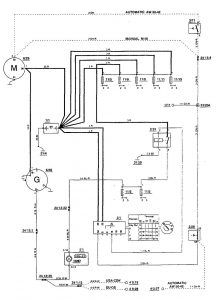

Volvo 850 - wiring diagram - starting (part 2)
Volvo 850 – wiring diagram – starting (part 2)
Volvo 850 - wiring diagram - component (part 1)
Volvo 850 – wiring diagram – component (part 1)
Volvo 850 - wiring diagram - component (part 2)
Volvo 850 – wiring diagram – component (part 2)
Volvo 850 - wiring diagram - component (part 3)
Volvo 850 – wiring diagram – component (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
