Volvo 760 (1990) – wiring diagrams – horn
Year of productions: 1990

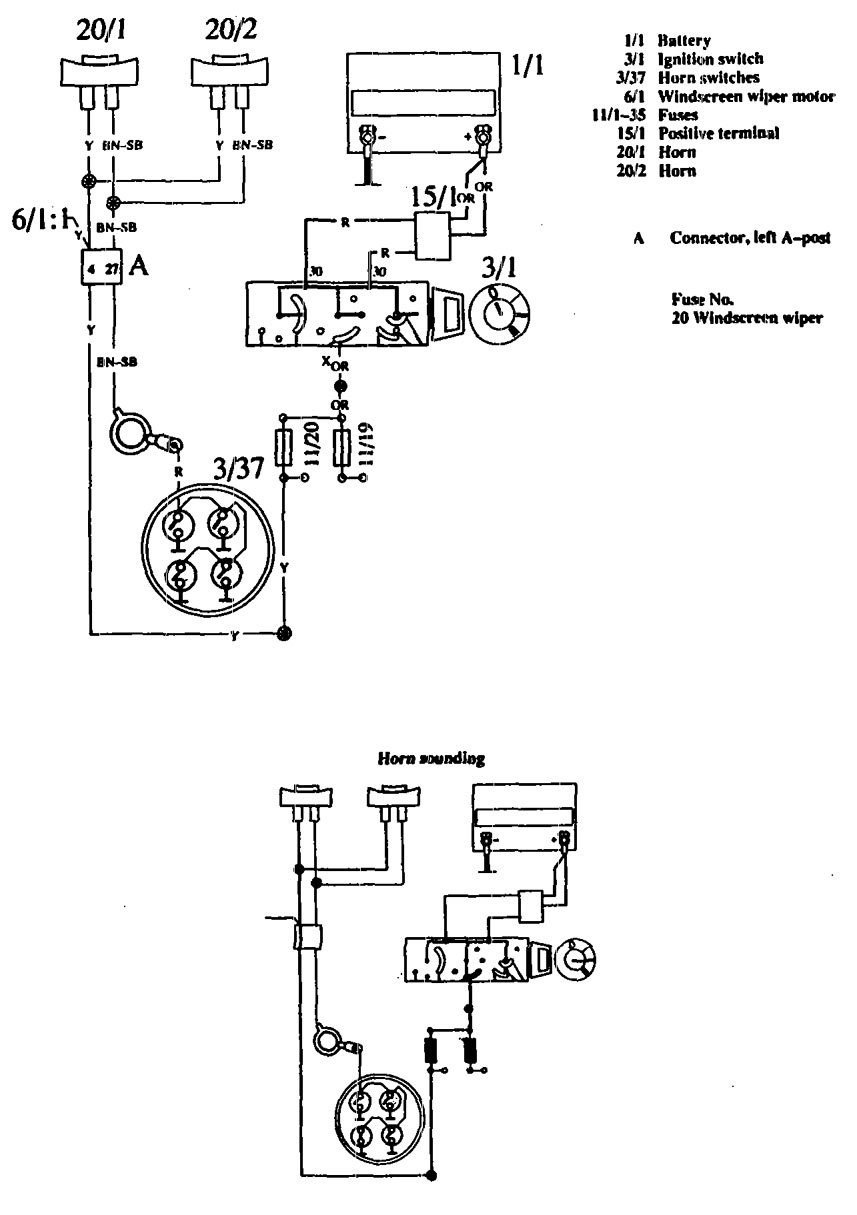

Horn
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
