Volvo 245 (1988 – 1989) – wiring diagrams – starting

Volvo 245 (1988 – 1989) – wiring diagrams – starting

Year of productions:  1988, 1989

Starting

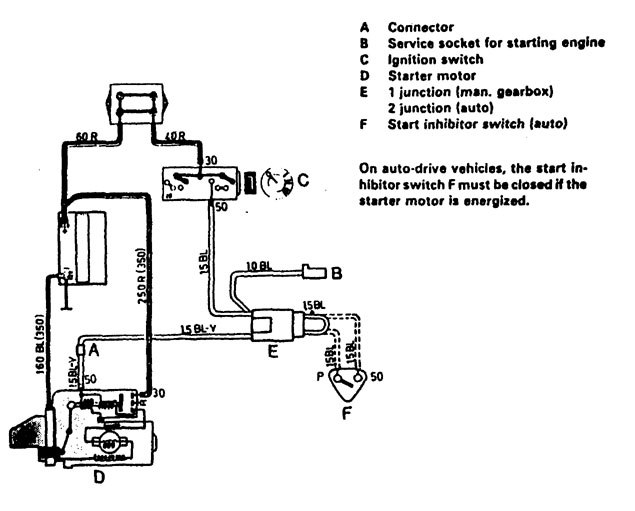

Volvo 245 – wiring diagram – starting

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
