Toyota 4Runner (2009) – fuse box diagram

Toyota 4Runner (2009) – fuse box diagram

Year of production: 2009

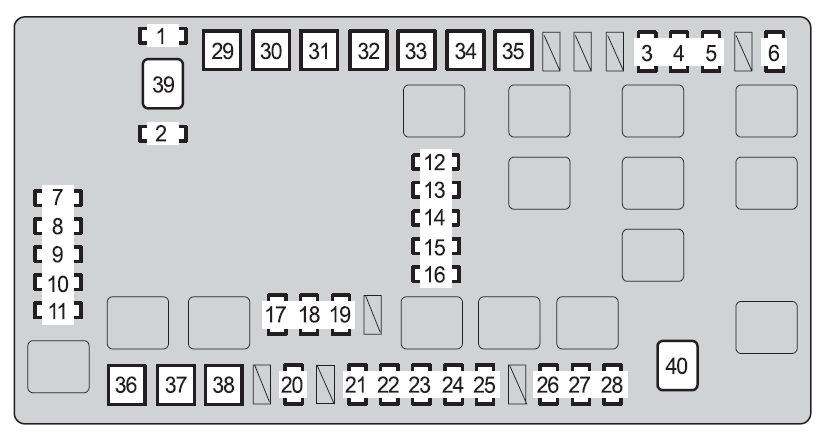

Engine compartment

Toyota 4Runner - wiring diagram - fuse box diagram - engine compartment
Toyota 4Runner – wiring diagram – fuse box diagram – engine compartment
Fuse Ampere rating [A] Circuit
1 SPARE 10 Spare fuse
2 SPARE 15 Spare fuse
3 STOP 10 Stop/tail lights, high mounted stoplight, shift lock control system, antilock brake system, traction control
system (2WD models), active traction control system (4WD models), vehicle stability control system,
rear height control air suspension, multiport fuel injection system/sequential multiport fuel injectionsystem, trailer brake controller, trailer lights (tail lights)
4 AC 115V INV 15 AC inverter
5 FR FOG 15 Front fog lights
6 OBD 7,5 On-board diagnosis system
7 HEAD (LO RH) 10 Right-hand headlight (low beam)
8 HEAD (LO LH) 10 Left-hand headlight (low beam)
9 HEAD (HI RH) 10 Right-hand headlight (high beam)
10 HEAD (HI LH) 10 Left-hand headlight (high beam)
11 EFI NO.2 10 Multiport fuel injection system/ sequential multiport fuel injection system
12 HEATER NO.2 7,5 Air conditioning system
13 AIRSUS NO.2 10 Rear height control air suspension
14 SEAT HEATER 25 Seat heaters
15 DEFOG 30 Back window defogger, multiport fuel injection system/sequential multiport fuel infection system
16 MIR HEATER 10 Outside rear view mirror heater
17 DOME 10 Interior light, personal lights, wireless remote control system, door courtesy lights, gauge and meter, vanity lights, instrument panel lights, running board lights, multiplex communication system
18 RADIO NO.1 20 Audio system, navigation system, rear seat entertainment system
19 ECU-B 10 Anti-lock brake system, traction control system (2WD models), active traction control system (4WD models), vehicle stability control system, air conditioning system, multiplex communication system, theft deterrent system, driving position memory system, front passenger occupant classification system
20 ALT-S 7,5 Charging system
21 HORN 10 Horns
22 A/F HEATER 15 A/F sensor
23 TRN-HAZ 15 Turn signal lights, emergency flashers
24 ETCS 10 Multiport fuel injection system/ sequential multiport fuel injection system
25 EFI 20 Multiport fuel injection system/sequential multiport fuel injection system
25 DR/LCK 20 Power door lock system
27 TOWING 30 Towing converter
28 RADIO NO.2 20 Audio system
29 A/PUMP 50 Multiport fuel injection system/sequential multiport fuel injection system
30 AIRSUS 50 Rear height control air suspension
31 AM1 50 ACC, CIG, IG1, ECU-IG, FR WIPWSH, RR-WSH, 4WD, and STA fuses
32 TOWING BRK 30 Trailer brake controller
33 J/B 50 PWR OUTLET, D P/SEAT, P P/SEAT, POWER, TAIL, SECU/HORN fuses
34 BATT CHG 30 Trailer sub battery
35 TOWING 40 Trailer lights (tail lights)
36 ABS MTR 40 Anti-lock brake system, traction control system (2WD models), active traction control system (4WD models), vehicle stability control system
37 AM2 30 Starter system, IGN, GAUGE, STA NO.2, SRS fuses
38 ABS SOL 30 Anti-lock brake system, traction control system (2WD models), active traction control system (4WD models), vehicle stability control system
39 ALT 140 A/PUMP, AIRSUS, AM1, TOWING BRK, J/B, BATT CHG, TOWING, TAIL, STOP, AC 115V INV, FR FOG, OBD, DEFOG, MIR HEATER fuses
40 HEATER 60 Air conditioning system

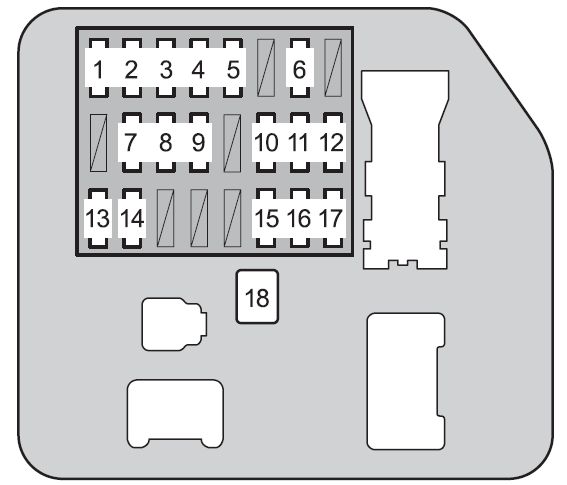

Under the instrument panel

Toyota 4Runner - wiring diagram - fuse box diagram - instrument panel
Toyota 4Runner – wiring diagram – fuse box diagram – instrument panel
Fuse Ampere rating [A] Circuit
1 IGN 10 Multiport fuel injection system/sequential multiport fuel injection system, anti-lock brake system, traction control system (2WD models), active traction control system (4WD models), vehicle stability
control system, meter and gauge, front passenger occupant classification system
2 SRS 10 SRS airbag system
3 GAUGE 7,5 Meter and gauge
4 STA NO.2 7,5 Starting system, multiport fuel injection system/sequential multiport fuel injection system
5 FR WIP-WSH 30 Windshield wipers and washer
6 4WD 20 4WD control system
7 D P/SEAT 30 Driver’s power seat
8 P P/SEAT 30 Front passenger’s power seat
9 PWR OUTLET 15 Power outlets
10 RR WSH 15 Back window washer, multiplex communication system
11 ECU-IG 10 Shift lock control system, power windows, anti-lock brake system, traction control system (2WD models), active traction control system (4WD models), vehicle stability control system, electric moon roof, multiplex communication system, theft deterrent system, rear height control air suspension, tire pressure warning system, driving position
memory system
12 IG1 15 Anti-lock brake system, traction control system (2WD models), active traction control system (4WD models), vehicle stability control system, air conditioning system, charging system, back window defogger, back-up lights, emergency flashers, seat heaters, AC inverter, instrument panel light control, auto anti-glare inside rear view mirror, seat belt tension reducer
13 STA 7,5 No circuit
14 SECU/HORN 10 Theft deterrent system
15 TAIL 10 Tail lights, license plate lights, parking lights, instrument panel light control, multiport fuel injection system/sequential multiport fuel injection system, instrument panel lights, meter and gauge, glove box light
16 ACC 7,5 Power outlets, outside rear view mirrors, audio system, navigation system, shift lock control system, instrument panel lights, rear seat entertainment system
17 CIG 10 No circuit
18 POWER 30 Power windows, electric moon roof

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
