TATA Indigo Manza – fuse box diagram

3 December 2017 admin Indigo, TATA 0

Year of production:

Engine fuse box of Quadrajet

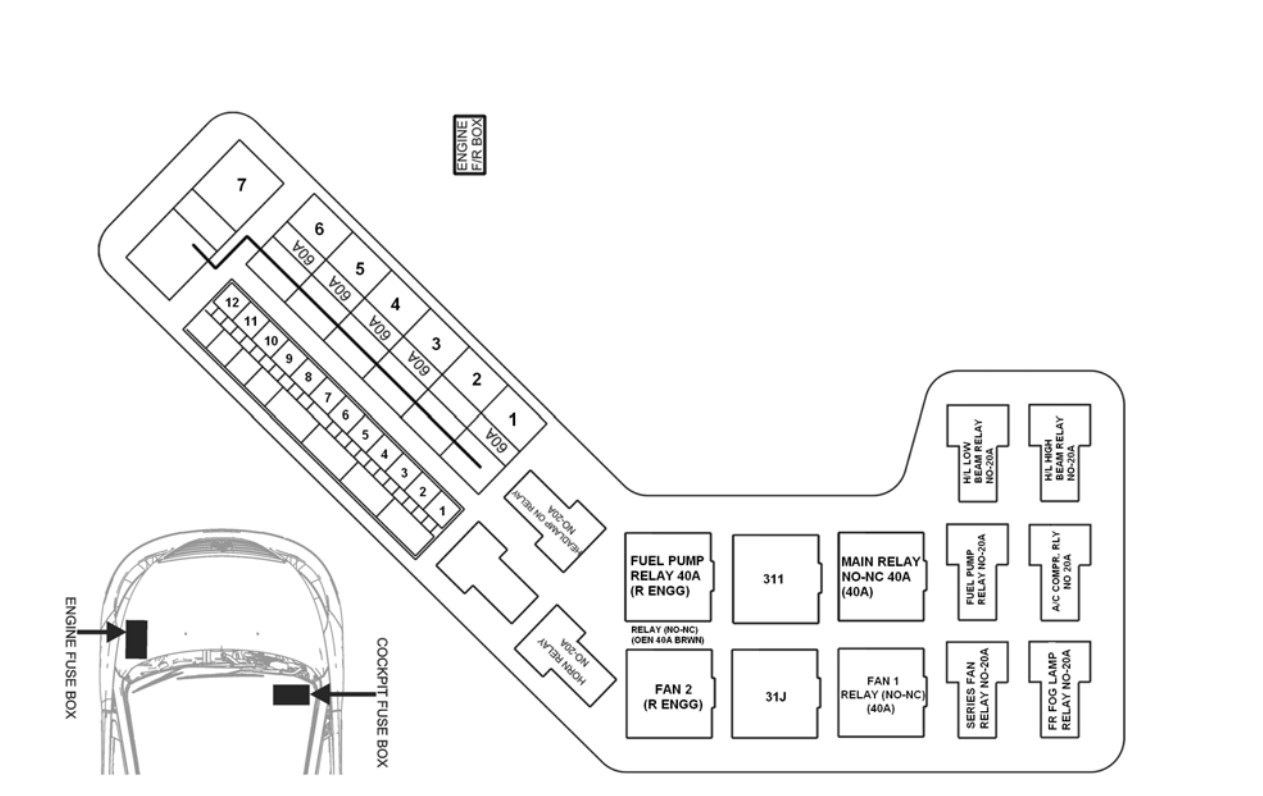

TATA Indigo Manzda - fuse box - engine compartment (Quadrajet)
TATA Indigo Manzda – fuse box – engine compartment (Quadrajet)
Fuse Ampere rating [A] Function
1 30 Fan 1
2 30 Fan 2
3 15 HI low beam
4 15 HI high beam
5 30 Contact main relay
6 15 Coil main relay
7 20 ECU & sensor W/H
8 10 Fuel filter & ECU
9 10 Glow plug timer
10 15 Fuel pump relay
11 10 ECU
12 25 ABS



Fuse Ampere rating [A] Function
1 60 Fan 1
2 BLANK BLANK
3 60 Fan 1 & fan 2
4 60 Alternator, GPT
5 60 Ignition
6 60 ACC
7 BLANK BLANK

Engine fuse box of Safire

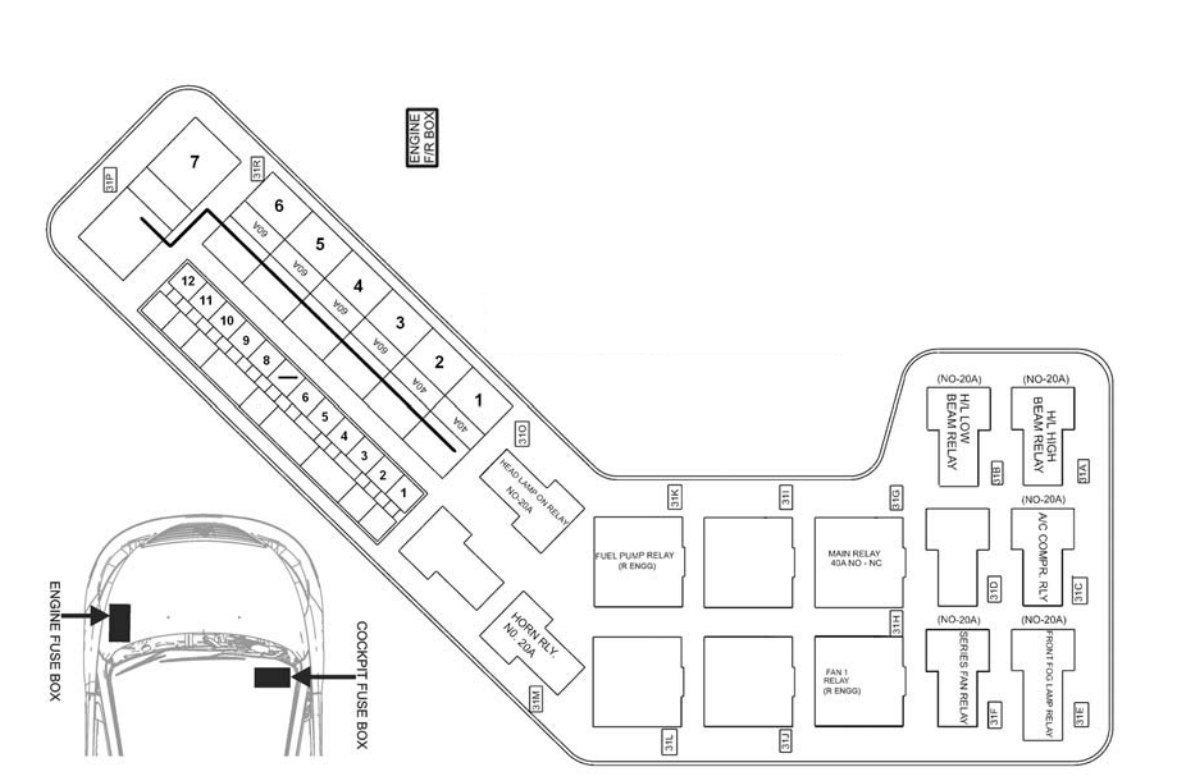

TATA Indigo Manzda - fuse box - engine compartment (Safire)
TATA Indigo Manzda – fuse box – engine compartment (Safire)
Fuse Ampere rating [A] Function
1 BLANK BLANK
2 30 Series fan relay
3 15 HI low beam
4 15 HI high beam
5 30 Main relay
6 15 Main relay coil
7 BLANK BLANK
8 10 ECU
9 10 ECU (TBA)
10 20 Series relay/fuel pump
11 10 ECU
12 25 ABS



Fuse Ampere rating [A] Function
1 60 Fan 1
2 40 ECU
3 60 Series fan relay
4 60 Main RLY/ECU
5 60 Ignition
6 60 HEAD LAMP/BLOWER

Fuse box

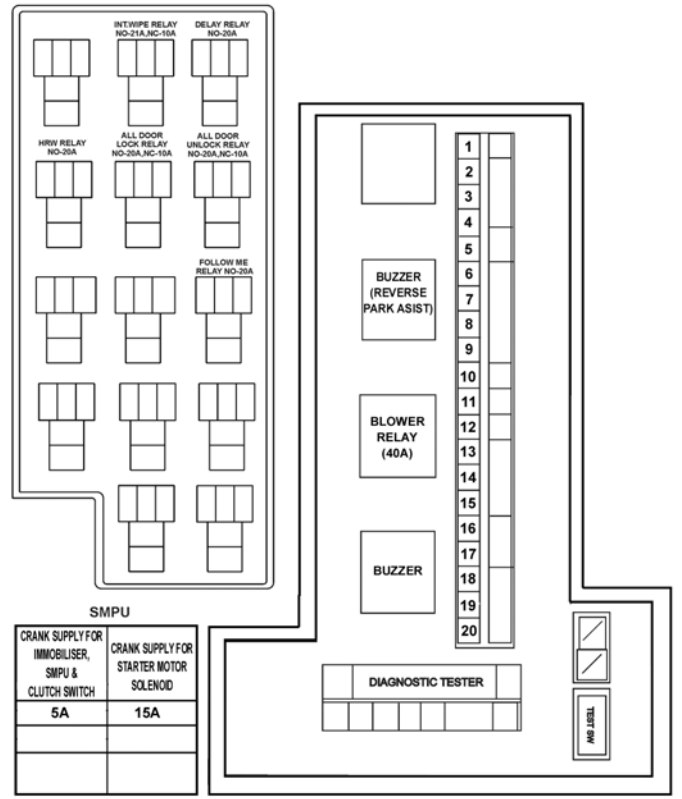

TATA Indigo Manzda - fuse box

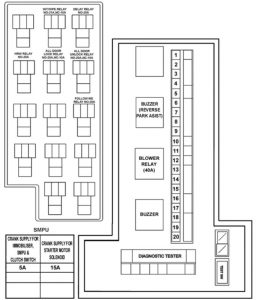

TATA Indigo Manzda – fuse box
Fuse Function Ampere rating [A]
1 HORN 15
2 ROOF, ENGINE & LOAD AREA LAMP 5
3 MUSIC SYSTEM ,CLOCK & INSTRUMENT CLUSTER 15
4 STOP LAMP & HIGH MOUNTED STOP LAMP 10
5 HEATED RR WINDOWS 25
6 IMMOBILIZER & DIAGNOSTIC 5
7 CDL 10
8 COIL BLOWER RELAY 5
9 MOBILE CHARGER & REVERSE LAMP (SENSER W/H) 15
10 CASSETTE PLAYER & RADIO 10
11 POSITION LAMP LH 5
12 POSITION LAMP RH 5
13 FOG LAMP 15
14 BCM 20
15 H/L RLY COIL 10
16 AC CONTROLS 10
17 VENTILATION MOTOR, HVAC 30
18 WASH & WIPERS 20
19 INST. CLUSTER, FUEL CUT OFF 10
20 ABS 10

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
