Peugeot 508 (from 2010) – fuse box diagram
Year of production: 2010, 2011, 2012, 2013, 2014, 2015, 2016

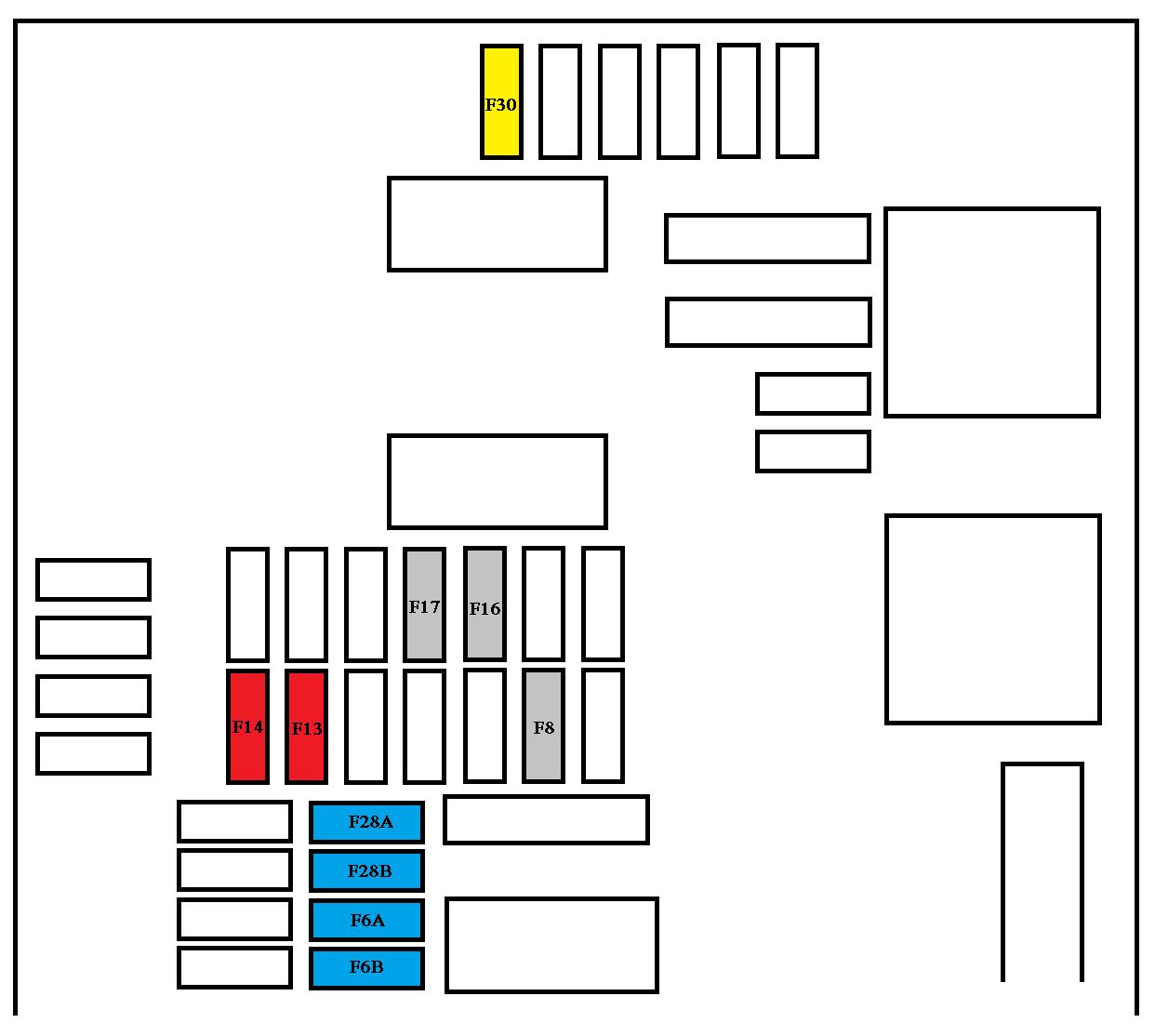

Fuses behind the glove box
| Fuse | Ampere rating [A] | Functions |
| F6 A or B | 15 | Audio system |
| F8 | 3 | Alarm |
| F13 | 10 | Front cigar lighter |
| F14 | 10 | Front 12 V socket |
| F16 | 3 | Rear courtesy lamp, rear map reading lamps |
| F17 | 3 | Rear courtesy lamp, courtesy mirror |
| F28 A or B | 15 | Audio system |
| F30 | 20 | Rear wiper |
| F32 | 10 | Audio amplifier |

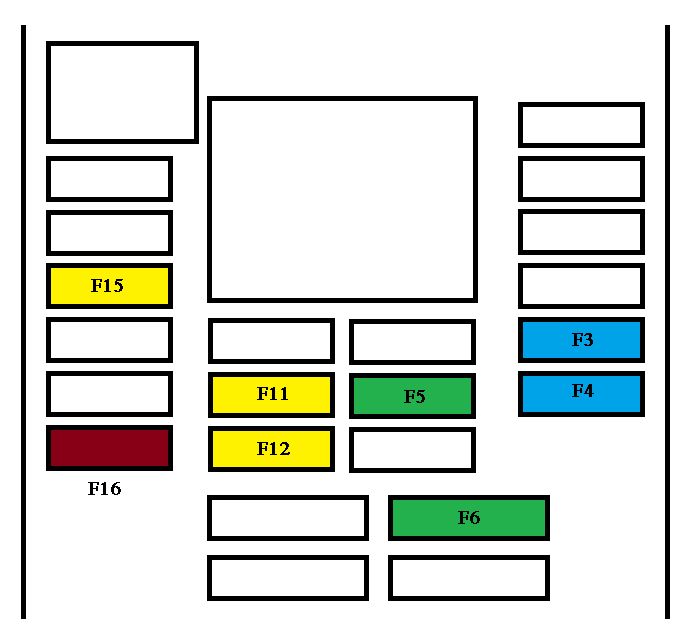

Dashboard fuses
The fusebox is placed in the lower dashboard (right-hand side).
| Fuse | Ampere rating [A] | Functions |
| F3 | 15 | Driver’s electric window panel, 12 V socket for rear seats |
| F4 | 15 | 12 V socket in boot |
| F5 | 30 | One-touch rear window |
| F6 | 30 | One-touch front window |
| F11 | 20 | Trailer unit. |
| F12 | 20 | Audio amplifier |
| F15 | 20 | Panoramic sunroof blind (SW) |
| F16 | 5 | Driver’s electric window switch panel |

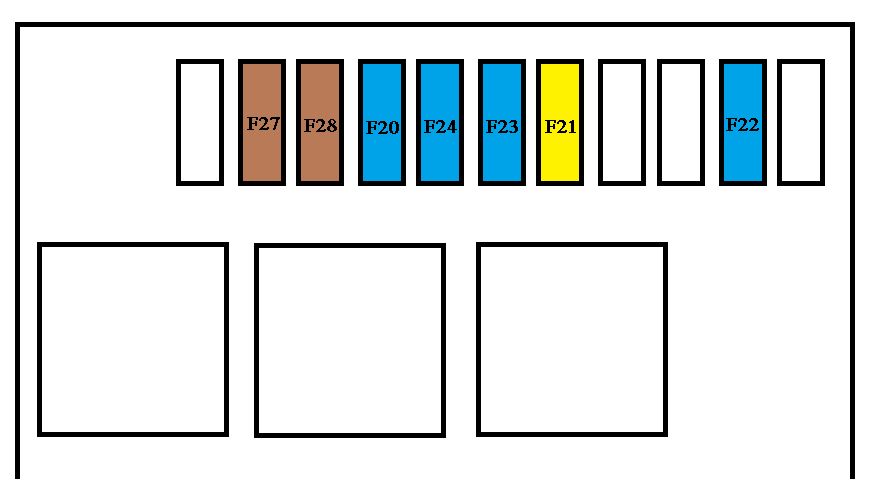

Engine compartment fuses
The fusebox is placed in the engine compartment near the battery.
| Fuse | Ampere rating [A] | Functions |
| F20 | 15 | Front/rear screenwash pump |
| F21 | 20 | Headlamp wash pump |
| F22 | 15 | Horn |
| F23 | 15 | Right-hand main beam headlamp |
| F24 | 15 | Left-hand main beam headlamp |
| F27 | 5 | Left hand lamp mask |
| F28 | 5 | Right hand lamp mask |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and marke
