Subaru Tribeca (2006 – 2007) – fuse box diagram

Subaru Tribeca (2006 – 2007) – fuse box diagram

Year of production: 2006, 2007

Fuse panel located in the passenger compartment

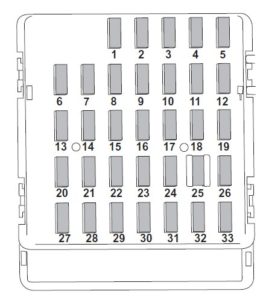

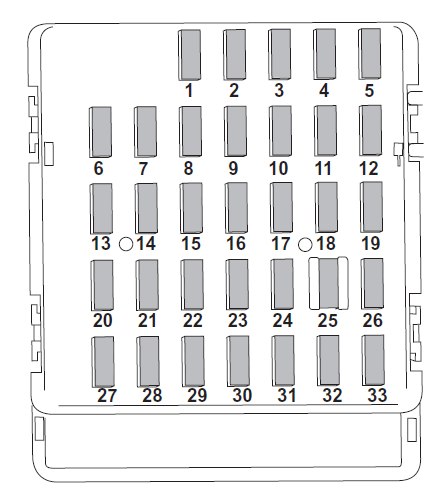

Subaru Tribeca - fuse box - passenger compartment
Subaru Tribeca – fuse box – passenger compartment
Fuse Ampere rating [A] Circuit
1 20 Trailer hitch connector
2
3 15 Door locking
4 7,5 Front wiper deicer relay, Moonroof
5 7,5 Combination meter
6 7,5 Remote control rear view mirrors, Seat heater relay
7 15 Combination meter, Integrated unit
8 20 Stop light
9 20 Mirror heater, Front wiper deicer
10 7,5 Power supply (Battery)
11 7,5 Turn signal unit
12 15 Automatic transmission unit, SRS airbag system (Sub), Engine control unit, Integrated unit
13 20 Cargo socket
14 15 Position light, Tail light, Rear combination light
15 20 Console socket
16 10 Illumination
17 15 Seat heaters
18 10 Backup light
19 7,5 Headlight right side relay
20
21 7,5 Starter relay
22 15 Air conditioner, Rear window defogger relay coil
23 15 Rear wiper, Rear window washer
24 15 Audio unit
25 15 SRS airbag system (Main)
26 7,5 Power window relay
27 15 Rear blower fan
28 15 Rear blower fan
29 15 Fog light
30 30 Front wiper
31 7,5 Auto air conditioner unit, Integrated unit
32 7,5 Headlight left side relay
33 7,5 Vehicle dynamics control unit

Fuse panel located in the engine compartment

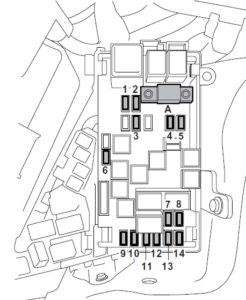

Subaru Tribeca - fuse box - engine  compartment
Subaru Tribeca – fuse box – engine  compartment
Fuse Ampere rating [A] Power consumer
1 30 Vehicle dynamics control unit
2 25 Main fan
3 25 Main fan
4 15 Headlight (right side)
5 15 Headlight (left side)
6 20 Backup
7 15 Horn
8 25 Rear window defogger
9 15 Fuel pump
10 15 Automatic transmission control unit
11 7,5 Engine control unit
12 15 Turn and hazard warning flasher
13 20 Parking switch
14 7,5 Alternator
A Main fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
