Subaru Legacy (2004) – fuse box diagram

Subaru Legacy (2004) – fuse box diagram

Year of production: 2004

Fuse panel located behind the coin tray

2.5 liter models

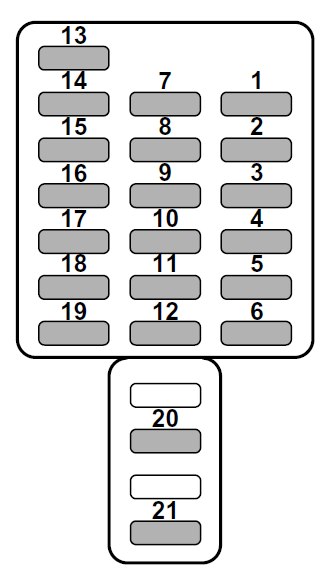

Subaru Legacy - fuse box - behind the coin tray (2.5 liter models)
Subaru Legacy – fuse box – behind the coin tray (2.5 liter models)
Fuse Ampere rating [A] Circuit
1 15 Heater fan
2 15 Heater fan
3 15 Power door lock, Keyless entry
4 20 Mirror heater, Cigarette lighter, Remote controlled rear view mirrors
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Front fog light
8 30 ABS solenoid
9 15 Radio, Clock
10 15 Trailer
11 15 Engine ignition system,  SRS airbag
12 10 Illumination brightness control
13 15 Fuel pump
14 10 Rear window wiper and washer
15 30 Windshield wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Cruise control, ABS control
19 20 Wiper deicer
20 20 Accessory power socket, Seat heater
21 15 Ignition coil and ignitor (CALIFORNIA spec vehicle only)

3.0 liter models

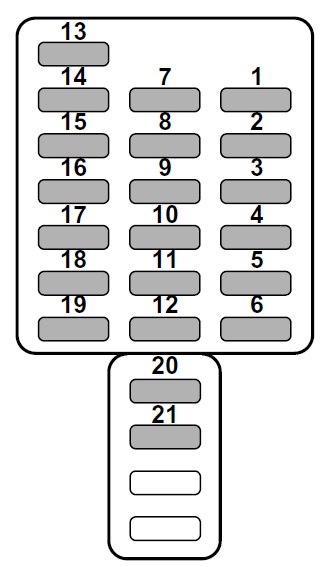

Subaru Legacy - fuse box - behind the coin tray (3.0 liter models)
Subaru Legacy – fuse box – behind the coin tray (3.0 liter models)
Fuse Ampere rating [A] Circuit
1 15 Heater fan
2 15 Heater fan
3 15 Power door lock, Keyless entry
4 20 Cigarette lighter, Remote controlled rear view mirrors, Mirror heater
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Front fog light
8 30 ABS (VDC) solenoid
9 15 Radio, Clock
10 15 Trailer
11 15 Engine ignition system,  SRS airbag
12 10 Illumination brightness control
13 15 Fuel pump
14 10 Rear window wiper and washer
15 30 Windshield wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Cruise control, ABS (VDC) control
19 20 Wiper deicer
20 20 McIntosh audio amp (if equipped)
21 20 Accessory power socket, Seat heater

Fuse panel located in the engine compartment

2.5 liter models

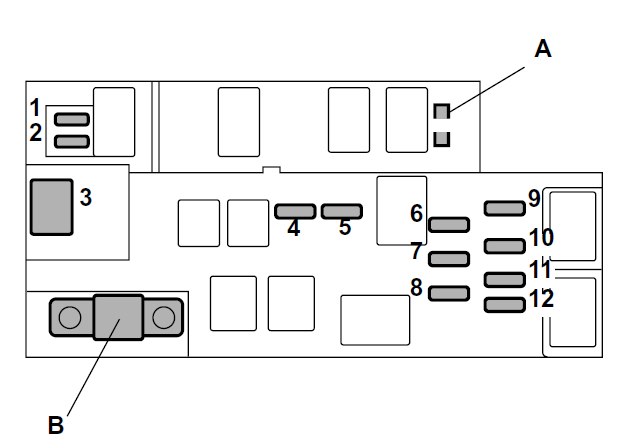

Subaru Legacy - fuse box - engine compartment (2.5 liter models)
Subaru Legacy – fuse box – engine compartment (2.5 liter models)
Fuse Ampere rating [A] Power consumer
1 20 Radiator cooling fan (Main)
2 20 Radiator cooling fan (Sub)
3 30 ABS motor
4 20 Rear window defogger
5 15 Hazard warning flasher, Horn
6 15 Meter, SRS airbag system warning light
7 10 Automatic transmission control unit, ABS UNIT
8 10 Alternator
9 15 Headlight (right side)
10 15 Headlight (left side)
11 20 Lighting switch
12 15 Clock, Interior light
A FWD socket (without SPORTSHIFT mode)
B Main fuse

3.0 liter models

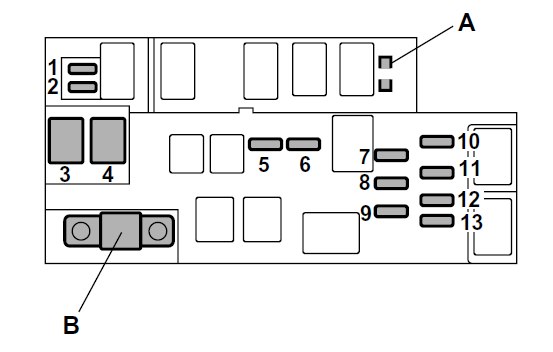

Subaru Legacy - fuse box - engine compartment (3.0 liter models)
Subaru Legacy – fuse box – engine compartment (3.0 liter models)
Fuse Ampere rating [A] Power consumer
1 30 Radiator cooling fan (Main)
2 30 Radiator cooling fan (Sub)
3 30 ABS motor
50 VDC motor
4 30 McIntosh audio amp (if equipped)
5 20 Rear window defogger
6 15 Hazard warning flasher, Horn
7 15 Meter, SRS airbag system warning light
8 10 Automatic transmission control unit, ABS UNIT
9 10 Alternator
10 15 Headlight (right side)
11 15 Headlight (left side)
12 20 Lighting switch
13 15 Clock, Interior light
A FWD socket (without VDC model)
B Main fuse



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
