Subaru Baja (2006) – fuse box diagram

Subaru Baja (2006) – fuse box diagram

Year of production: 2006

Fuse panel located behind the coin tray

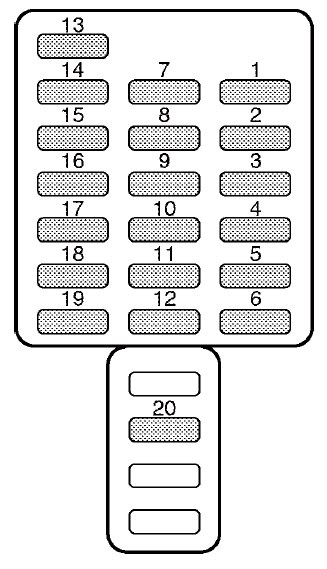

Subaru Baja - fuse box diagram - behind the coin tray
Subaru Baja – fuse box diagram – behind the coin tray
Fuse Ampere rating [A] Circuit
1 15 Heater fan
2 15 Heater fan
3 15 Power door lock, Keyless entry
4 20 Mirror heater. Cigarette lighter, Remote controlled rear view mirrors
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Front fog light
8 30 ABS solenoid
9 15 Radio, Clock
10 15 Trailer
11 15 Engine ignition system, SRS airbag
12 10 Illumination brightness control
13 15 Fuel pump
14 10 Rear window wiper and washer
15 30 Windshield wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Cruise control, ABS control
19 20 Wiper deicer, Sports activity light, Cargo lamp
20 20 Accessory power socket, Seat heater



Fuse panel located in the engine compartment

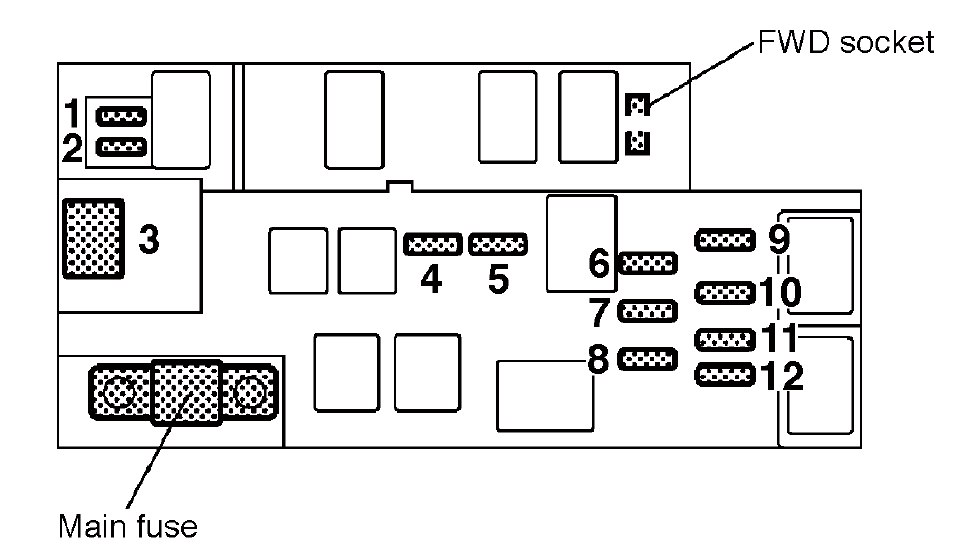

Subaru Baja - fuse box diagram - engine compartment
Subaru Baja – fuse box diagram – engine compartment
Fuse Ampere rating [A] Power consumer
1 20 (Non-turbo) Radiator cooling fan (Main)
30 (Turbo)
2 20 (Non-turbo) Radiator cooling fan (Sub)
30 (Turbo)
3 50 ABS motor
4 20 Rear window defogger
5 15 Hazard warning flasher, Horn
6 15 Meter, SRS airbag system warning light
7 10 Automatic transmission control unit, ABS UNIT
8 10 Alternator
9 15 Headlight (right side)
10 15 Headlight (left side)
11 20 Lighting switch
12 15 Clock, Interior light

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
