Skoda Yeti (2011) – fuse box diagram
Year of production: 2011

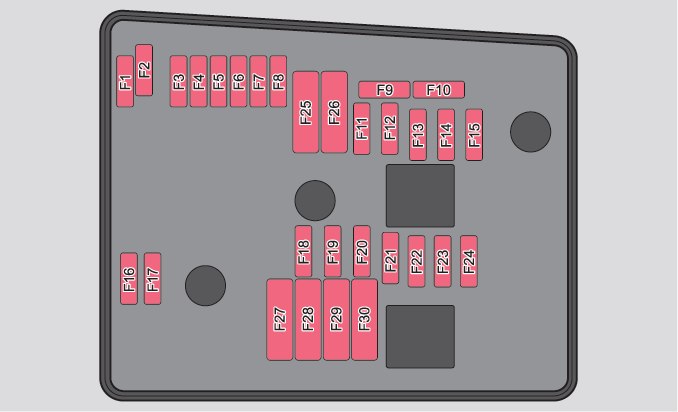

Fuse box in engine compartment
| Number | Power consumer | Ampere rating [A] |
| F1 | Not assigned | — |
| F2 | Control unit for automatic gearbox DQ 200 | 30 |
| F3 | Measuring circuit | 5 |
| F4 | ABS control unit | 20 |
| F5 | Control unit for automatic gearbox | 15 |
| F6 | Instrument cluster, windshield wiper lever and turn signal light lever | 5 |
| F7 | Power suppy terminal 15, Starter | 40 |
| F8 | Radio | 15 |
| F9 | Phone | 5 |
| F10 | Engine control unit, Main relay | 5/10 |
| F11 | Control unit for auxiliary heating | 20 |
| F12 | Control unit for CAN databus | 5 |
| F13 | Engine control unit | 15/30 |
| F14 | Ignition | 20 |
| F15 | Lambda probe, NOx-sensor, Fuel pump relay | 15 |
| Glow plug system relay | 5 | |
| F16 | Central control unit, right main headlight, right rear light unit | 30 |
| F17 | Horn | 15 |
| F18 | Amplifier for digital sound processor | 30 |
| F19 | Front window wiper | 30 |
| F20 | Control valve for fuel pressure | 10 |
| F21 | Lambda probe | 10/15/20 |
| F22 | Clutch pedal switch, brake pedal switch | 5 |
| F23 | Coolant pump | 5 |
| Charge pressure control solenoid valve, changeover valve for radiator | 10 | |
| Fuel high pressure pump | 15 | |
| F24 | Activated charcoal filter, exhaust gas recirculation valve | 10 |
| F25 | ABS control unit | 40 |
| F26 | Central control unit, left main headlight, left rear light unit | 30 |
| F27 | Glow plug system | 50 |
| F28 | Windscreen heater | 50 |
| F29 | Power supply of the interior | 50 |
| F30 | Terminal Xa) | 40 |
| a) In order not to drain the battery unnecessarily when starting the engine, the electrical components of this terminal are automatically switched off. | ||

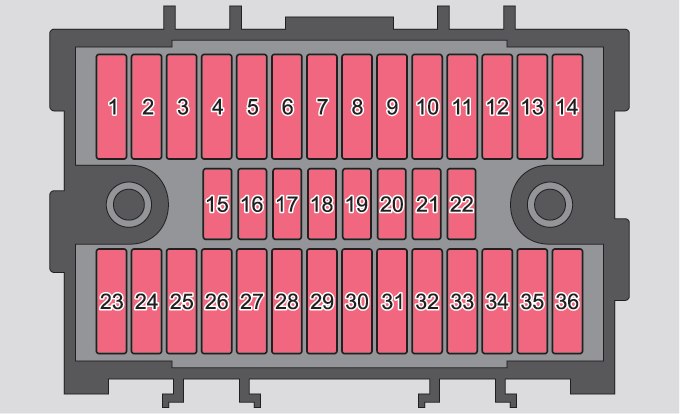

Fuse box in dash panel
| Number | Power consumer | Ampere rating [A] |
| 1 | Heating of the gearbox ventilation (diesel engine) | 10 |
| Control unit for automatic gearbox DQ200 | 10 | |
| 2 | Towing device | 20 |
| 3 | Towing device | 15 |
| 4 | Instrument cluster, windshield wiper lever, turn signal light lever | 5 |
| 5 | Air blower for heating, radiator fan, air conditioning system, Climatronic | 40 |
| 6 | Rear window wiper | 15 |
| 7 | Phone | — |
| 8 | Towing device | 15 |
| 9 | Central control unit – Interior lighting, Rear fog light | 10 |
| 10 | Rain sensor, light switch, diagnostic socket | 10 |
| 11 | Left side cornering lights | 10 |
| 12 | Right side cornering lights | 10 |
| 13 | Radio, changer for mobile navigation | 15 |
| 14 | Towing device | 5 |
| 15 | Light switch | 5 |
| 16 | Heatable washing nozzles | 5 |
| 17 | Control unit for headlamp beam adjustment and headlight swivel | 5 |
| 18 | Diagnostic socket, engine control unit, brake sensor | 10 |
| 19 | Control unit for ABS, ESP, switch for tyre air pressure control, control unit for parking aid, switch for Offroad mode, start/stop button | 5 |
| 20 | Switch and control unit for airbag | 5 |
| 21 | WIV, parking light, dimming mirrors, pressure sensor, telephone preinstallation, air mass meter | 5 |
| 22 | Instrument cluster, control unit for electromechanical power steering, Haldex | 5 |
| 23 | Central locking system and bonnet lid | 15 |
| 24 | Rear power window | 30 |
| 25 | Rear window heater | 25 |
| Rear window heater, Auxiliary heating (auxiliary heating and ventilation) | 30 | |
| 26 | Power socket in the luggage compartment | 20 |
| 27 | Electric sliding/tilting roof, electric sun screen | 30 |
| 28 | Fuel pump relay, control unit for fuel pump, injection valves | 15 |
| 29 | Front power window | 30 |
| 30 | Front and rear lighter | 20 |
| 31 | Headlight cleaning system | 20 |
| 32 | Front seat heating, regulator for seat heating | 20 |
| 33 | Heating, Climatic, Climatronic | 7,5 |
| 34 | Alarm, spare horn | 5 |
| 35 | Control unit for automatic gearbox DQ200 | 10 |
| 36 | Not assigned | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
