Skoda Superb (2016) – fuse box diagram
Year of production: 2016

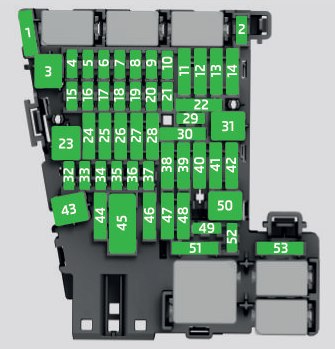

Fuse box in dash panel
| Number | Power consumer |
| 1 | Not assigned |
| 2 | Not assigned |
| 3 | Not assigned |
| 4 | Not assigned |
| 5 | Databus |
| 6 | Alarm sensor |
| 7 | Air conditioning system, heating, receiver for remote control for the auxiliary heating, selector lever for the automatic gearbox, relay for the rear window heater, relay for the windscreen heater |
| 8 | Light switch, rain sensor, diagnostic connector, parking brake, lighting of the instrument cluster |
| 9 | USB socket |
| 10 | Touch screen, TV tuner |
| 11 | Left side belt tensioner |
| 12 | Radio |
| 13 | Shock absorber setting |
| 14 | Air blower for air conditioning,heating |
| 15 | Electric steering lock |
| 16 | Signal amplifier for telephone |
| 17 | Instrument cluster, emergency operation |
| 18 | Reversing camera |
| 19 | KESSY |
| 20 | SCR |
| 21 | Haldex clutch, air conditioning compressor (GreenLine) |
| 22 | Towing hitch |
| 23 | Right side headlamp |
| 24 | Panorama roof |
| 25 | Central locking – drivers door and rear left, rear view mirror |
| 26 | Heated front seats |
| 27 | Music amplifier |
| 28 | Towing hitch – contact in the socket |
| 29 | Operating lever underneath the steering wheel |
| 30 | 12-volt socket in luggage compartment |
| 31 | Left side headlamp |
| 32 | Parking aid (Park Assist) |
| 33 | Airbag switch for hazard warning lights |
| 34 | TCS, ESC button, tyre pressure monitor, pressure sensor for air conditioning, reversing light switch, mirror with automatic dimming, START-STOP button, controls for heating the rear seats, sensor for air conditioning, parking brake, light switch |
| 35 | Headlight range control, AFS headlamps, diagnostic connector, camera, radar |
| 36 | Headlight right |
| 37 | Headlight left |
| 38 | Towing hitch – contact in the socket |
| 39 | Central locking – passenger door and right rear door, rear view mirror |
| 40 | 12-volt power socket |
| 41 | Right side belt tensioner |
| 42 | Boot lid, headlight washers, windscreen washer system |
| 43 | Visor for gas discharge bulbs, interior lighting |
| 44 | Towing hitch – contact in the socket |
| 45 | Operating the seat adjustment |
| 46 | 230-Volt power socket |
| 47 | Rear window wiper |
| 48 | Blind spot detection |
| 49 | Coil on starter relay, clutch pedal switch |
| 50 | Opening the boot lid |
| 51 | Heating of the rear seats |
| 52 | Cooling of the front seats |
| 53 | Relay for rear window heater |

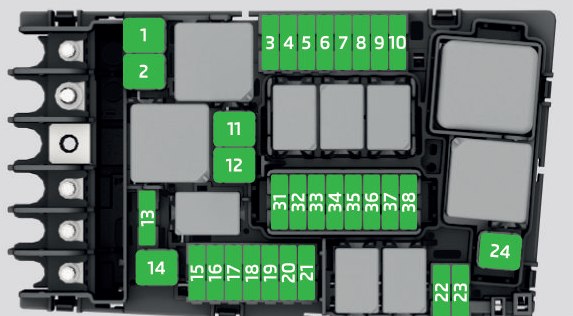

Fuse box in engine compartment
| Number | Power consumer |
| 1 | ESC, parking brake |
| 2 | ESC |
| 3 | Engine control unit |
| 4 | Radiator fan, control valve for fuel pressure, relay for electric auxiliary heater |
| 5 | Coil of the ignition relay |
| 6 | Brake sensor |
| 7 | Radiator blind |
| 8 | Lambda probe |
| 9 | Coolant pump, ignition coil, preheating unit, air flow meter |
| 10 | Fuel pump |
| 11 | Electrical auxiliary heating system |
| 12 | Electrical auxiliary heating system |
| 13 | Automatic gearbox |
| 14 | Relay for windscreen heater |
| 15 | Horn |
| 16 | Ignition |
| 17 | ESC, engine control unit, main relay coil |
| 18 | Databus, battery data module |
| 19 | Windscreen wipers |
| 20 | Alarm |
| 21 | Not assigned |
| 22 | Engine control unit |
| 23 | Starter |
| 24 | Electrical auxiliary heating system |
| 31 | Not assigned |
| 32 | Not assigned |
| 33 | SCR |
| 34 | Not assigned |
| 35 | Not assigned |
| 36 | Not assigned |
| 37 | Auxiliary heating |
| 38 | Not assigned |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
