Skoda Superb (2006 – 2007) – fuse box diagram

Skoda Superb (2006 – 2007) – fuse box diagram

Year of production: 2006, 2007

Fuse box

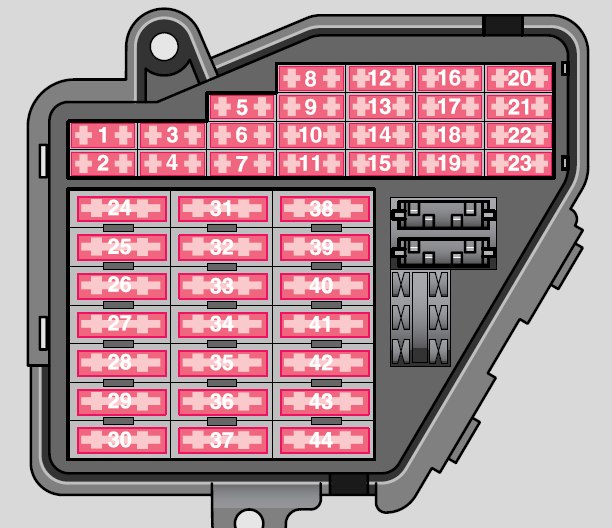

Skoda Superb - fuse box diagram
Skoda Superb – fuse box diagram
Number Power consumer Ampere rating [A]
1 Heatable windscreen washing nozzles 5
2 Turn signals 10
3 Not assigned
4 Licence plate light 5
5 Instrument cluster – warning lights, seat heaters, cruise control system, exterior mirror adjustment, lighting of controls and switches, outside temperature display, air conditioning, audible parking aid, navigation system, multifunction steering wheel 10
6 Heating of the external mirror 5
7 ABS, EDS, ASR, ESP, cruise control system, engine electronics 10
8 Automatic headlight beam adjustment 5
9 Parking aid 5
10 CD changer, mobile phone, multifunction steering wheel 5
11 DVD player 7,5
12 Power supply for diagnostic socket 10
13 Brake lights 10
14 Central locking control unit, interior lighting 10
15 Instrument cluster, air conditioning, automatic gearbox, exterior mirror adjustment memory and navigation system 10
16 ESP 5
17 Two-way radio system, special vehicles (police etc.) 10
18 Right main beam 10
19 Left main beam 10
20 Low beam on the right 15
21 Low beam on the left 15
22 Parking light on the right 5
23 Parking light on the left 5
24 Windscreen washer system, windscreen wiper pump and intermittent switch 25
25 Fan for fresh air, the air conditioning unit, Climatronic 30
26 Rear window heating, recirculated air mode 30
27 Not assigned
28 Fuel pump, diesel additional pump 20
29 Engine control 20
30 Electric sliding/tilting roof/DVD player 20/7,5
31 Reversing lights, cruise control system, automatic gearbox, automatic dimming interior mirror 15
32 Engine control, cruise control system 20
33 Cigarette lighter 15
34 Engine control 15
35 Trailer socket 30
36 Fog lights 15
37 Radio, navigation 20
38 Central locking system 15
39 Hazard warning light system 15
40 Horn 25
41 Not assigned
42 ESP 25
43 Engine control 15
44 Seat heaters 30

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
