Skoda Roomster (2012) – fuse box diagram

Skoda Roomster (2012) – fuse box diagram

Year of production: 2012

Fuse box in dashboard

Skoda Roomster - fuse box diagram - dashboard
Skoda Roomster – fuse box diagram – dashboard
Number Power consumer
1 S-contact
2 Start/stop
3 Instrument cluster, headlight range adjustment
4 ABS control unit
5 Petrol engine: Speed regulating system
6 Reversing light (manual gearbox)
7 Ignition
Engine control unit, automatic gearbox
8 Brake pedal switch, coolant fan
9 Operating controls for the heating, control unit for air conditioning system, parking aid, control unit for cornering lights, coolant fan
10 The air conditioning system
11 Mirror adjustment
12 Control unit for trailer detection
13 Control unit for automatic gearbox
14 Motor for halogen projector headlights with cornering light function
15 Radio navigation system PDA
16 Electrohydraulic power steering
17 START – STOP – radio
Daylight driving lights
18 Mirror heater
19 S-contact
20 Anti-theft alarm system
21 Reversing light, fog lights with the function “CORNER”
22 Operating controls for the heating, control unit for air conditioning system, parking aid, mobile phone, instrument cluster, steering angle sender, ESP, vehicle voltage control unit, multifunction steering wheel
23 Interior lighting, storage compartment and luggage compartment, side lights
24 Central control unit of the vehicle
25 Seat heaters
26 Rear window wiper
27 Telephone preinstallation
28 Petrol engine: AKF valve, petrol engine: Control flap
29 Injection, water pump
30 Fuel pump
Ignition
Cruise control system, operation of PTC relay
31 Lambda probe
32 High pressure pump, pressure valve
33 Engine control unit
34 Engine control unit
Vacuum pump
35 Power supply of ignition lock
36 Main beam light
37 Rear fog light
38 Fog lights
39 Blower
40 Heatable windscreen washing nozzles, windscreen cleaning
system
41 Not assigned
42 Rear window heater
43 Horn
44 Front window wiper
45 Central control unit for convenience system
46 Engine control unit
Engine control unit
Fuel pump relay
47 Cigarette lighter, power socket in the luggage compartment a)
48 ABS, START-STOP – DC/DC converter ESP
49 Turn signal lights, brake lights
50 START-STOP – DC/DC converter infotainment
Radio
51 Electrical power window (front and rear) – left side
52 Electrical power window (front and rear) – right side
53 Parking light – left side
Electric sliding/tilting roof
54 START-STOP – instrument cluster
Anti-theft alarm system
55 Control unit for automatic gearbox DSG
56 Headlight cleaning system
Parking light – right side
57 Left low beam, headlight range adjustment
58 Low beam on the right
a) If the engine is switched off already one electrical component which is connected can discharge the battery.

Fuse box in engine compartment (manual gearbox, automatic gearbox DSG)

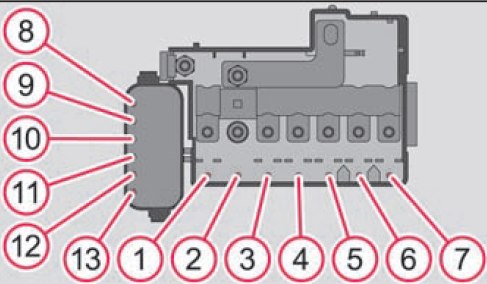

Skoda Roomster - fuse box diagram - engine compartment (manual gearbox)
Skoda Roomster – fuse box – engine compartment (manual gearbox, automatic gearbox DSG)
Numer Power consumer
1 Dynamo
2 Not assigned
3 Interior
4 Electrical auxiliary heating system
5 Interior
6 Glow plugs, coolant fan
7 Electrohydraulic power steering
8 ABS or TCS or ESP
9 The radiator fan
10 Automatic gearbox
11 ABS or TCS or ESP
12 Central control unit
13 Electrical auxiliary heating system



Fuse box in engine compartment (automatic gearbox)

Skoda Roomster - fuse box diagram - engine compartment
Skoda Roomster – fuse box diagram – engine compartment (automatic gearbox)
Number Power consumer
1 Generator
2 Interior
3 Electrical auxiliary heating system
4 ESP
5 Electrohydraulic power steering
6 Glow plugs
7 ESP
8 The radiator fan
9 Air conditioning system
10 ABS
11 Central control unit
12 Automatic gearbox
Electrical auxiliary heating system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
