Skoda Rapid Spaceback (2015) – fuse box diagram

Skoda Rapid Spaceback (2015) – fuse box diagram

Year of production: 2015

Fuse box in dash panel

Skoda Rapid Spaceback - fuse box - dashboard panel (left-hand vehicle/right-hand vehicle)

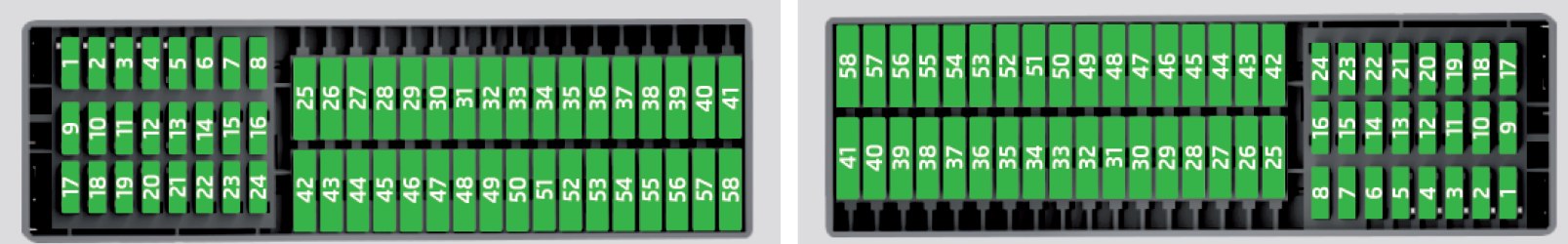

Skoda Rapid Spaceback – fuse box – dashboard panel (left-hand vehicle/right-hand vehicle)
Number Power consumer
1 S-contact
2 START – STOP
3 Instrument cluster, headlight range adjustment, telephone, oil level sensor, diagnostic port, dimmable interior rear-view mirror
4 Control unit for ABS/ESC, steering angle sensor strip with switches
5 Petrol engine: Speed regulating system
6 Reversing light (manual gearbox)
7 Ignition, engine control unit, automatic gearbox
8 Brake pedal switch, clutch switch, engine cooling fan
9 Operating controls for the heating, electronic control unit for air conditioning system, park distance control, window lift, engine cooling fan, washing nozzles
10 DC-DC converter
11 Mirror adjustment
12 Control unit for trailer detection
13 Electronic control unit for automatic gearbox, selector lever of the automatic gearbox
14 Headlight beam control
15 Not assigned
16 Power steering, speed sensor, engine control unit, control unit for fuel pump
17 Daytime running lights/radio for vehicles with START-STOP
18 Mirror heater
19 Ignition lock input
20 Engine control unit, electronic control unit for fuel pump, fuel pump
21 Reversing lamp (automatic gearbox), fog lights with the function CORNER
22 Operating controls for the heating, electronic control unit for air conditioning system, telephone, instrument cluster, steering angle sender, multi-function steering wheel, ignition key removal lock, diagnostic port, rain sensor
23 Interior lighting, storage compartment and luggage compartment, side lights
24 Central control unit
25 Light switch
26 Rear window wiper
27 Operating lever underneath the steering wheel
28 Petrol engine: Purge valve, PTC heater
29 Injection, coolant pump
30 Fuel pump, ignition system, cruise control
31 Lambda probe
32 High-pressure fuel pump, control valve for fuel pressure
33 Engine control unit
34 Engine control unit, vacuum pump
35 Switch illumination, number plate light, parking light
36 High beam, light switch
37 Rear fog light, DC-DC converter
38 Fog lights
39 Air blower for heating
40 Not assigned
41 Heated front seats
42 Rear window heater
43 Horn
44 Windscreen wipers
45 Boot lid lock, central locking system
46 Alarm
47 Cigarette lighter
48 ABS
49 Turn signal lights, brake lights
50 DC-DC converter, radio
51 Electric windows (driver’s window and rear left window)
52 Electric windows (front passenger’s window and rear right)
53 Windscreen washer
54 START-STOP instrument cluster, steering wheel module, multi-function steering wheel
55 Control unit for automatic gearbox
56 Headlight cleaning system
57 Headlights front, rear
58 Headlights front, rear

Fuse box in engine compartment

Skoda Rapid Spaceback - fuse box - engine compartment

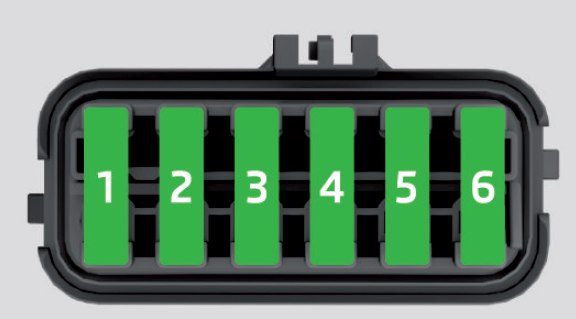

Skoda Rapid Spaceback – fuse box – engine compartment
Number Power consumer
1 ABS
2 Radiator fan
3 Automatic gearbox
4 ABS
5 Central control unit
6 Electrical auxiliary heating system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
