Skoda Kodiaq (2016 – 2019) – fuse box diagram

Skoda Kodiaq (2016 – 2019) – fuse box diagram

Year of production: 2016, 2017, 2018, 2019

Fuse box in the dashboard

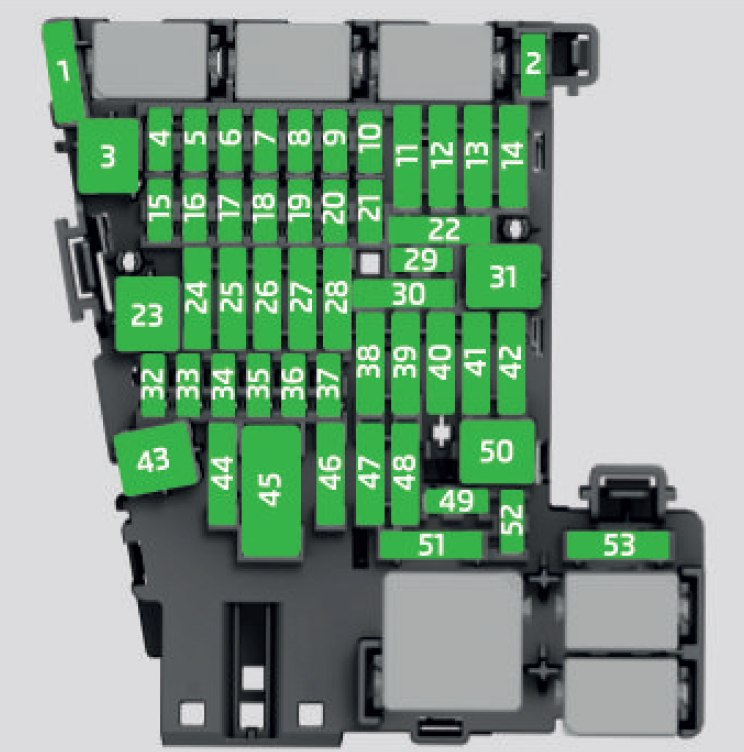

Skoda Kodiaq - fuse box - dashboard
Skoda Kodiaq – fuse box diagram – dashboard
Number Consumer
1 Not assigned
2 Not assigned
3 Not assigned
4 Heated steering wheel
5 Databus
6 Automatic gearbox
7 Air conditioning, receiver for the remote control for the auxiliary heating, heated rear window, heated windscreen, rear air conditioning system
8 Light switch, rain sensor, parking brake, ambient lighting, sensor of the alarm system, headlight
9 Operating lever underneath the steering wheel
10 Infotainment screen
11 Light – left
12 Infotainment, ExBoxM2 (applies to South Korea)
13 Left side belt tensioner
14 Air blower for air conditioning, heating
15 Electric steering lock
16 USB port, diagnostic connector, Phonebox
17 Instrument cluster, emergency call
18 Reversing camera
19 KESSY
20 SCR
21 All-wheel drive
22 Towing hitch
23 Panoramic slide / tilt sunroof
24 Light – right
25 Central locking- front and rear door left, power window – left, exterior mirrors left – heating, fold-in function, setting the mirror surface
26 Heated front seats
27 Interior lighting
28 Trailer device – electrical outlet
29 Not assigned
30 Shock absorber setting
31 Not assigned
32 Parking aid (Park Assist)
33 Airbag
34 Air conditioning, reversing light switch, mirror with automatic dimming, seat heating, parking brake, light switches, bar with switches, electric auxiliary heating
35 Diagnostic connector, camera, radar
36 AFS headlights – right
37 AFS headlights – left
38 Trailer device – electrical outlet
39 Central locking- front and rear door right, power window – right, exterior mirrors right – heating, fold-in function, setting the mirror surface
40 12-volt power outlets
41 Right side belt tensioner
42 Luggage compartment cover lock, headlight washers, front and rear window washer
43 Music amplifier
44 Trailer device – electrical outlet
45 Electrical operation of driver’s seat
46 230-Volt power socket
47 Rear window wiper
48 “Blind spot” detection
49 Engine starting, clutch pedal switch
50 Opening the boot lid
51 Heating of the rear seats
52 Heated front seats
53 Heated rear window

Fuse box in engine compartment

Skoda Rapid Spaceback – fuse box – engine compartment
Skoda Rapid Spaceback – fuse box – engine compartment
Number Consumer
1 ESC, parking brake
2 ESC
3 Engine control system
4 Radiator fan, control valve for fuel pressure, electric auxiliary heating, engine components
5 Ignition, fuel pump, oil level and oil temperature sensor, engine
components
6 Brake sensor
7 Coolant pump, exhaust flap, engine components
8 Lambda probe
9 Coolant pump, ignition, preheating unit, air flow meter, engine components
10 Fuel pump
11 Additional electrical heating, heated windscreen
12 Electrical auxiliary heating system
13 Automatic gearbox
14 Not assigned
15 Horn
16 Ignition
17 ESC, engine control unit, main relay coil
18 Additional electrical heating, radiator fan, wastegate, oil temperature sensor, valve for activated charcoal filter, valve for intake manifold
19 Windscreen wipers
20 Anti-theft alarm
21 Not assigned
22 Engine control system
23 Starter
24 Electrical auxiliary heating system
31 Not assigned
32 Not assigned
33 SCR
34 Not assigned
35 Not assigned
36 Not assigned
37 Aux. heating
38 Not assigned

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
