Skoda Felicia – fuse box diagram
Year of production:

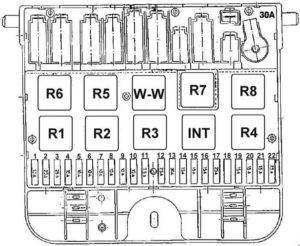

Fuse Box
| No. |
A |
Function |
| 1 | 10 | Engine control system (Bosch Mono-Motronic), valve assy control |
| 2 | 20 | Front window wiper and washer, rear window wiper and washer |
| 3 | 25 | Heater |
| 4 | 15 | Fuel pump (Bosch Mono-Motronic), O2 sensor, injector |
| 5 | 10 | Front fog light (Right) |
| 6 | 10 | Front fog light (Left), control lamp |
| 7 | 10 | Right low beam headlamp |
| 8 | 10 | Left low beam headlamp, control lamp |
| 9 | 10 | Right high beam headlamp |
| 10 | 10 | Left high beam headlamp, control lamp |
| 11 | 7.5 | Tail lamp (Right) |
| 12 | 7.5 | Rear fog light, control lamp |
| 13 | 30 | Rear window defroster, control lamp, mirror defroster |
| 14 | 15 | Stop lamp, hazard lamps |
| 15 | 15 | Room lamp, power outlet, alarm |
| 16 | 15 | Power door lock, headlight washers |
| 17 | 25 | Horn, cooling fan, stalk switch |
| 18 | – | Not used |
| 19 | 15 | Warning lamp brake fluid, instrument cluster, lamps switch, AKIN, heated seats, power mirror, power window, clock |
| 20 | 15 | Ignition coil, engine control system (Bosch Mono-Motronic) |
| 21 | 15 | Turn signal, backup lamp |
| 22 | 7.5 | Tail lamp (Left), illumination |
| Relay | ||
| R1 | Headlamp relay | |
| R2 | Front fog relay | |
| R3 | Rear fog relay | |
| R4 | Heated rear window | |
| R5 | Fuel pump relay (Bosch Mono-Motronic) | |
| R6 | Side light warning buzzer | |
| R7 | X contact relief relay | |
| R8 | Hazard relay | |
| INT | Rear window wiper and washer relay | |
| W-W | Intermittent wiper relay | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
