Saturn L-Series (1999 – 2004) – fuses box diagram

Saturn L-Series (1999 – 2004) – fuses box diagram

Year of production: 1999, 2000, 2001, 2002, 2003, 2004

Floor Console Fuse Block

The driver’s side instrument panel is located under the instrument panel on the driver’s left side.

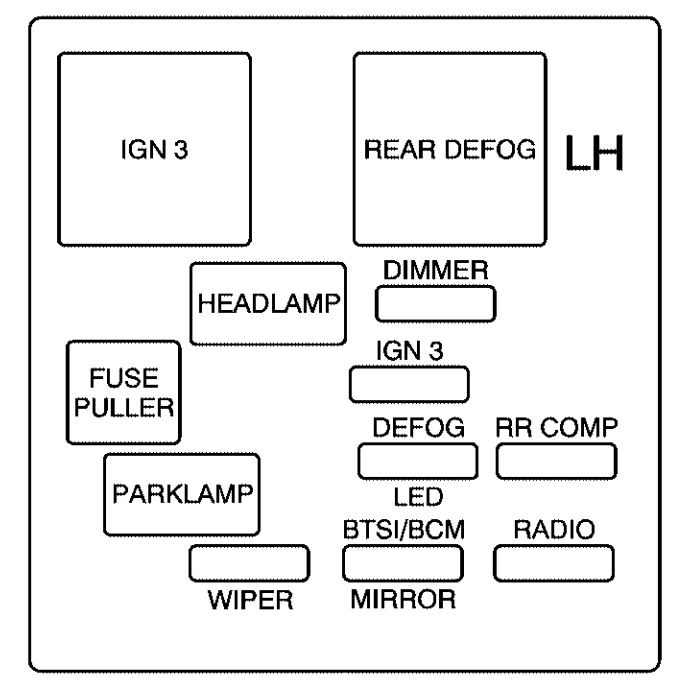

Saturn L-Series - fuse box - instrument panel (driver's side)
Saturn L-Series – fuse box – instrument panel (driver’s side)
Fuses Usage
RADIO Audio, OnStar®, Rear Seat DVD (Option
WIPER Windshield Washers and Wipers (Front)
IGN 3 Left Heated Seat Switch, Right Heated Seat Switch, Air Conditioning, Rear Defogger Relay
DEFOG LED Rear Defog LED
BTSI/BCM/ MIRROR Brake Transaxle Shift Interlock, Body Control Module, Power Mirror
DIMMER Dimmer Switch
RR COMP LP Trunk Compartment Lamp



Relays Usage
RR DEFOG Rear Defogger
IGN 3 Ignition Switch
PARKLAMP Park Lamps
HEADLAMP Headlamps



The passenger’s side fuse block is located under the instrument panel on the passenger’s right side.

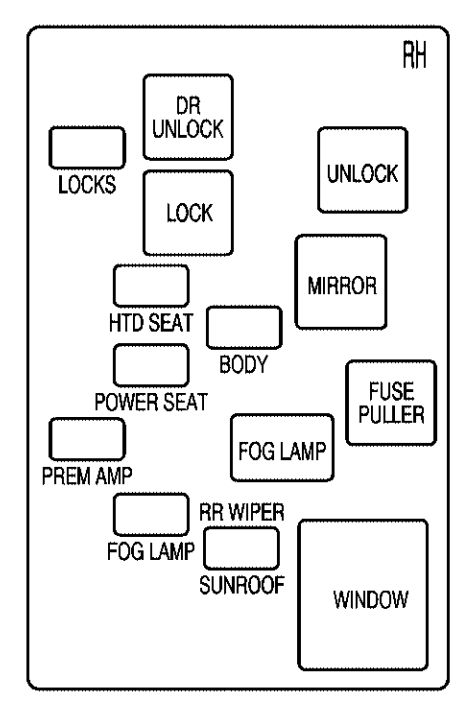

Saturn L-Series - fuse box - instrument panel (passeneger's side)
Saturn L-Series – fuse box – instrument panel (passeneger’s side)
Fuses Usage
LOCKS Power Door Locks
BODY Power Door Locks, Heated Mirror Relay, Liftgate Latch
POWER SEAT Power Seat
PREM AMP/MCS Premium Sound System Amplifier
FOG LAMP Fog Lamps
HEATED SEATS Seat Heater
RR WIPER/ SUNROOF Rear Wiper/Washer (Wagon)



Relays Usage
POWER WINDOW Power Windows, Power Sunroof
DRIVER DOOR UNLOCK RELAY Driver Door Unlock
DOOR UNLOCK RELAY Door Unlock
DOOR LOCK RELAY Door Lock
HEATED MIRROR Power Mirrors
FOG LAMP  Fog Lamps

Engine Compartment Fuse Block

The engine compartment fuse block is located in the forward part of the engine compartment near the battery.

Fuse Usage
IGN 1/2 Ignition Switch
IGN 0/3/CR Ignition switch
COOL 1 Cooling fan module
COOL 2 Cooling fan module
ABS 1 Anti-Lock Brake System
ABS 2 Anti-Lock Brake System
HVAC BLOWER High Blower
HORN Horn
R HDLP Right Headlamps
L HDLP Left Headlamps
A/C Air Conditioning System
LIGHTER Cigarette Lighter
AUX POWER Power Outlet
I/P BATT RT Passenger’s Side Instrument Panel Fuse Block
CONTROLS B+ Powertrain Control Module (2.2L L4 (L61)), Engine Control Module (3.0L V6 (L81), Transaxle Control Module (3.0L V6 (L81))
BCM 2 Body Control Module
BCM/ECM/ CRUISE/ABS Body Control Module, Engine Control Module, Cruise Control, ABS
EIS Electronic Ignition System (2.2L L4 (L61))
IGN Ignition Coils (3.0L V6 (L81))
INJ Fuel Injectors (2.2L L4 (L61))
BACK-UP/TURN Backup Lamps, Coolant Level Switch
BRAKE Brake Lamps
FUEL PUMP Fuel Pump Relay
IGN 0 Park Neutral Position Switch, Powertrain Control Module
CRUISE SW Cruise Control Switch
CONTROLS IGN 1 Cooling Fan Control Module, Powertrain Control Module, Transaxle (2.2L L4 (L61)), Transaxle Control Module (3.0L V6 (L81))
IGN 1 Instrument Cluster, Coolant Level Switch, Air Bag, Electronic PRND321
BCM/CLUSTER Body Control Module, Instrument Cluster, Dimmer Switch
PARK LAMP Front Park Lamps, Taillamps, Front Marker Lamps, Rear Marker Lamps, License Lamps, Radio Display Lights, I/P Cluster Backlighting, I/P Dimmer, Cigar Lighter Ring, Ashtray Light, PRND321 Light, Climate Control Switch Backlighting
HAZARD Hazard Flasher, HBTT (Headlamp HI Beam Indicator), I/P Cluster
REAR DEFOG Rear Window Defogger
RADIO/ON-STAR Audio System, OnStar®, Rear Seat DVD (Option)
CD/DLC Audio, Data Link Connector, (DLC), Rear Seat DVD (Option)
ING 3 Cruise Clutch Switch, Emissions Controls, Air Conditioner Relay, Heated Oxygen Sensor
ENG CNTL 1 3.0L V6 (L81) Engine
ENG CNTL 2 3.0L V6 (L81) Engine
ENG CNTL 3 3.0L V6 (L81) Engine
A/C DIODE Air Conditioner Diode



Relays Usage
A/C Air Conditioning System
DRL Daytime Running Lamp
HORN Horn
MAIN 3.0L V6 (L81) Engine
WIPER Wiper System
FUEL PUMP  Fuel Pump System
REAR WIPER Rear Wiper System (Wagon Only)



Circuit Breaker Usage
WINDOWS/ SUNROOF Power Window Relay, Sunroof (3.0L V6 (L81))
WINDOW/ SUNROOF/AIR Power Window Relay, Sunroof and Air Pump Relay (2.2L L4 (L61))

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
