Renault Midlum (2005) – fuse box diagram

Renault Midlum (2005) – fuse box diagram

Year of production: 2005

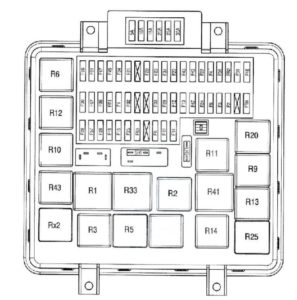

Fuse box

Renault Midlum - fuse box diagram
Renault Midlum – fuse box diagram
Fuse Ampere riting [A] Description
1 15 Trailer socket 7-pin (“ABS”)
Trailer socket, 7-pin type 24 S
Stop lights relay
2 10 Front side/parking lights
RH rear side/parking lights
Registration plate RH light
Voltage dropper (headlamps adjustment)
3 10 Marker lights
LH rear side/parking lights
Registration plate LH light
Dashboard instruments lighting
Switch lighting
4 10 Trailer side/parking lights
5 10 Available power supply (lighting)
7 10 Jake brake electrovalves
Engine stop control
Fuel filter clogging
“EUP” ECU
8 15 Fog light(s)
Fog driving lights
12 10 RH dipped beam headlight
13 10 LH dipped beam headlight
14 15 RH main beam headlight
LH main beam headlight
Long beam driving lights
16 10 Dashboard warning lights and instruments power supply
Electric or hydraulic retarder control
Exhaust brake electrovalve
“ABS-ASR” ECU
17 20 Heated driver’s seat
Voltage dropper (12V socket)
Voltage dropper (telecommunications)
18 15 Fan coil heaters
19 25 Fuel filter preheater
20 20 Revolving beacons
Roof air vent motor
21 10 Power supply (after master switch)
22 20 Independent heater AT 2000
23 10 Driver’s overhead light
Passenger(s) overhead light
24 20 Driver’s window winder motor
Passenger’s window winder motor
25 5 Tachograph clock
26 15 Horn
27 10 Stop lights
28 15 “ABS” ECU
Electric retarder cut-off relay
29 10 Defrosting rearview mirrors
Windscreen defrosting time-delay relay
30 10 Cigar lighter
Radio
31 20 Socket 24 Volts
Voltage dropper (extra 12V socket)
32 20 Windscreen wiper speed controller
Windscreen washer pump
Headlamps washer pump
Windscreen wiper motor
33 20 Diagnostics socket
Suspension ECU
34 15 Radio tuner memory power supply
Independent heater AT 2000
Flasher unit
35
36 20 Trailer socket 7-pin (“ABS”)
37 15 LH door lock electric striker
RH door lock electric striker
External rearview mirrors swivelling control
Step light
LH rear door overhead light
RH rear door overhead light
38 25 “EUP” ECU
39 10 Automatic gearbox ECU
42 10 Automatic gearbox ECU power supply
43 10 Loading floodlight (tractor)
Trailer socket, 7-pin type 24 S
Bodybuilder equipment control
Gate valves illumination control
Exhaust brake cut-off relay
45 10 Doors central locking box
46 15 Fuel preheater relay
Reversing lamp(s)
Reversing buzzer
Rearview mirrors defrosting relay
47 10 Suspension ECU
Suspension remote control box
50
52 10 Windscreen wiper time-delay relay
57 15 “EUP” VECU ECU
Electronic tachograph
Relay
R1 After ignition power supply relay No. 1
R2 Power after ignition relay
R3 Windscreen wiper safety relay
R5 Side / parking lights relay
R6 Comfort accessories relay
R9 Fog lights relay
R10 Fog driving lights relay
R11 Dipped beam headlights relay
R12 Main beam headlights relay
R13 Long range driving lights
R14 Stop lights relay
R18 Electric retarder cut-off relay
R20 Rearview mirrors and windscreen defrosting relay
R23 Revolving beacon(s) relay
R25 Windscreen wiper relay
R33 Starting relay
R41 Fuel preheater relay
R43 “VECU / EECU” ECU power supply relay

Shunts

Configuration A: With ADR and with daytime lights.
Configuration B: Without ADR and without daytime lights.
Depending on assembly, the vehicle is fitted with the following shunts:

Renault Midlum - fuse box diagram - shunts
Renault Midlum – fuse box diagram – shunts
Number Shunt
SH1
SH2 ADR shunt
SH3 Daytime lights shunt

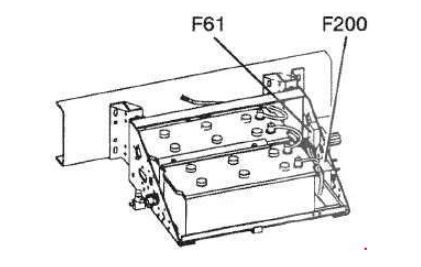

Renault Midlum - fuse box diagram - shunts
Renault Midlum – fuse box diagram – shunts
Number Ampere rating [A] Shunt
F61 50 Windscreen defrosting
F200 200 Power supply (before master switch)

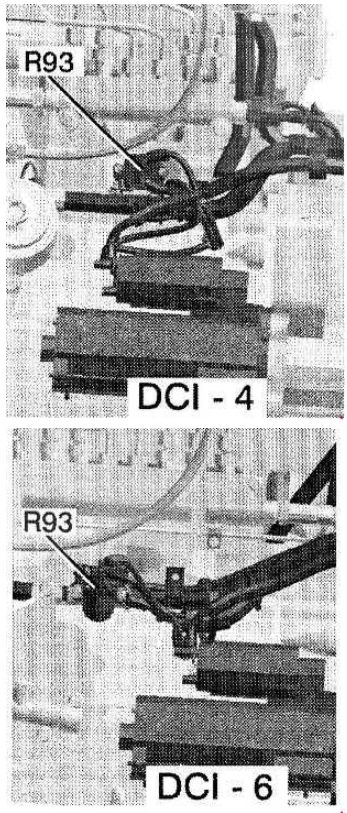

Preheating relay (R93)

Renault Midlum - fuse box diagram - preheating relay (R93)
Renault Midlum – fuse box diagram – preheating relay (R93)

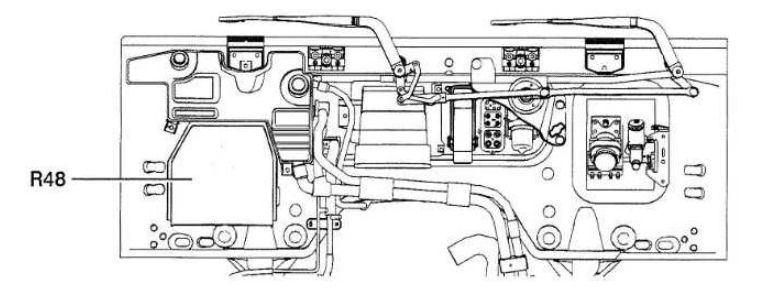

Windscreen defrosting relay (time-delayed) (R48)

Renault Midlum - fuse box diagram - windscreen defrosting relay time delayed (R48)
Renault Midlum – fuse box diagram – windscreen defrosting relay time delayed (R48)

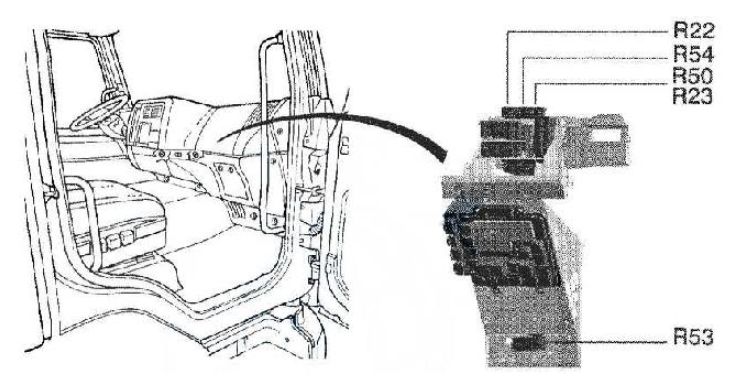

Relay

Renault Midlum - fuse box diagram - relay
Renault Midlum – fuse box diagram – relay
Number Relay
R22 Neutral relay
R23 Revolving beacon(s) relay
R50 Available power supplies relay (bodybuilder equipment)
R53 Headlamp washer time-delay relay
R54 Reversing lights relay



Number Relay
R34 Zero speed relay
“ALLISON” gearbox zero speed relay
R70 Exhaust brake cut-off relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
