Renault Megane Sport Tourer (2015 – 2016) – fuse box diagram

22 December 2019 admin Megane, Renault 0

Renault Megane Sport Tourer (2015 – 2016) – fuse box diagram

Year of production: 2015, 2016

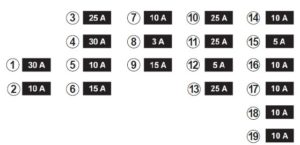

Renault Megane Sport Tourer - fuse box
Renault Megane Sport Tourer – fuse box

Fuse

Fuse Allocation
1 Electronic parking brake
2 Brake lights
3 Automatic door locking
4 Driver’s electric window
5 Passenger compartment unit
6 Direction indicator lights
7 Navigation system
8 Interior rear-view mirror
9 Rear screen wiper
10 Rear electric windows
11 Rear electric windows
12 ABS/ESP
13 Passenger electric window
14 Windscreen washer
15 Heated door mirrors
16 Radio
17 Luggage compartment accessories socket
18 Rear seat accessories socket
19 Cigarette lighter

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
