Renault Kangoo (2016 – 2017) – fuse box diagram
Year of production: 2016, 2017
Allocation of fuses

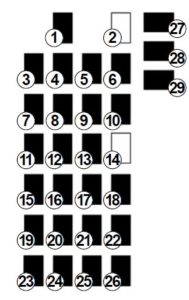

Fuse
| Fuse | Allocation |
| 1 | Fuel pump |
| 2 | Not used |
| 3 | Passenger compartment engine cooling fan |
| 4 | Passenger compartment engine cooling fan |
| 5 | Rear windscreen wiper |
| 6 | Horn, diagnostic socket |
| 7 | Heated seats |
| 8 | Electric rear windows |
| 9 | Passenger compartment ECU |
| 10 | Windscreen washer |
| 11 | Brake lights |
| 12 | Passenger compartment unit, ABS, ESP |
| 13 | Electric windows, child safety, heating and air conditioning system, ECO module |
| 14 | Not used |
| 15 | Starter |
| 16 | Brake lights, additional equipment, navigation, ABS, ESP, boot light, tyre pressure warning light, interior lights, rain and light sensor |
| 17 | Radio, navigation system, display, alarm |
| 18 | Additional equipment |
| 19 | Heated door mirrors |
| 20 | Hazard lights, rear fog lights |
| 21 | Central locking of opening elements |
| 22 | Instrument panel |
| 23 | Rear accessories socket |
| 24 | ESC, radio, heating and air conditioning system, heated seats, stop lights |
| 25 | Front accessories socket |
| 26 | Towbar |
| 27 | Electric front windows |
| 28 | Rear-view mirror control |
| 29 | De-icing the rear screen and rear view mirror |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
