Pontiac Torrent (2006) – fuse box diagram

Pontiac Torrent (2006) – fuse box diagram

Year production: 2006

Instrument Panel Fuse Block

The instrument panel fuse block is located on the passenger’s side of the center console, to the left of the glove box near the floor.

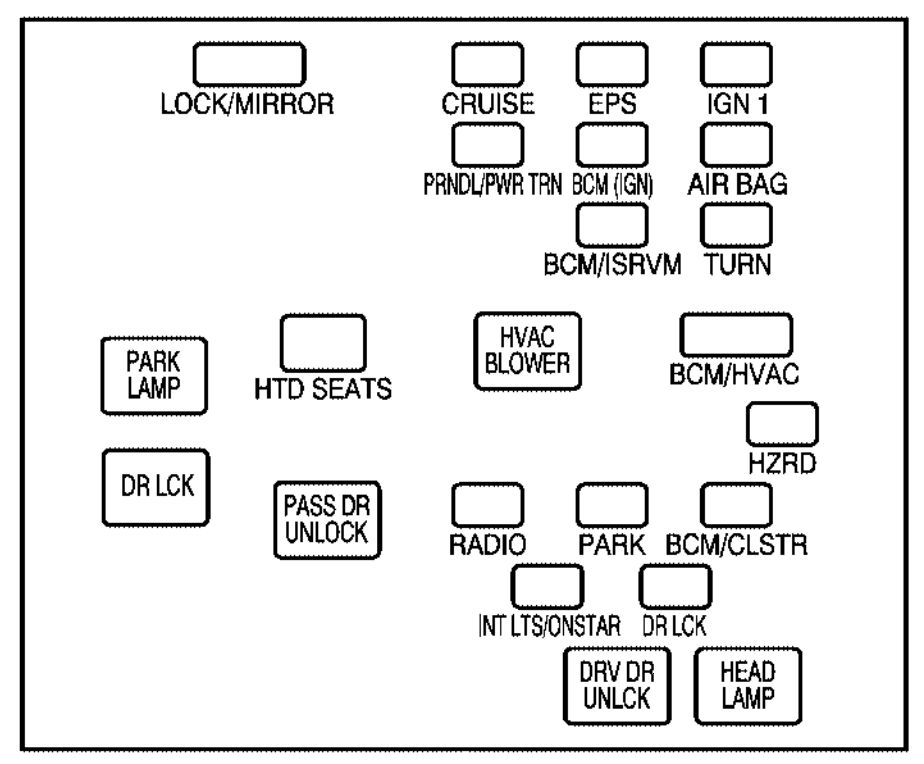

Pontiac Torrent – fuse box – instrument panel
Pontiac Torrent – fuse box – instrument panel
Fuses Usage
LOCK/MIRROR Door Lock, Power Mirror
CRUISE Cruise Control System
EPS Electric Power Steering
IGN 1 Switches, Instrument Panel Cluste
PRNDL/PWR TRN PRNDL/Powertrain
BCM (IGN) Body Control Module
AIRBAG Airbag System
BCM/ISRVM Body Control Module, Inside Rearview Mirror
TURN Turn Signals
HTD SEATS Heated Seats
BCM/HVAC Body Control Module, Heating, Ventilation and Air Conditioning
HZRD Hazard Warning Flashers
RADIO Radio
LOCK/MIRROR Door Lock, Power Mirror
PARK Parking Lamps
BCM/CLSTR Body Control Module, Instrument Panel Cluster
INT LTS/ ONSTAR® Interior Lights/OnStar®
DR LCK Door Locks



Relays Usage
PARK LAMP Parking Lamps Relay
HVAC BLOWER Heating, Ventilation and Air Conditioning Blower Motor
DR LCK Door Locks Relay
PASS DR UNLOCK Passenger Door Unlock Relay
DRV DR UNLCK Driver Door Unlock Relay
HEAD LAMP Headlamps

Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver side of the engine compartment.

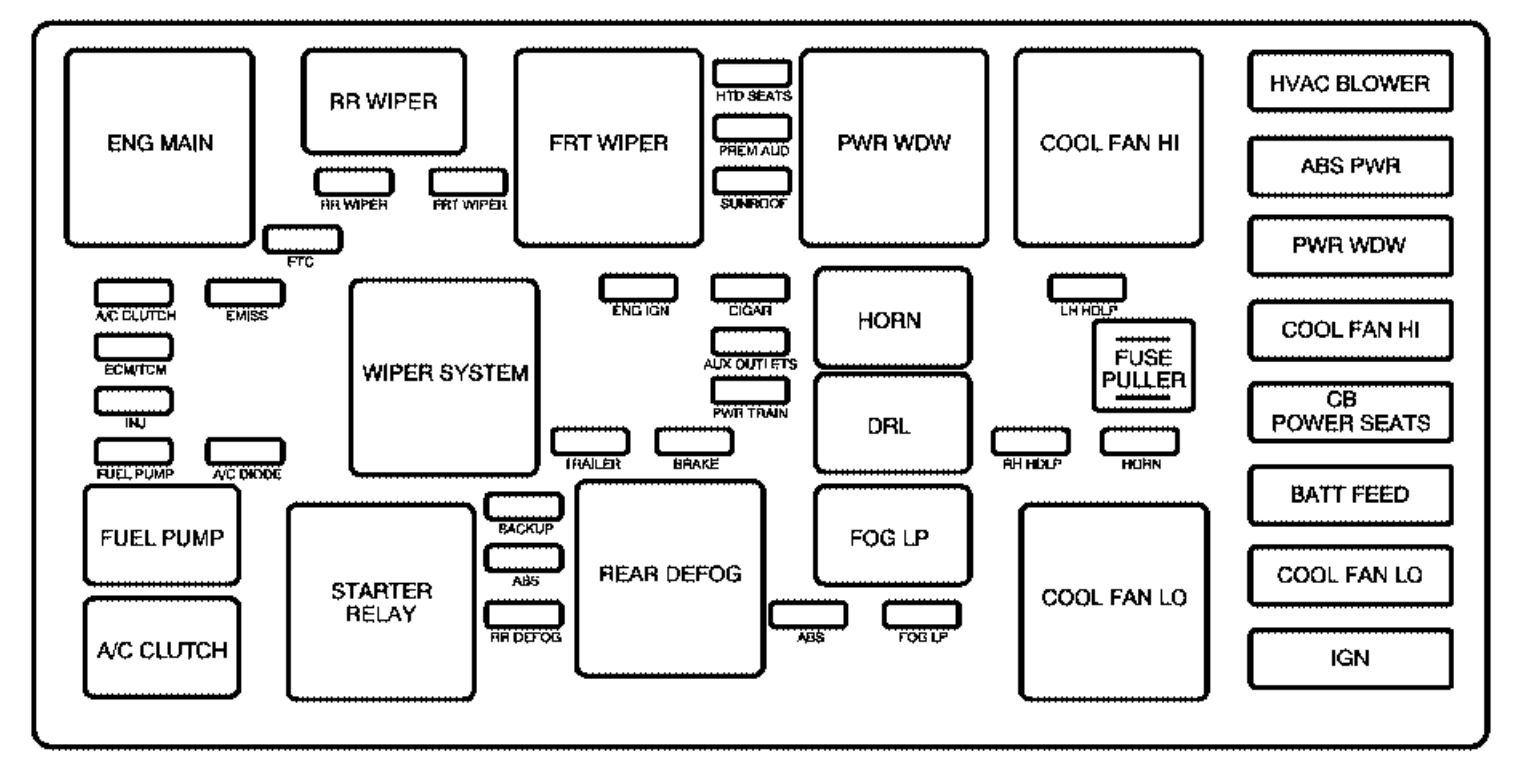

Pontiac Torrent - fuse box - engine compartment
Pontiac Torrent – fuse box – engine compartment
Fuses Usage
HTD SEATS Heated Seats
HVAC BLOWER Heating, Ventilation, Air Conditioning Blower Control
HTD SEATS Heated Seats
PREM AUD Premium Audio System, Amplifier
ABS PWR Anti-lock Brake System
RR WIPER Rear Window Wiper
FRT WIPER Front Window Wiper
SUNROOF Sunroof
ETC Electronic Throttle Control
PWR WDW Power Windows
A/C CLUTCH Air Conditioning Clutch
EMISS Emissions
ENG IGN Engine Ignition
CIGAR Cigarette Lighter
LH HDLP Driver’s Side Headlamp
COOL FAN HI Cooling Fan High
HTD SEATS Heated Seats
ECM/TCM Engine Control Module, Transaxle Control Module
AUX OUTLETS Accessory Power Outlets
FUSE PULLER Fuse Puller
INJ Fuel Injectors
PWR TRAIN Powertrain
FUEL PUMP Fuel Pump
A/C DIODE Air Conditioning Diode
TRAILER Trailer Lighting
BRAKE Brake System
RH HDLP Passenger’s Side Headlamp
HORN Horn
BACKUP Back-up Lamps
HTD SEATS Heated Seats
BATT FEED Battery
ABS Anti-lock Brake System
COOL FAN LO Cooling Fan Low
RR DEFOG Rear Window Defogger
ABS Anti-lock Brake System
FOG LP Fog Lamps
IGN Ignition Switch



Relays Usage
ENG MAIN Engine Relay
RR WIPER Rear Window Wiper Relay
FRT WIPER Front Window Wiper Relay
PWR WDW Power Windows Relay
COOL FAN HI Cooling Fan High Relay
WIPER SYSTEM Wiper System Relay
HORN Horn Relay
DRL Daytime Running Lamps Relay
FUEL PUMP Fuel Pump Relay
STARTER RELAY Starter Relay
REAR DEFOG Rear Window Defogger Relay
FOG LP Fog Lamp Relay
COOL FAN LO Cooling Fan Low Relay
A/C CLUTCH Air Conditioning Clutch Relay



Circuit Breaker Usage
POWER SEATS Power Seats

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
