Pontiac Grand Prix mk5 (Fifth Generation; 1996) – fuse box diagram

Pontiac Grand Prix mk5 (Fifth Generation; 1996) – fuse box diagram

Year of production: 1996

Instrument Panel Fuse Block

Fuse box is locate on the end of the instrument panel on the passenger side.

Pontiac Grand Prix - fuse box - instrument panel
Pontiac Grand Prix – fuse box – instrument panel
Circuit Breaker Usage
C Power Windows
D Power Seat



Fuse Usage
1 CIGARETTE LIGHTER –‘ Instrument Panel Cigarette Lighter
3 DRL MDL
4 HVAC #2 — €WAC Control Assembly Solenoid Box
5 HAZARD FLASHER
6 POWER ACCESSORY #2 — Sunroof Control Unit
7 LOCK CONTROL — Door Lock Relay
10 I/P ELECTRONICS BATTERY FEED — Chime Module, Ele’ctronic , Brake Control Module (EBCM), Theft-Deterrent Module, Radio, Radio Amplifier, Trip Computer
11 STARTER RELAY
12 ANTI-THEFT — Theft-Deterrent Module
13 ABS — Electronic Brake Control Module (EBCM), ABS Relay
14 HVAC BLOWER MOTOR — Blower Motor Relay
15 HVAC #I — Air Temperature Valve Motor, Trip Computer, Daytime Running Lamps (DRL) Module, HVAC Control Assembly, Multifunction Lever Cruise Control Switch
16 REAR DEFOG. — HVAC Control Assembly Rear Window Defogger Switch
19 ESSORY #1 — Antenna Relay, Power Mirror Switch, Door Lock Switches, Door Handle Switches
21 AIR BAG — Air Bag System
23 STOPLAMPS — TCCBrake Switch
24 CRUISE CONTROL
28 CTSY LAMPS — Vanity Mirrors, I/P Courtesy Lamps, UP Compartment Lamp, Trunk Courtesy Lamp, Header Courtesy and Reading Lamp, US Lighted Rearview Mirror, Dome and Reading Lamp, Quarter Courtesy Lamps
29 WIPER — Wiper Switch
30 TURN SIGNAL — Turn Signal Flasher
32 POWER LOCKS — Door Lock Relay
37 AUXILIARY POWER
38 RADIO — Radio, Steering Wheel Radio Switches
39 I/P ELECTRONICS IGNITION FEED — Headlamp Switch, Cruise Control Cut-Out Switch, Air Bag System, TCC/Brake Switch, Instrument Cluster, Chime. Module, Second-Gear Start Switch, Head-Up Display (HUD) Switch, Daytime Running Lamps (DRL) Module

Underhood Fuse Block – Passenger’s side

The underhood fuse block is located on the passenger’s side of the vehicle in the engine compartment.

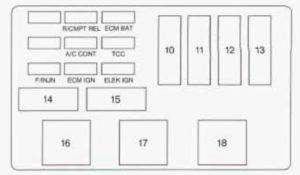

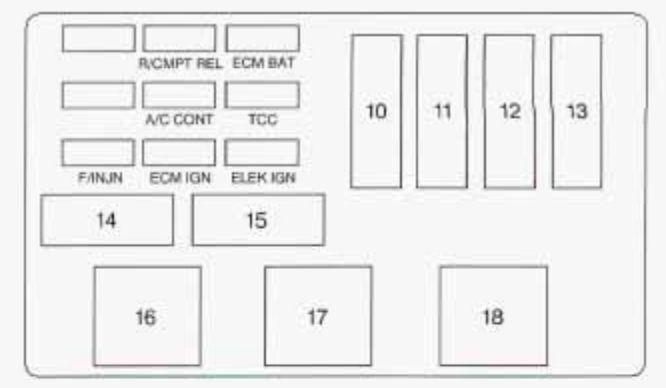

Pontiac Grand Prix - fuse box - engine compartment (passenger's side)
Pontiac Grand Prix – fuse box – engine compartment (passenger’s side)
Fuses Usage
R/CMPT REL Remote Trunk Release, Back-up Lamps
ECM BAT Powertrain Control Module (PCM), Fuel Pump, Fuel Pump Relay, Fan Cont #1 Relay
A/C CONT A/C CMPR Relay (VIN M only)
TCC Automatic Transaxle, Transaxle Range Switch (VIN M only)
F/INJN Fuel Injectors
ECM IGN Powertrain Control Module 15 (PCM), Mass Air Flow (MAF) Sensor (VIN X only), EGR, CCP, 16 Oxygen Sensor, VAC CAN SW, FAN #2 Relay
ELEK IGN Electronic Ignitioin (EI) Control Module
10 I/P Fuse Block
11 FAN CONT #1 Relay
12 Passenger’s Side Underhood Electrical Center and I/P Fuse Blocks: Fuses 5, 14,23 and 32
13 FAN CONT #2 Relay and I/P Fuse Block: Fuse 16, Power Seat Circuit Breaker D



Relay Usage
14 FUEL PUMP
15 A/C CMPR
16 FAN CONT #2 — Secondary Cooling Fan (Passenger’s Side)
17 FAN CONT #1– Primary Cooling Fan (Driver’s Side)
18 Ignition Relay

Underhood Fuse Block – Driver’s side

The underhood fuse block is located on the driver’s side of the vehicle in the engine compartment.

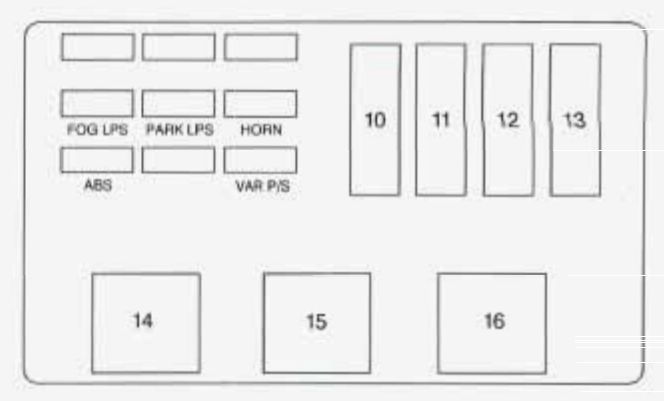

Pontiac Grand Prix - fuse box - engine compartment (driver's side)
Pontiac Grand Prix – fuse box – engine compartment (driver’s side)
Fuses Usage
FOG LPS Fog Lamps
PARK LPS Headlamp Switch
HORN Horn Relay, Underhood Lamp
VAR P/S EVO
ABS Anti-Lock Brake System
10 IGN SW2 — IA? Fuse Block: PWR 14 WDO and Circuit Breaker D; Passenger’s Side Underhood 15 Electrical Center: TCC and ENG 16 EMIS Fuses
11 IGN SWl — I/p Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses; Passenger’s Side Underhood Electrical Center: F/IJN, ECM IGN and ELEK IGN Fuses
12 HD LPS — 30 Amp Circuit Breaker to Headlamp Switch
13 ABS — ABS Relay



Relay Usage
14 ABS — Anti-Lock Brake System
15 FOG LPS
16 HORN

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
