Pontiac Grand Am (1994) – fuse box diagram
Year of production: 1994

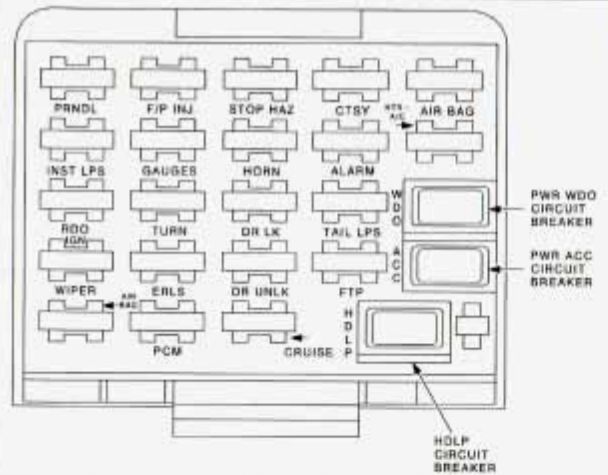

Instrument Panel Fuse Block – Driver’s Side
The main fuse panel is located on the left side of the instrument panel.
| Fuses | Ampere rating [A] | Usage |
| PRNDL | 5 | Electronic PRNDL Display |
| F/P INJ | 20 | Fuel Pump, Injectors |
| STOP HAZ | 20 | Stop/Hazard Lamps |
| CTSY | 15 | Door Locks, Power Mirrors, Cigar Lighter |
| AIR BAG | 3 | Sumlemental Inflatable Restraint |
| INST LPS | 5 | Interior Lamps Dimming |
| GAUGES | 10 | Gauges, Warning Lights, Rear Defog |
| HORN | 15 | Horns |
| ALARM | 15 | Interior Lamps, Chime, Auto Door Locks, Remote Keyless Entry |
| HTR-A/C | 25 | Heater, Air Conditioning, Anti-Lock Brakes, Daytime Running Lamps (Canada) |
| RDO | 10 | Radio Power, Cruise Control |
| TURN | 20 | Turn Signal Lamps |
| DR LK | 20 | Auto Door Locks |
| TAIL LPS | 20 | Tail Lamps, Marker Lamps, License Lamp, Fog Lamps |
| WDO | 30 | Power Windows (Circuit Breaker) |
| WIPER | 25 | Windshield Wipers/Washers |
| ERLS | 15 | Engine Controls, Back-up Lamps |
| DR UNLK | 10 | Automatic Door Unlock (Remove To Disable) |
| FTP | 20 | Flash-to-pass (U.S.) |
| ACC | 30 | Rear Window Defogger, Power Seats, Power Sunroof (Circuit Breaker) |
| AIR BAG | 15 | Supplemental Inflatable Restraint |
| IGN ECM | 20 | ECM, Ignition System |
| HDLP | 20 | Headlamps (Circuit Breaker) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
