Pontiac Grand Am (1993) – fuse box diagram

Pontiac Grand Am (1993) – fuse box diagram

Year of production: 1993

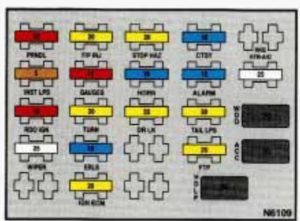

Instrument Panel Fuse Block – Driver’s Side

The main fuse panel is located on the left side of the instrument panel.

Pontiac Grand Am - fuse box diagram
Pontiac Grand Am – fuse box diagram
Fuses Ampere rating [A] Usage
PRNDL 10 Back Up Lights, Electronic PRNDL (automatic transaxle)
F/P INJ 20 Fuel Pump, Fuel Injectors
STOP HAZ 20 Turn/Hazard/Stop Lights, Anti-Lock Brakes (ABS), BrakeTransaxle Shift Interlock (BTSI)
CTSY 15 Power Door Locks, Power Mirrors, Cigar Lighter BLANK
INST LPS 5 Instrument Panel Lights
GAUGES 10 Rear Window Defogger Relay, Chime, Gages, ABS , BTSI, Daytime Running Lights (Dm) (Canada)
HORN 15 Horn
ALARM 15 Chime, Interior Lights, Passive Restraints, Radio/Clock Memory
HTR-A/C 25 Heater, Air Conditioning, ABS, DRL (Canada), Engine Block Heater
RDO IGN 10 Radio, Cruise Control, Variable Effort Steering
TURN 20 Turn Signals
DR LK 20 Power Door Lock
TAIL LPS 20 Exterior Lights, Fog Lights, Instrument Panel Lights, DRL (Canada)
WDO 30 Power Windows (Circuit Breaker
WIPER 25 Windshield WipedWasher
ERLS 15 Engine Controls, Starter and Charging System BLANK
FTP 20 Flash-to-Pass (US.
ACC 30 Power Seats, Rear Window Defogger (Circuit Breaker) BLANK
IGN ECM 20 Engine Control Module, Ignition System BLANK
HDLP 20 Headlights, DRL (Canada) (Circuit Breaker)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
