Pontiac G6 (2007) – fuse box diagram

Pontiac G6 (2007) – fuse box diagram

Year of production: 2007

Instrument Panel Fuse Block

The instrument panel fuse block is located on the passenger side of the vehicle, on the lower portion of the instrument panel console near the floor.

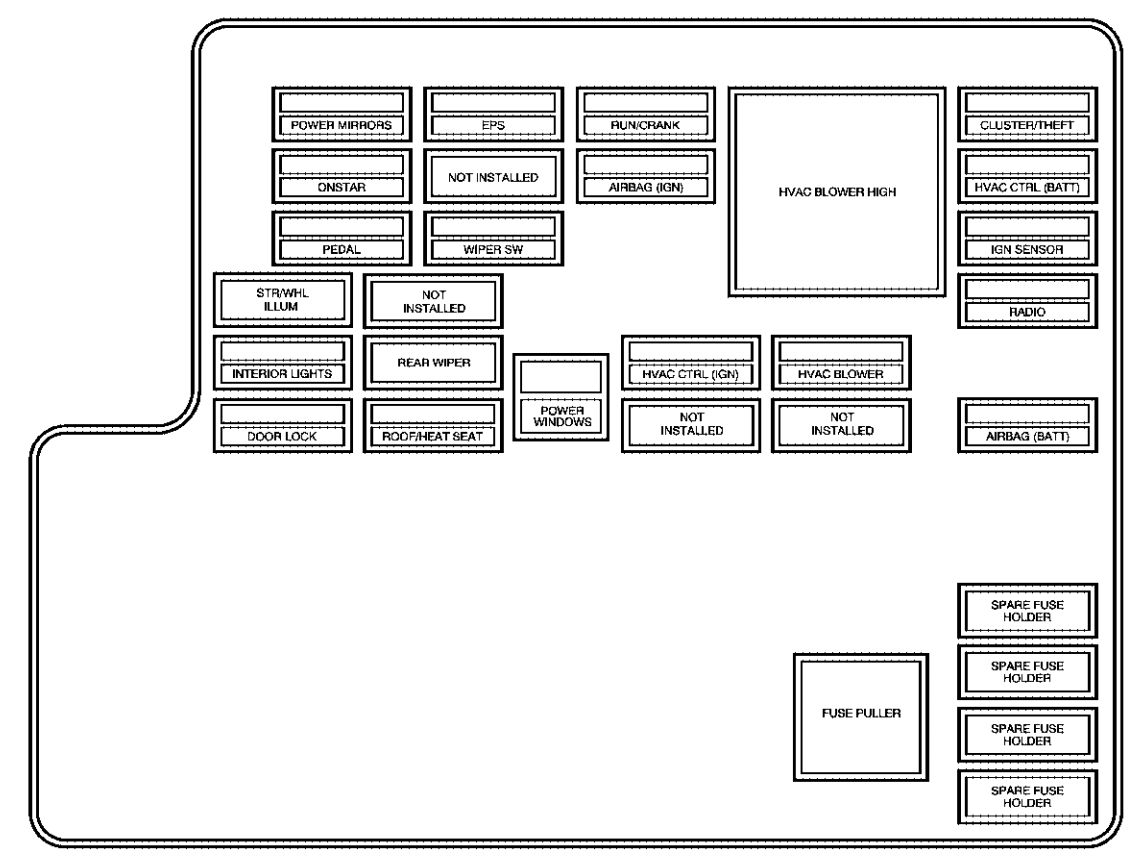

Pontiac G6 - fuse box - instrument panel
Pontiac G6 – fuse box – instrument panel
Fuses Usage
POWER MIRRORS Power Mirrors
EPS Electric Power Steering
RUN/CRANK Cruise Control Switch, Passenger Airbag Status Indicator, DSC Switch
HVAC BLOWER HIGH Heating Ventilation Air Conditioning Blower – High Speed Relay
CLUSTER/ THEFT Instrument Panel Cluster, Theft Deterrent System
ONSTAR OnStar®
NOT INSTALLED Not Used
AIRBAG (IGN) Airbag (Ignition)
HVAC CTRL (BATT) Heating Ventilation Air Conditioning Control Diagnostic Link Connector (Battery)
PEDAL Adjustable Pedals
WIPER SW Windshield Wiper/Washer Switch
IGN SENSOR Ignition Switch
STR/WHL ILLUM Steering Wheel Controls Backlighting
NOT INSTALLED Not Used
RADIO Audio System
INTERIOR LIGHTS Interior Lamps
REAR WIPER Not Used
POWER WINDOWS Power Windows (Sedan)
HVAC CTRL (IGN) Heating Ventilation Air Conditioning Control (Ignition)
HVAC BLOWER Heating Ventilation Air Conditioning Blower Switch
DOOR LOCK Door Locks
ROOF/HEAT SEAT Sunroof, Heated Seat, Power Windows (Coupe, Retractable Hardtop), Automatic Dimming Rearview Mirror, Compass
NOT INSTALLED Not Used
NOT INSTALLED Not Used
AIRBAG (BATT) Airbag (Battery)
SPARE FUSE HOLDER Spare Fuse Holder
SPARE FUSE HOLDER Spare Fuse Holder
SPARE FUSE HOLDER Spare Fuse Holder
SPARE FUSE HOLDER Spare Fuse Holder
FUSE PULLER Fuse Puller

Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver side of the engine compartment, near the battery.

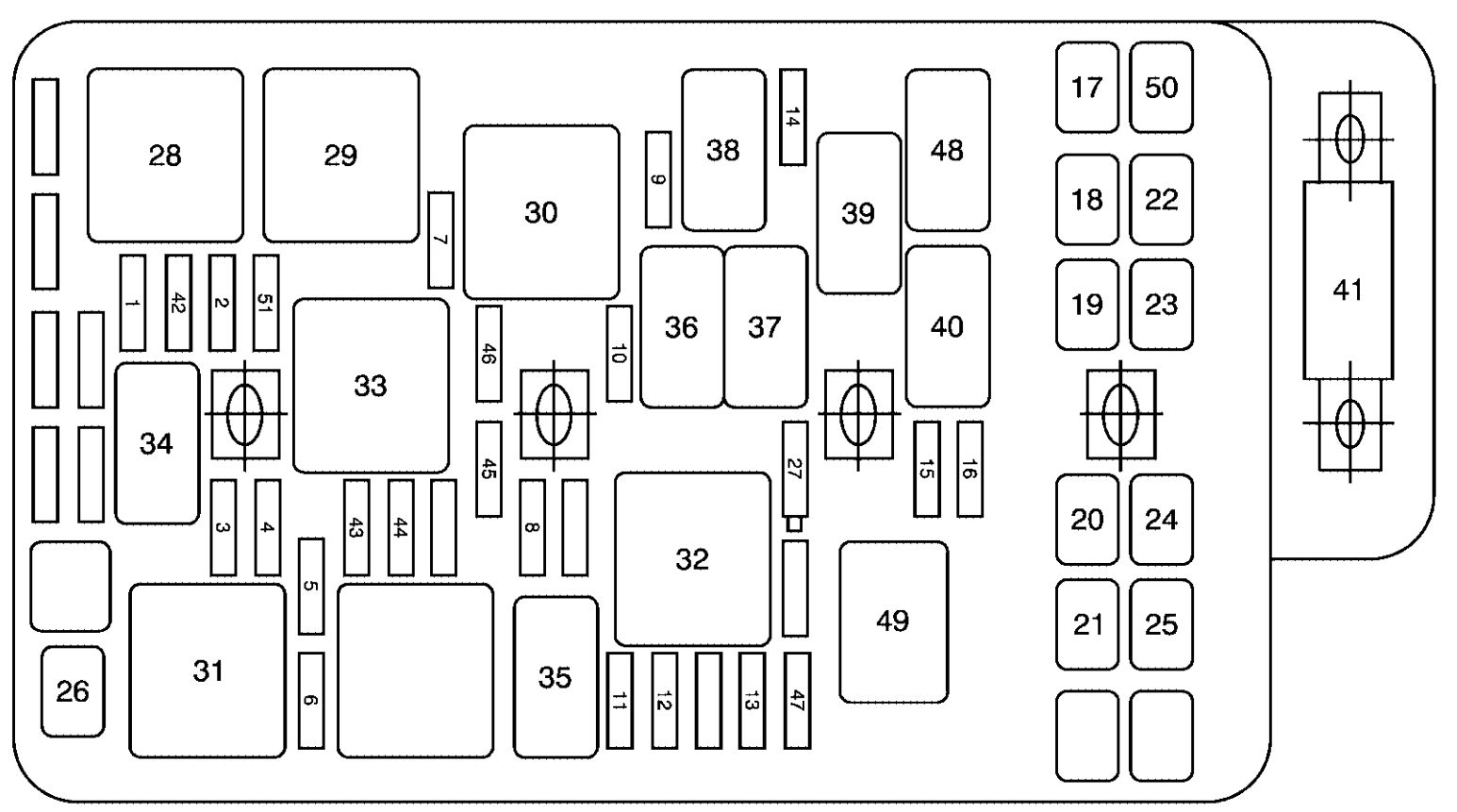

Pontiac G6 - fuse engine compartment
Pontiac G6 – fuse engine compartment
Fuses Usage
1 Air Conditioner Clutch
2 Electronic Throttle Control
3 Engine Control Module (IGN 1) (LZ4, LZE, LZ9)
4 Transmission Control Module Ignition 1
5 Mass Airflow Sensor (LY7)
6 Emission
7 Left Headlamp Low Beam
8 Horn
9 Right Headlamp Low Beam
10 Front Fog Lamps
11 Left Headlamp High Beam
12 Right Headlamp High Beam
13 Engine Control Module (Battery) (LE5, LY7)
14 Windshield Wiper
15 Antilock Brake System (IGN 1)
16 Engine Control Module (IGN 1) (LE5, LY7)
17 Cooling Fan 1
18 Cooling Fan 2
19 Run Relay, Heating, Ventilation, Air Conditioning Blower
20 Body Control Module 1
21 Body Control Module Run/Crank
22 Rear Electrical Center 1
23 Rear Electrical Center 2
24 Antilock Brake System
25 Body Control Module 2
26 Starter
41 Electric Power Steering
42 Transmission Control Module Battery
43 Ignition Module (LE5, LZ4, LZ9), Odd Cylinder Injectors/Ignition Coils (LY7)
44 Injectors (LE5, LZ4, LZ9), Even Cylinder Injectors/Ignition Coils (LY7)
45 Rear Oxygen Sensors
46 Daytime Running Lamps
47 Center High-Mounted Stoplamp
50 Front Power Windows Coupe/ Retractable Hardtop
51 Engine Control Module (BATT) (LZ4, LZ9)



Relays Usage
28 Cooling Fan 1
29 Cooling Fan Series/Parallel
30 Cooling Fan 2
31 Starter
33 Powertrain
34 Air Conditioning Clutch
35 High Beam
36 Front Fog Lamps
37 Horn
38 Low Beam
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running Lamps
49 Center High-Mounted Stoplamp



Diodes Usage
27 Wiper

Rear Compartment Fuse Block

The rear compartment fuse block is located in the trunk of the vehicle. Access the fuse block through the trunk panel on the driver side of the rear cargo area.

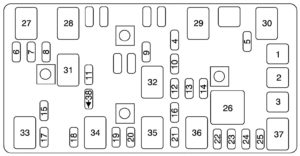

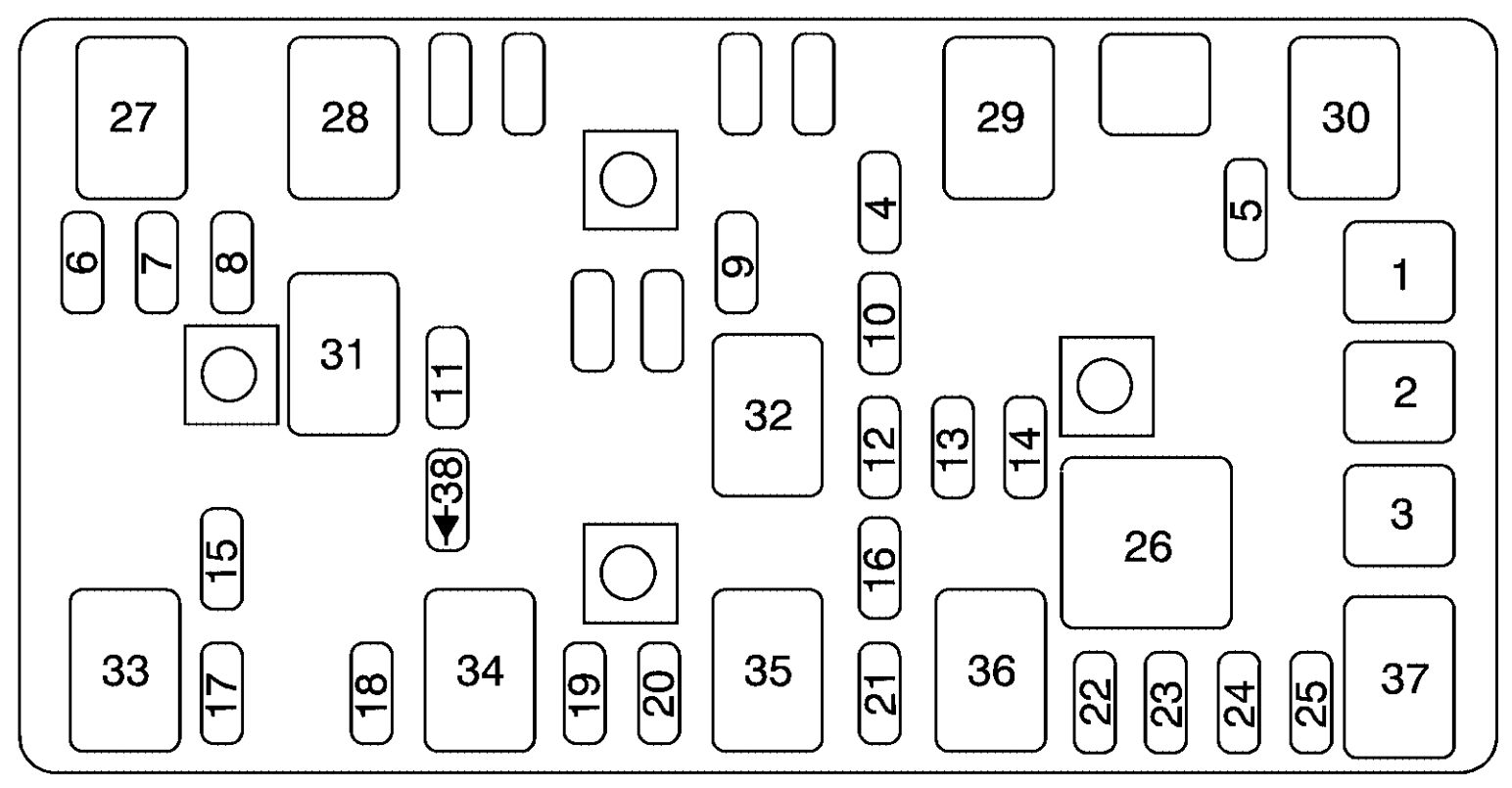

Pontiac G6 - fuse box - rear compartment
Pontiac G6 – fuse box – rear compartment
Fuses Usage
1 Rear Quarter Windows (Retractable Hardtop Only)
2 Driver Seat Controls
3 Retractable Hardtop
4 Not Used
5 Emission 2, Canister Vent Solenoid
6 Park Lamps, Instrument Panel Dimming
7 Not Used
8 Not Used
9 Sliding Panel Roof
10 Sunroof Controls
11 Not Used
12 Retractable Hardtop Controller
13 Audio Amplifier
14 Heated Seat Controls
15 Not Used
16 Remote Keyless Entry System, XM Satellite Radio
17 Back-up Lamps
18 Not Used
19 Not Used
20 Cigarette Lighter, Auxiliary Power Outlet
21 Not Used
22 Trunk Release
23 Rear Defog
24 Not Used
25 Fuel Pump



Relays Usage
26 Rear Window Defogger
27 Park Lamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk Release
37 Fuel Pump
38 (Diode) Cargo Lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
