Pontiac Bonneville (1997 – 1999) – fuse box diagram

Pontiac Bonneville (1997 – 1999) – fuse box diagram

Year of production: 1997, 1998, 1999

Driver’s Side Fuse Block

The driver’s side fuse block is to the left of the steering wheel, under the instrument panel.

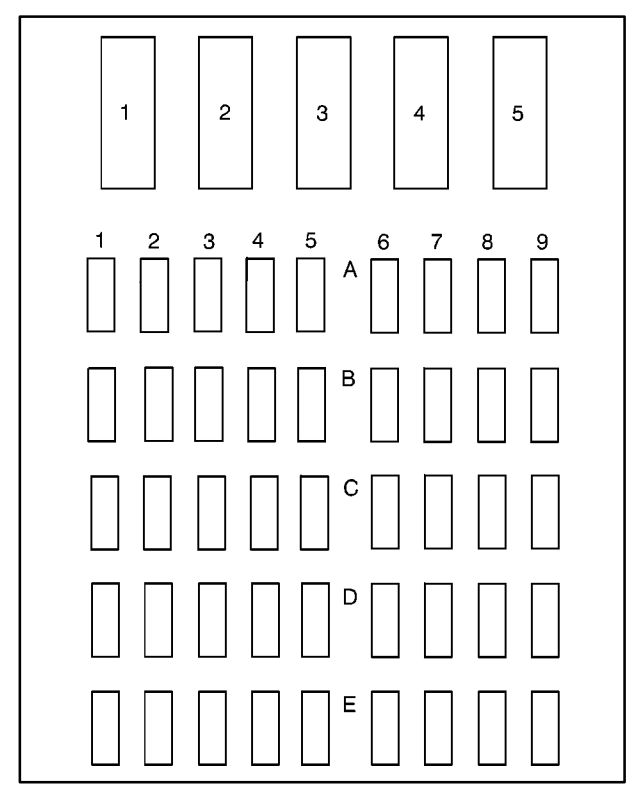

Pontiac Boneville - fuse box - driver's side
Pontiac Bonneville – fuse box – driver’s side
Fuse Usage
1 Circuit Breaker-Power Sunroof
2 Not Used
3 Circuit Breaker-Power Seats
4 Not Used
5 Not Used
1A PASS-Key
2A Spare
3A Not Used
4A Not Used
5A Automatic A/C Control, Base Cluster, Cruise Control
6A Courtesy Lamps, Power Mirrors
7A Not Used
8A Not Used
9A Not Used
1B Turn Signal, Back-Up Lamps, Brake-Transaxle Shift Interlock
2B Spare
3B Not Used
4B Not Used
5B Anti-Lock Brake System, Computer Command Ride
6B Brake and Hazard Lamps
7B Not Used
8B Interior Lighting
9B Cigarette Lighter
1C Air Bag System
2C Spare
3C Not Used
4C Not Used
5C Cooling Fans, Transaxle
6C Parking Lamps/Interior Lamps
7C Not Used
8C Not Used
9C (Battery), Radio, Cluster
1D Ignition (Run/Crank), Chime, Cluster
2D Spare
3D Heated Mirror
4D Not Used
5D Base A/C
6D Fog Lamps
7D Transaxle
8D Radio
9D Not Used
1E Not Used
2E Air Bag System, PASS-Key
3E Not Used
4E Not Used
5E Rear Defog
6E Not Used
7E Miscellaneous Engine Controls (Non-OBD II)
8E Wipers, Washer
9E Not Used

Passenger’s Side Fuse Block

Additional fuses are located in the relay center, on the passenger’s side, below the instrument panel.

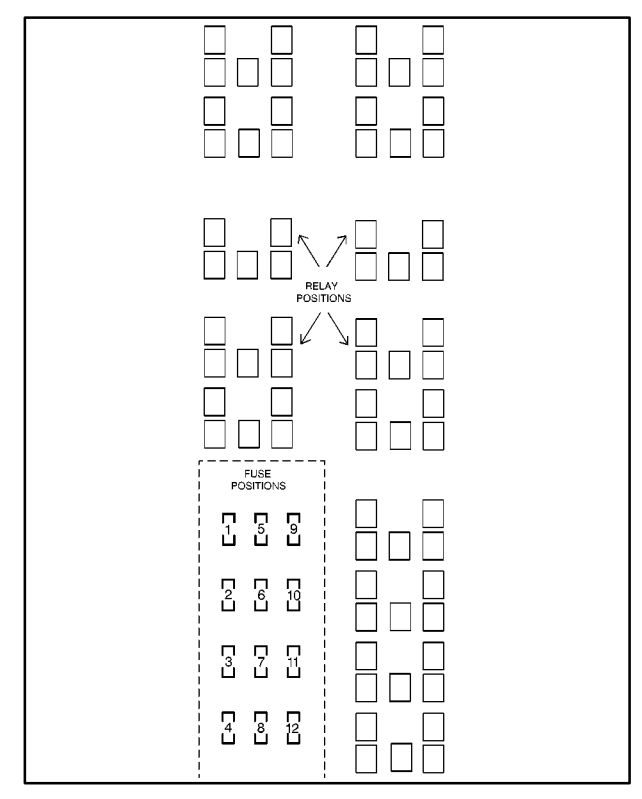

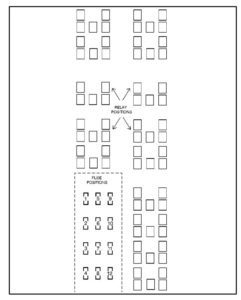

Pontiac Boneville - fuse box - right side
Pontiac Bonneville – fuse box – right side
Fuse Usage
1 Door Locks
2 Trunk Release, RAC
3 Horns
4 Not Used
5 Miscellaneous Engines Controls (OBD II)
6 Fuel Pump
7 Injectors
8 Powertrain Control Module
9 Not Used
10 Not Used
11 A/C Programmer
12 Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
