Plymouth Reliant (1981 – 1983) – fuse box diagram

Plymouth Reliant (1981 – 1983) – fuse box diagram

Year of production: 1981, 1982, 1983

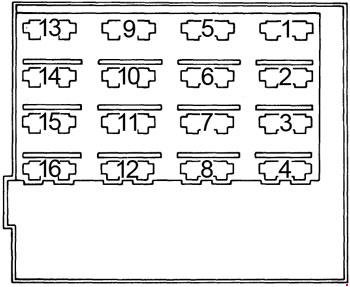

Fuse box

Plymouth Reliant - fuse box diagram
Plymouth Reliant – fuse box diagram

Protected Component
1 20 Hazard flasher
2 5 Speed control, defogger relay, door ajar indicator, low washer fluid indicator, low fuel indicator, cornering, trunk and tailgate ajar lights
3 30 Circuit Breaker: Power windows
4 25 Heater blower motor
30 Air conditioning blower motor
5 20 Parking, tail, license, side marker, clock, instrument cluster and radio lights
6 20 Stop, dome, map, trunk, cargo, vanity and ignition switch lights. Time delay relay and door courtesy lights
7 20 Glove box light, horns, horn relay, cigar lighter, clock, radio memory, liftgate ajar warning, key in/headlamp on warning
8 30 Circuit Breaker: Power door locks and seats
9 20 Right spotlight (fleet vehicles only)
10 20 Left spotlight (fleet vehicles only)
11 5 Brake warning, seat belt warning and low fuel sensor, engine warning and electronic voltage lights, fuel gauge, voltage limiter, voltmeter, temperature and oil gauge
12 20 Air conditioning radiator fan motor
13 3 Cluster, air conditioning and heater lights, console gear light, defogger, rear wiper/washer, radio lights and clock display dimming
14 6 Circuit Breaker: Deck lid release, liftgate release, rear wiper/washer and speaker relay
15 5 Radio, clock display and speaker relay sense
16 20 Back-up and turn signal lights, air conditioning clutch and idle stop solenoid, air conditioning fan relay coil

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
