Peugeot 407 (2006) – fuse box diagram

Peugeot 407 (2006) – fuse box diagram

Year of production: 2006

Fascia fuses

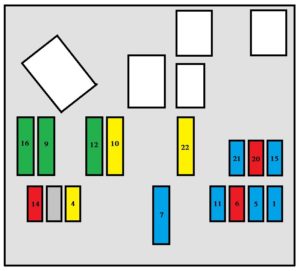

Peugeot 407 - fuse box - passenger compartment
Peugeot 407 – fuse box – passenger compartment
Fuse Ampere rating [A] Functions
1 15 Diagnostics socket, low current steering lock
4 20 Boot fusebox, trailer fusebox, steering wheel controls, audio equipment, alarm, navigation-telematics, multifunction display, automatic gearbox
5 15 Alarm siren, tyre under-inflation detection unit
6 10 Automatic gearbox electronics, clutch switch, electrochromatic mirror, courtesy mirror, map reading lights, diagnostic connector, steering wheel angle sensor, ESP dual function sensor, panoramic roof concealing shutter (407SW), sunroof (Saloon), front and rear courtesy lights
7 15 Not used
9 30 Rear one-touch electric windows
10 20 Front 12V accessories socket (100 W max.), lighter, glove box light, telematics (according to country)
11 15 Electric child lock, rear doors deadlocking
12 30 Front one-touch electric windows
14 10 Engine fusebox, boot fusebox, trailer fusebox (accessory), wipers relay, driver’s seat memory unit.
15 15 Instrument panel, air conditioning control panel, rain and brightness sensors, electric seats, air bags control unit, hands-free kit
16 30 Central locking / deadlocking
20 10 Not used
21 15 Not used
22 20 Not used
S1 PARC shunt



Fuse Ampere rating [A] Functions
G36 30 Right electric seat, audio Hi-Fi assembly
G37 15 Six-speed automatic gearbox supply
G38 30 Right and left heated seats
G39 30 Electric seat memory unit
G40 30 Left electric seat



Engine compartment fuses

Peugeot 407 – fuse box – engine compartment
Peugeot 407 – fuse box – engine compartment
Fuse Ampere rating [A] Functions
1 20 Engine management control unit
2 15 Horn
3 10 Front and rear wash-wipe
4 20 Headlamp wash
5 15 Fuel pump
6 10 Automatic gearbox control unit
7 10 Power steering control unit
8 20 Starter coil
9 10 Xenon bulb electronic supply, STOP switch, halogen headlamps height adjusters
10 30 Engine management actuators (ignition coil, solenoid valves, oxygen sensors)
11 40 Air conditioning blower or not used
12 30 Windscreen wipers
13 40 Built-in system interface supply (ignition positive)
14 30 Air pump



Boot fuses

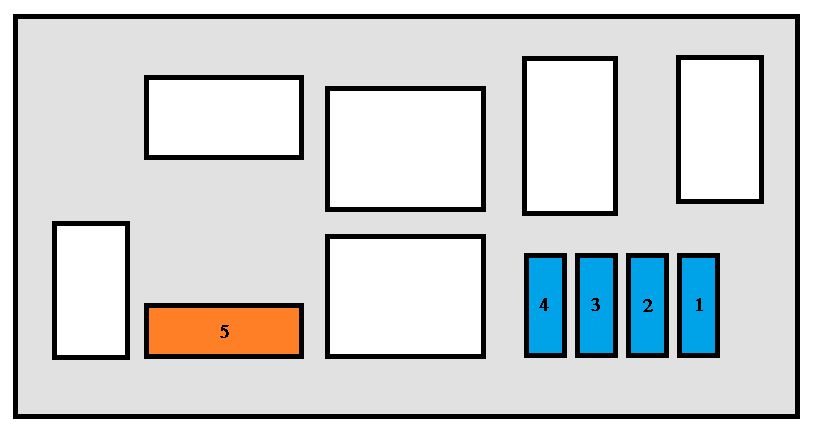

Peugeot 407 - fuse box - boot fuses
Peugeot 407 – fuse box – boot fuses
Fuse Ampere rating [A] Functions
1 15 Rear wiper
2 15 Fuel filler flap locking
3 15 Rear 12V accessories socket
4 15 Particle emission filter
5 40 Heated rear screen

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
