Peugeot 308 SW BL (2010) – fuse box diagram
Year of production: 2010
Dashboard fuses
The fusebox is located in the lower left of the dashboard.
| Fuse | Ampere rating [A] | Functions |
| F1 | 15 | Rear wiper |
| F2 | 30 | Locking and deadlocking earth |
| F3 | 5 | Airbags and pretensioners control unit |
| F4 | 10 | Clutch pedal and dual-function brake switches, electrochromatic rear view mirror, air conditioning, steering wheel angle sensor, automatic gearbox, switching and protection unit |
| F5 | 30 | Front one-touch electric windows, folding mirrors supply, panoramic sunroof blind |
| F6 | 30 | Rear one-touch electric windows, trailer fusebox |
| F7 | 5 | Front and rear courtesy lamps, map reading lamps, rear reading lampd, sun visor illumination, glove box illumination, torch |
| F8 | 20 | Audio equipment, audio/telephone, CD changer, multifunction screen, tyre under-infl ation detection |
| F9 | 30 | Front 12 V socket |
| F10 | 15 | Steering mounted controls, alarm siren, alarm control unit |
| F11 | 15 | Low current ignition switch |
| F12 | 15 | Instrument panel, seat belt and passenger’s front airbag warning lamps display, air conditioning, driver’s seat memory unit, 2nd row rear seat switches, driving school module |
| F13 | 5 | Engine fusebox, airbags, electronic gear control gearbox gear lever, trailer fusebox |
| F14 | 15 | Multifunction screen, amplifi er, Bluetooth system, rain/brightness sensor, parking sensors control unit. |
| F15 | 30 | Locking and deadlocking |
| F17 | 40 | Rear screen and door mirrors demist/defrost |
| SH | — | PARC shunt |
| Fuse | Ampere rating [A] | Functions |
| G36 | 30 | Driver and passenger heated seats |
| G37 | 5 | Driving position memory unit, lighting rheostat |
| G38 | 30 | Driver’s seat memory unit |
| G39 | 30 | Trailer fusebox supply |
| G40 | — | Not used |
Engine compartment fuses
The fusebox is placed in the engine compartment near the battery (left-hand side).
| Fuse | Ampere rating [A] | Functions |
| F1 | 20 | Engine control unit supply, injection pump and EGR electrovalves (2 litre HDI), injectors (2 litre HDI) |
| F2 | 15 | Horn |
| F3 | 10 | Front wash-wipe |
| F4 | 20 | Headlamp wash |
| F5 | 15 | Canister purge, turbine discharge and Turbo pressure regulation electrovalves (1.6 l THP 16V), oil vapour heater (1.6 l THP 16V), diesel heater (1.6 l HDI 16V) |
| F6 | 10 | Vehicle speed sensor, ABS/ESP control unit |
| F7 | 10 | Power steering control unit, automatic gearbox, engine coolant level detector |
| F8 | 25 | Starter motor control |
| F9 | 10 | Diagnostic socket, directional headlamps, air fl ow sensor (Diesel), particle emission fi lter pump (Diesel) |
| F10 | 30 | Engine control unit actuators (petrol: ignition coils, electrovalves, oxygen sensors, injectors, heaters, fuel pump, electronic thermostat) (Diesel: electrovalves, heaters) |
| F11 | 40 | Air conditioning blower |
| F12 | 30 | Windscreen wipers slow/fast speed |
| F13 | 40 | Built-in systems interface supply (ignition positive) |
| F14 | 30 | Air pump |
| F15 | 10 | Right-hand main beam headlamp |
| F16 | 10 | Left-hand main beam headlamp |
| F17 | 15 | Left-hand dipped headlamp |
| F18 | 15 | Right-hand dipped headlamp |
| F19 | 15 | Oil vapour heater (1.6 litre VTi 16V), purge canister electrovalve (1.6 litre VTi 16V), oxygen sensors (petrol), air cooling electrovalves (Diesel) |
| F20 | 10 | Electronic thermostat, variable timing electrovalves, Turbo pressure regulation electrovalve (Diesel), engine coolant level detector (Diesel) |
| F21 | 5 | Fan assembly relay supply, Valvetronic relay control (1.6 litre VTi 16V), Turbo cooling (1.6 litre THP 16V), air fl ow sensor (1.6 litre HDI) |

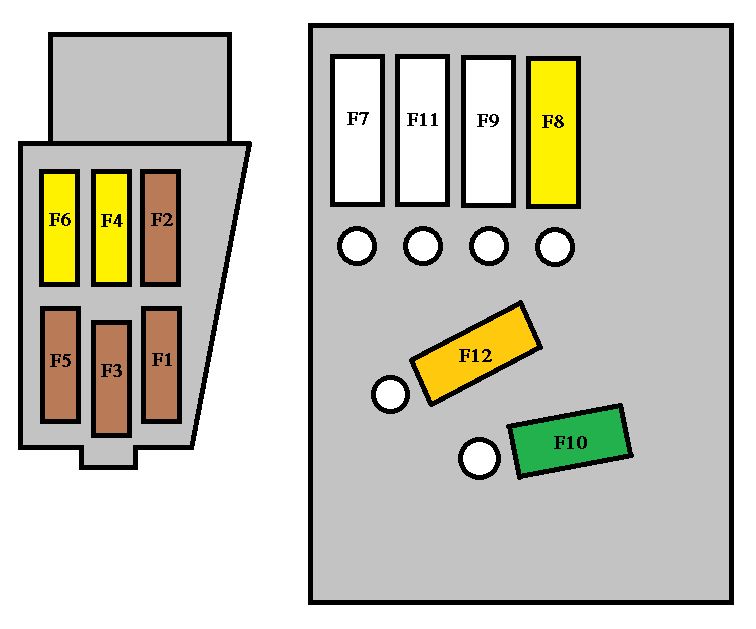

Table of mini and midi-fuses over the battery
| Fuse | Ampere rating [A] | Functions |
| F1 | — | Not used |
| F2 | 5 | Dual function brake switch |
| F3 | 5 | Battery charge unit |
| F4 | 25 | ABS/ESP electrovalves |
| F5 | — | Not used |
| F6 | 15 | Gearbox (electronic gear control or automatic) |
| F7* | 80 | Power steering electropump assembly |
| F8* | 60 | Fan assembly |
| F9* | 70/30 | Pre-heat unit (Diesel)/Valvetronic electric motor (1.6 litre THP 16V) |
| F10* | 40 | ABS/ESP electropump assembly |
| F11* | 100 | Switching and protection unit |
| F12* | 30 | Electronic gear control gearbox electropump assembly |
| * The midi-fuses and maxi-fuses provide additional protection for the electrical systems. | ||
Table of maxi-fuses
| Fuse | Ampere rating [A] | Functions |
| MF1* | Not used | |
| MF2* | 30 | Trailer fusebox |
| MF3* | 50 | Passenger compartment fuse box |
| MF4* | 80 | Built-in systems interface |
| MF5* | 50 | Built-in systems interface |
| MF6* | — | Not used |
| MF7* | 30 | Heated seats |
| MF8* | 20 | Headlamp wash |
| * The midi-fuses and maxi-fuses provide additional protection for the electrical systems. | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
