Peugeot 208 (from 2012) – fuse box diagram
Year of production: 2012, 2013, 2014, 2015, 2016

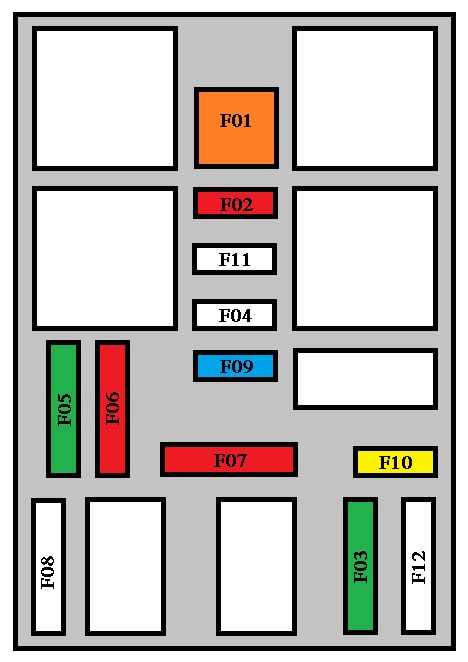

Fuses in the dashboard
The fusebox is placed in the lower dashboard (right-hand side).
| Fuse | Ampere rating [A] | Functions |
| F01 | 40 | Heated rear window |
| F02 | 10 | Heated door mirrors |
| F03 | 30 | Front one-touch windows |
| F04 | — | Not used |
| F05 | 30 | Rear one-touch windows |
| F06 | 10 | Folding door mirrors |
| F07 | 10 | Folding door mirrors |
| F08 | — | Not used |
| F09 | — | Not used |
| F10 | 20 | Hi-Fi aplifier |
| F11 | — | Not used |
| F12 | — | Not used |

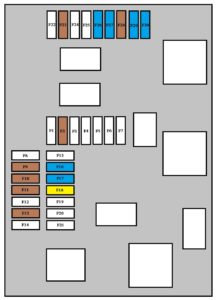

Fuses in the glove box
| Fuse | Ampere rating [A] | Functions |
| F02 | 5 | Door mirrors, headlamps, diagnostic socket |
| F09 | 5 | Alarm |
| F10 | 5 | Independent telematic unit, trailer interface |
| F11 | 5 | Electrochrome rear view mirror, additional heating |
| F13 | 5 | Hi-Fi amplifier, parking sensors |
| F16 | 15 | Front 12 V socket |
| F17 | 15 | Audio system, audio system (accessory) |
| F18 | 20 | Touch screen |
| F23 | 5 | Glove box lamp, courtesy mirror, map reading lamps |
| F26 | 15 | Horn |
| F27 | 15 | Screenwash pump |
| F28 | 5 | Anti-theft |
| F29 | 15 | Air conditioning compressor |
| F30 | 15 | Rear wiper |

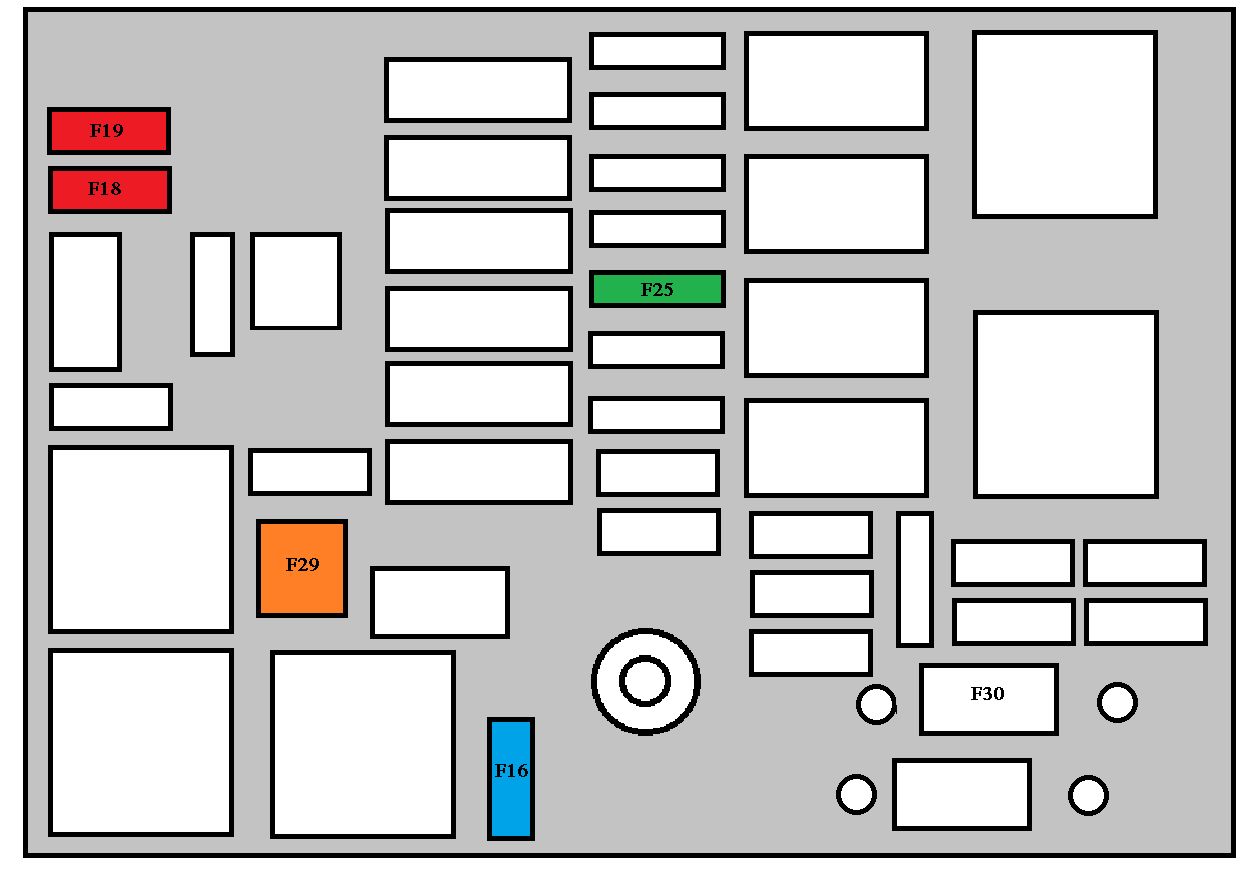

Fuses under the bonnet
The fusebox is placed in the engine compartment near the battery (left-hand side).
| Fuse | Ampere rating [A] | Functions |
| F16 | 15 | Front foglamps |
| F18 | 10 | Right hand main beam headlamp |
| F19 | 10 | Left hand main beam headlamp |
| F25 | 30 | Headlamp wash relay (accessory) |
| F29 | 40 | Front wiper motor |
| F30 | 80 | Pre-heater plugs (Diesel) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
