Year of production: 2014, 2015, 2016, 2017

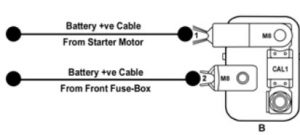

Battery mounted fuse box
| Fuse | Function | Ampere rating [A] |
| PF1 | STARTER MOTOR | CAL 1 |

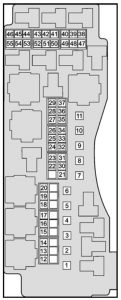

Engine compartment fuse and relay box
| Fuse | Function | Ampere rating [A] |
| 1 | INTERIOR F/B 2 IGNITION | 60 |
| 2 | ABS | 40 |
| 3 | GLOW PLUG | 60 |
| 4 | COOLING FAN FAST | 40 |
| 5 | EPAS | 60 |
| 6 | — | — |
| 7 | INTERIOR F/B 1 BATTERY | 60 |
| 8 | UNDER BONNET F/R BOX | 60 |
| 9 | — | — |
| 10 | IGNITION LOAD | 60 |
| 11 | — | — |
| 12 | COMPRESSOR | 10 |
| 13 | STARTER SOLENOID | 20 |
| 14 | ABS ECU | 25 |
| 15 | TCU | 15 |
| 16 | HORN HIGH /LOW TONE | 15 |
| 17 | FRONT FOG | 10 |
| 18 | EMS BATTERY | 10 |
| 19 | AMT HYD PUMP | 30 |
| 20 | FUEL PUMP | 20 |
| 21 | BRAKE LAMP | 10 |
| 22 | RELAY COIL | 5 |
| 23 | — | — |
| 24 | FRONT WIPER MOTOR | 20 |
| 25 | ABS | 5 |
| 26 | WASHER MOTOR | 10 |
| 27 | TCU | 10 |
| 28 | REVERSE & BRAKE LAMP | 10 |
| 29 | REAR WIPER | 10 |
| 38 | EMS ECU (SDE) | 20 |
| 39 | EMS ECU | 15 |
| 40 | EMS ECU (DIESEL) | 10 |
| EMS ECU (PETROL) | 20 | |
| 41 | — | — |
| 42 | HEAD LAMP LOW | 15 |
| 43 | EMS IGN | 10 |
| 44 | COOLING FAN SPEED | 20 |
| 45 | — | — |
| 46 | HEAD LAMP LOW | 15 |

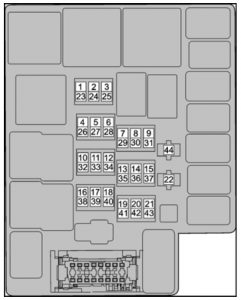

Cabin compartment fuse box
| Fuse | Function | Ampere rating [A] |
| 1 | RESTRAIN CONTROL MODULE | 10 |
| 2 | ACCESSORY | 10 |
| 3 | — | — |
| 4 | BCM | 15 |
| 5 | INTERIOR LAMP | 5 |
| 6 | MIRROR ADJUST MOTOR | 5 |
| 7 | BCM /POSITION LAMP | 15/5 |
| 8 | CLUSTER / OBD | 10 |
| 9 | BCM /POSITION & PARK LAMP | 15/5 |
| 10 | KEY IN AFTER MARKET | 5 |
| 11 | IMMO / EPAS | 5 |
| 12 | — | — |
| 13 | BLOWER MOTOR | 30 |
| 14 | CDL / ACCESSORY | 15 |
| 15 | POWER SOCKET 1 | 15 |
| 16 | RELAY COILS | 5 |
| 17 | — | — |
| 18 | HVAC | 10 |
| 19 | HRW / FLASHER | 25/10 |
| 20 | IGN SUPPLY | 10 |
| 21 | — | — |
| 22 | TRANSIT/INFOTAINMENT | 15 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
