Peugeot 205 – fuse box diagram

Peugeot 205 – fuse box diagram

Year of production:

Fuse box

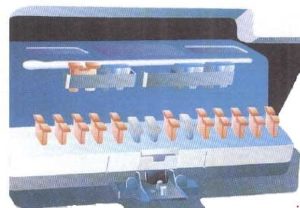

The fuse box is located under the fascia on the left-hand side of the vehicle.

Peugeot 205 - fuse box diagram
Peugeot 205 – fuse box diagram

A
Functions
1 10 Reverse lamp; tachometer*;
Dim lamps*;
Fuel gauge;
Water in fuel sensor (diesel);
Warning-lamps for: battery charge, water temperature, oil pressure, coolant level, brakes, choke; water in fuel (diesel)
2 25 Direction indicators;
Fuel gauge;
Seat heating*;
Additional heater/ventilation pump;
Gauges*;
Oil temperature;
Coolant temperature;
Oil pressure;
Heater/ventilation;
Air conditioning;
Warning lamps; battery charge, water in fuel, coolant temperature, oil pressure, coolant level, brakes, choke, ABS
3 25 Map reading lamp;
Brake lights;
Windscreen wipe/wash, front and rear;
Tachometer*;
Headlamp wash*;
Car radio (+ accessories);
Glovebox*;
Relay – window lift mechanism*;
Relay – rear screen demist;
Time-lag relay – interior lighting*
4 15 Spot lamps*
5 10 Hazard lamps
6 Not in use
7 25 Clock;
Interior lighting;
Boot lighting*;
Centralised lock* car radio (+ permanent);
Power supply to towbar;
Supply relay – window lift mechanism
8 30 Horn;
Rear screen demist;
Cigar lighter
9 25 Front electric windows*
10 5 Rear fog lamp
11 5 Rear side lamps-left;
Licence plate lamp
12 5 Rear side lamp – right
13 5 Fascia panel lighting;
Front side lamps
14 15 Petrol feed pump*
* According to model or country
Peugeot 205 - fuse box diagram
Peugeot 205 – fuse box diagram

A set of fuses in the engine compartment serves protection of the following parts:
1 fuse, 30A – ABS* anti-lock system supply*
1 fuse, 30A – Engine fan
1 fuse, 10A – Lambda probe*
*According to model

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
