Peugeot 106 – fuse box diagram
Year of production:
Fuses in the engine compartment

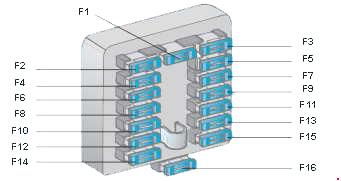

Peugeot 106 – fuse box diagram – engine compartment
№ A Functions
1
–
Not used
2
30
Anti-lock braking system
3
25
Engine cooling
4
20
Anti-lock braking system
5
25
Fan unit
6
20
Additional driving lamps
7
–
Not used
8
–
Not used
9
10
Fuel pump
10
–
Not used
11
10
Oxygen sensor
12
10
Left-hand main beam
13
10
Right-hand main beam
14
10
Left-hand dipped beam
15
10
Right-hand dipped beam
16
30
Pulsair pump
Peugeot 106 – fuse box diagram – engine compartment
№ A Functions
MF1
20
Lighting switch
MF2
80
Ignition supply (starter +ve)
MF3
40
Ignition supply (ignition controlled +ve)
MF4
40
Battery +ve feed to 13-fuse box
Fuses in the dashboard

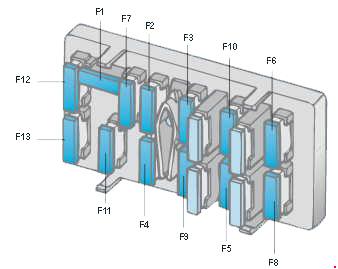

Peugeot 106 – fuse box diagram – dashboard
№ A Functions
1
–
Not used
2
25
Heater blower
3
25
Heated rear screen – air conditioning – pressure switch – heated seats
4
25
Radio – map reading light
5
30
Heated rear screen – horn – lighter + heated mirrors
6
10
Direction indicators / hazard warning lights
7
10
Engine cooling – electronic immobiliser – coolant temperature control unit – instrumentpanel – power steering – reversing lights
8
20
Central locking – electronic immobiliser – interior lighting – boot lighting -coolant temperature control unit – instrument panel – radio – clock
9
30
Electric windows – hazard warning lights – electric mirrors – brake lights – front and rearwipers – instrument pane
10
20
Front electric windows
11
5
Rear fog light + instrument panel lights
12
5
Left tail-light – front sidelights – instrument panel lighting (rheostat) + headlamp heightadjustment
13
5
Switch lighting – radio panel lighting – number plate lighting – right tail light
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
