Peugeot 1007 (2007 – 2009) – fuse box diagram

Peugeot 1007 (2007 – 2009) – fuse box diagram

Year of production: 2007, 2008, 2009

Fuse box in passenger compartment

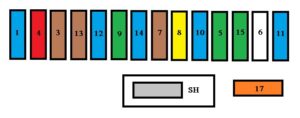

Peugeot 1007 - fuse box - passenger compartment
Peugeot 1007 – fuse box – passenger compartment
Fuse Ampere rating [A] Functions
1 15 Rear wiper
3 5 Air bags and pre-tensioners control unit
4 10 Diagnostic socket – Clutch switch – Steering wheel angle sensor – Particle emission fi lter pump
5 30 Electric windows – Sunroof
6 Not used
7 5 Courtesy light – Glove box lighting
8 20 Tyre under-infl ation detection control unit – Electric mirror folding – Alarm siren – Multifunction display – Alarm control unit – Audio equipment – Audio/telephone
9 30 Audio equipment – Lighter/12 V socket (100 W max)
10 15 Steering wheel controls
11 15 Diagnostic socket – Low current ignition switch – Motorised strikers
12 15 Air bags and pre-tensioners control unit – Rain/brightness sensor
13 5 ABS relay – Speed sensor – Engine Fuse Box – “2 Tronic” gear lever – Brake switch
14 15 Parking assistance control unit – “Sesame” doors control unit and switches – Instrument panel – Seat belt warning lights bar – Air conditioning control panel – Headlamp adjustment – Hands-free kit.
15 30 Locking – Deadlocking – Unlocking
17 40 Rear screen and exterior mirrors demisting
SH PARC shunt

Maxi fuses

Fuse Fuse rating [A] Functions
FH1 Not used
FH2 40 Trailer Fuse Box
FH3 20 Heated seats
FH4 20 Audio amplifier
FH5 5 “Sesame” doors control unit

Engine compartment fuse box

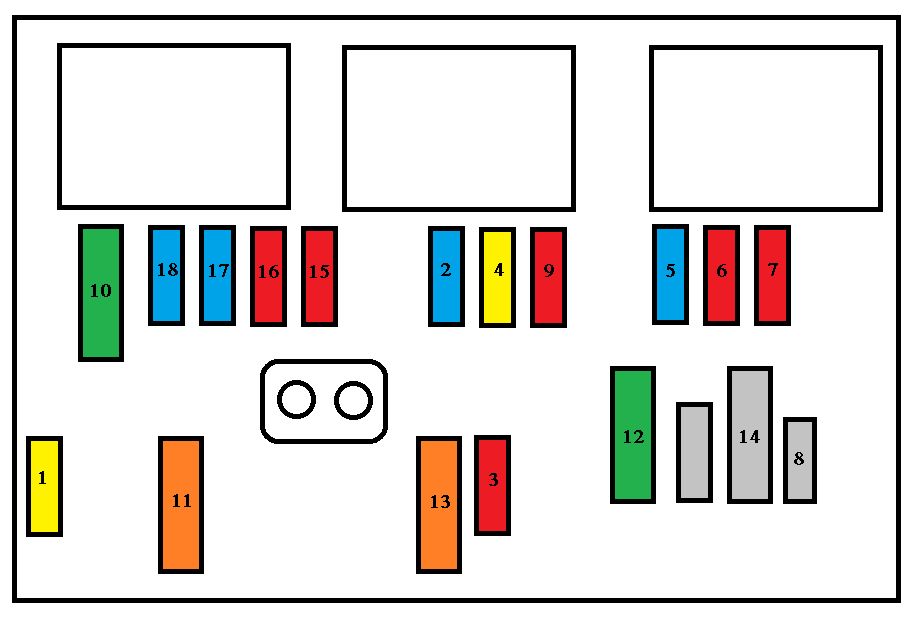

Peugeot 1007 - fuse box -engine compartment
Peugeot 1007 – fuse box -engine compartment
Fuse Ampere rating [A] Functions
1 20 Engine control unit supply and fan assembly control – Engine control unit main relay – Injection control unit (Diesel) – Injection pump (Diesel) – Air heating solenoid valves (Diesel) – Air fl ow sensor (Diesel)
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Fuel pump (petrol)
6 10 Power steering control unit – Water in diesel sensor – Vehicle speed sensor
7 10 Switching and protection unit (Diesel) – Engine coolant level detector (Diesel)
8 25 Starter
9 10 ABS/ESP control unit – ABS cut-off relay – Brake switch
10 30 Engine control unit actuators (petrol: ignition coils, oxygen sensors, injectors, purge canister and variable timing solenoid valves, controlled thermostat) (Diesel: injection control unit, air fl ow sensor, injection pump, diesel high pressure regulator, EGR and Turbo pressure regulation solenoid valves) – Blow-by heaters – Diesel heater
11 40 Air blowers
12 30 Windscreen wipers (low/high speed)
13 40 (ignition positive) Built-In Systems Interface
14 Not used
15 10 Right main beam headlamp
16 10 Left main beam headlamp
17 15 Left dipped headlamp
18 15 Right dipped headlamp

Maxi fuses

Fuse Ampere rating [A] Functions
MF1 50 Fan assembly
MF2 30 ABS/ESP control unit
MF3 30 ABS/ESP control unit
MF4 60 Built-in Systems Interface supply
MF5 60 Built-in Systems Interface supply
MF6 30 “2 Tronic” gearbox control unit
MF7 80 Passenger compartment fuse box – “Sesame” doors control unit
MF8 80 Electric power steering

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
