Opel Meriva B (2012 – 2016) – fuse box diagram

Opel Meriva B (2012 – 2016) – fuse box diagram

Years: 2012, 2013, 2014, 2015, 2016

Engine compartment fuse box

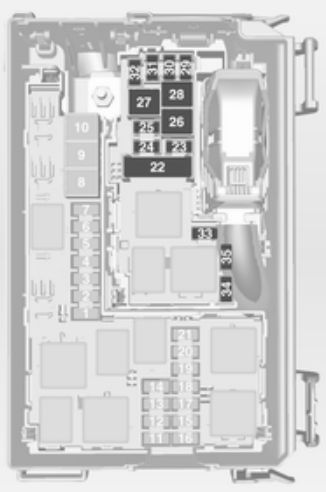

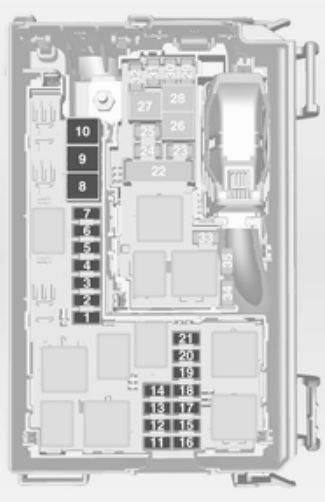

Opel Meriva B - fuse box - engine compartment
Opel Meriva B – fuse box – engine compartment
Opel Meriva B - fuse box - engine compartment
Opel Meriva B – fuse box – engine compartment

The fuse box is in the front left of the engine compartment.

Number Circuit
1 Starter
2
3 Fuel filter, cooling
4 Horn
5 Terminal 30
6 Engine control module, transmission control unit
7 Fog light
8 Engine cooling
9 Engine cooling
10 Vacuum pump
11 Ignition, preheating
12 Headlamp levelling
13 Air conditioning system, terminal 15
14 Transmission control unit
15 High beam right
16 High beam left
17 Engine control module
18 Engine control module, terminal 15
19 Airbag
20 Engine control module
21 Engine control module, terminal 87
22 Electrical parking brake
23 Tyre repair kit
24 Fuel pump
25 ABS
26 Heated rear window
27 ABS
28 Interior fan
29 Cigarette lighter
30 Air conditioning system
31 Front power window, left
32 Front power window, right
33 Mirror heating
34 ABS
35 Airbag

Instrument panel fuse box

Opel Meriva B - fuse box - intrument panel
Opel Meriva B – fuse box – intrument panel

The fuse box is behind the storage compartment in the instrument panel. Open compartment, compress the locking tabs, fold compartment down and remove.

In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox, pull cover upwards and remove.

Number Circuit
1 Radio
2 Display, instrument, telephone
3 Radio
4 Ignition switch, immobiliser
5 Windscreen washer, rear screen washer
6 Central locking system, tailgate
7 Central locking system
8 Display, instrument, telephone
9 Heated steering wheel
10 Rear left door unlocking
11 Rear right door unlocking
12 Courtesy light
13 Rain sensor, interior mirror, outside mirrors
14

Load compartment fuse box

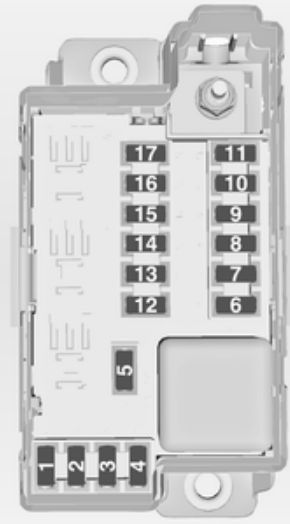

Opel Meriva B - fuse box - load compartment
Opel Meriva B – fuse box – load compartment

The fuse box is on the left side of the load compartment behind a cover. Remove the cover.

Disengage the four retaining lugs and remove the cover.

Number Circuit
1 Adaptive forward lighting
2
3
4
5
6 Rear power window, right
7 Adaptive forward lighting
8 Trailer module, Trailer socket
9 Seat, lumbar support, left
10 Rear power window, left
11 Park assist
12 Electrical sunblind
13
14 Heated front seats
15 Trailer module
16 Seat, lumbar support, right
17

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
