Oldsmobile Aurora (1999) – fuse box diagram

19 August 2019 admin Aurora, Oldsmobile 0

Oldsmobile Aurora (1999) – fuse box diagram

Year of production: 1999

Instrument Panel Fuse Block

This is located on the left side of the instrument panel.

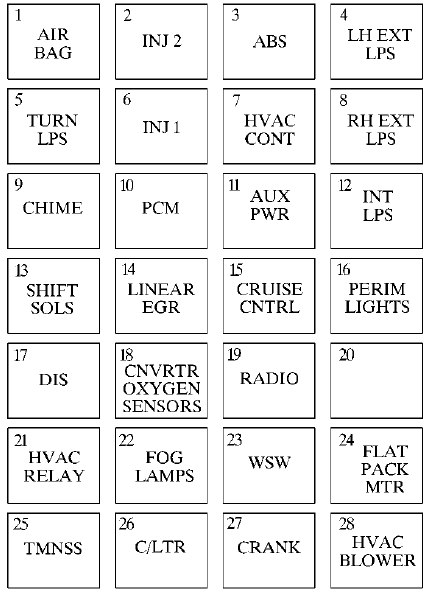

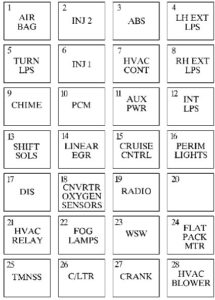

Oldsmobile Aurora - fuse box diagram - instrument panel
Oldsmobile Aurora – fuse box diagram – instrument panel
Position Circuitry
1 Supplemental Inflatable Restraint (Air Bag)
2 Injectors
3 Anti-Lock Brake System
4 Left Exterior Lamps
5 Turn Signal Lamps
6 Injectors
7 Climate Controls
8 Right Exterior Lamps
9 Chime (Ignition I), Memory Set
10 Powertrain Control Module, VATS PASS-Key@II
11 Auxiliary Power
12 Interior Lamps
13 Shift Sols
14 Linear EGR
15 Cruise Control
16 Perimeter Lights
17 Driver Information Center
18 Converter Oxygen Sensors
19 Radio
20 Open
21 Climate Control Relay
22 Fog Lamps
23 Windshield Wipers
24 Flat Pack Motor
25 TMNSS
26 Cigarette Lighter
27 Crank, Air Bag Module
28 Climate Control Blower

Rear Compartment Driver Fuse Block

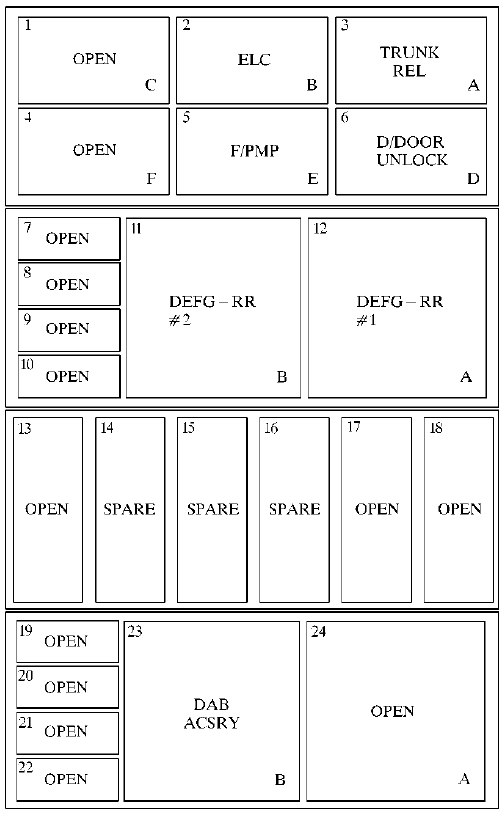

Oldsmobile Aurora - fuse box diagram - rear compartment driver side fuse block
Oldsmobile Aurora – fuse box diagram – rear compartment driver side fuse block
Position Circuitry
1 Open
2 Electronic Level Control Relay
3 Trunk Release Relay
4 Open
5 Fuel Pump Relay
6 Driver Door Unlock Relay
7 Open
8 Open
9 Open
10 Open
11 Rear Defogger Relay (Lower Zone)
12 Rear Defogger Relay (Upper Zone)
13 Open
14 Spare
15 Spare
16 Spare
17 Open
18 Open
19 Open
20 Open
21 Open
22 Open
23 Direct Accessory Power — Accessory Relay
24 Open

Rear Compartment Passenger Fuse Block

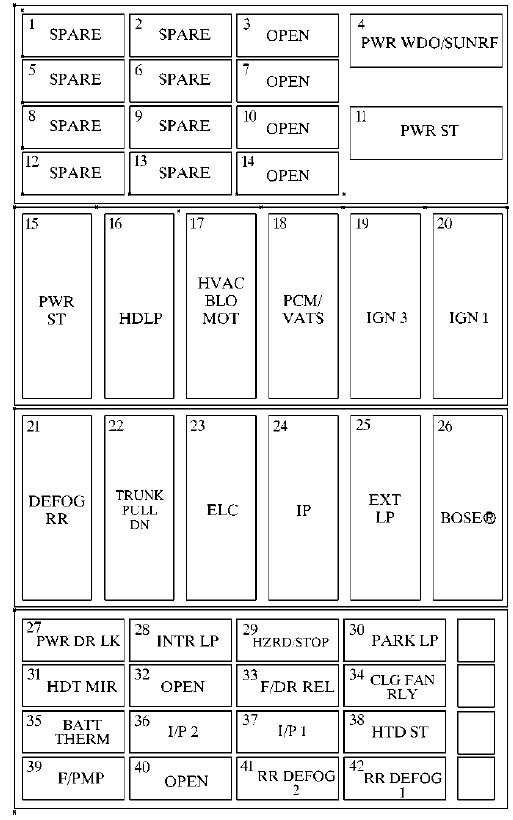

Oldsmobile Aurora - fuse box diagram  - rear compartment passenger side fuse block
Oldsmobile Aurora – fuse box diagram  – rear compartment passenger side fuse block
Position Circitry
1 Spare
2 Spare
3 Open
4 Breaker — Power Window, Sunroof
5 Spare
6 Spare
7 Open
8 Spare
9 Spare
10 Open
11 Breaker — Power Seat
12 Spare
13 Spare
14 Open
15 Power Seat
16 Breaker — Headlamps
17 HVAC Blower Motor
18 Powertrain Control Module, PASS-Key II
19 Ignition 3
20 Ignition 1
21 Rear Defogger
22 Trunk Pull Down
23 Electronic Level Control
24 Instrument Panel
25 Exterior Lamps
26 Base@ Stereo (Option)
27 Power Door Locks
28 Interior Lamps
29 Hazard Lamps, Stoplamps
30 Parking Lamps
31 Heated Outside Mirror
32 Open
33 Fuel Door Release
34 Cooling Fan Relay
35 Battery Thermistor
36 Instrument Panel — Power Antenna, Remote CD Changer, Radio Chassis
37 Instrument Panel — Remote Accessory Power Module, Oil Level Indicator, ALDL
38 Heated Seats
39 Fuel Pump
40 Open
41 Rear Defog 2
42 Rear Defog 1

Engine compartment fuse block

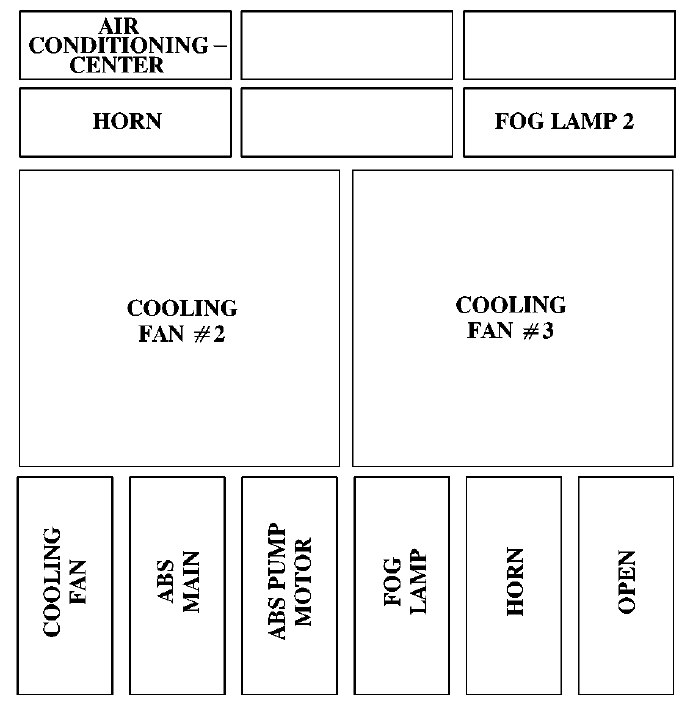

Oldsmobile Aurora - fuse box diagram - engine compartment
Oldsmobile Aurora – fuse box diagram – engine compartment
Position Circuitry
1 Air Conditioning Center
2 Open
3 Open
4 Horn
5 Open
6 Fog Lamp 2
7 Cooling Fan #2
8 Cooling Fan #3
9 Cooling Fan
10 ABS Main
11 ABS Pump Motor
12 Fog Lamp
13 Horn
14 Open

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
