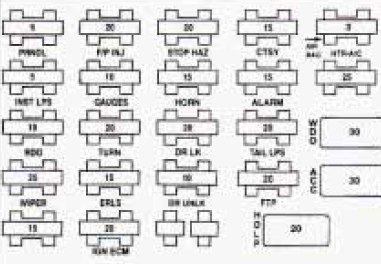

Oldsmobile Achieva (1994) – fuse box diagram
Year of production: 1994
Fuse
| Fuse | Ampere rating [A] | Circuitry |
| PRNDL | 5 | Back-up Lights, Electronic PRNDL (automatic transaxle |
| F/P INJ | 20 | Fuel Pump, Fuel Injectors |
| STOP HAZ | 20 | Hazard/Stop Lights |
| CTSY | 15 | Power Door Locks, Power Mirrors, Cigar Lighter |
| AIR BAG | 5 | Supplemental Inflatable Restraint |
| INST LPS | 5 | Instrument Panel Lights |
| GAUGES | 10 | Rear Window DefoggerG, auges, Warning Lights |
| HORN | 15 | Horn |
| ALARM | 15 | Chime, Interior Lights, Automatic Door Locks, Remote Lock Control |
| HTR-A/C | 25 | Heater, Air Conditioning, Anti-Lock Brakes (ABS), Daytime Running Lights (DRL (Canada) |
| RDO | 10 | Radio, Cruise Control |
| TURN | 20 | Turn Signals |
| DR LK | 20 | Automatic Door Locks |
| TAIL LPS | 20 | Fog Lights, Tail Lights, Marker Lights, License Light |
| WDO | 30 | Power Windows, Sunroof (Circuit Breaker |
| WIPER | 25 | Windshield Wiper/Washer |
| ERLS | 15 | Engine Controls, Back-up Lights |
| DR UNLK | 10 | Automatic Door Unlock (Remove to Disable) |
| FTP | 20 | Flash-to-Pass (U.S.) |
| ACC | 30 | Rear Window Antenna, Power Seats, Rear Window Defogger (Circuit Breaker) |
| AIR BAG | 15 | Supplemental Inflatable Restraint |
| IGN ECM | 20 | Engine Control Module, Ignition System |
| HDLP | 20 | Headlights, DRL (Canada) (Circuit Breaker |
Oldsmobile Achieva (1994) - fuse box diagram
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
